Heated Glass Element
>>
Heated Glass Element Switch
Heated Glass Element Switch

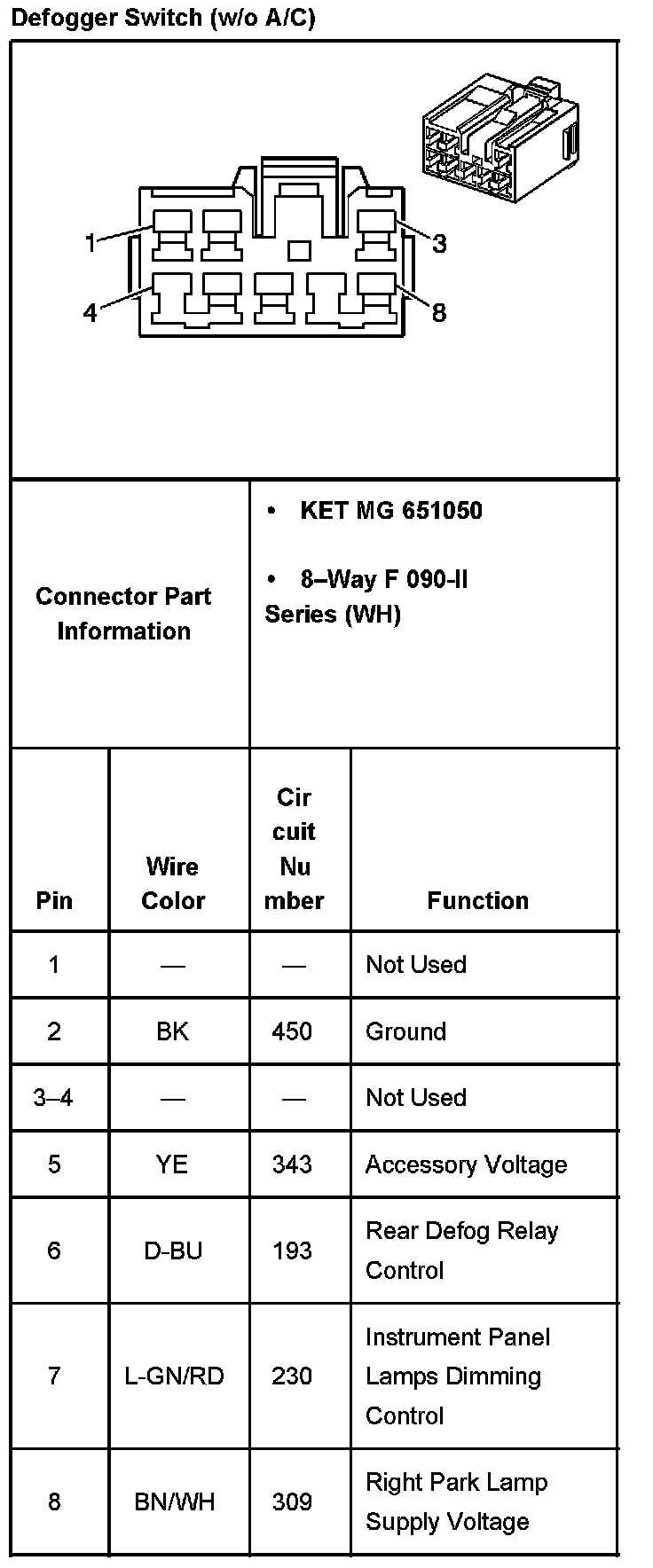

Defog Switch (w/0 A/C):
