Automatic Transmission Components

Automatic Transmission Components

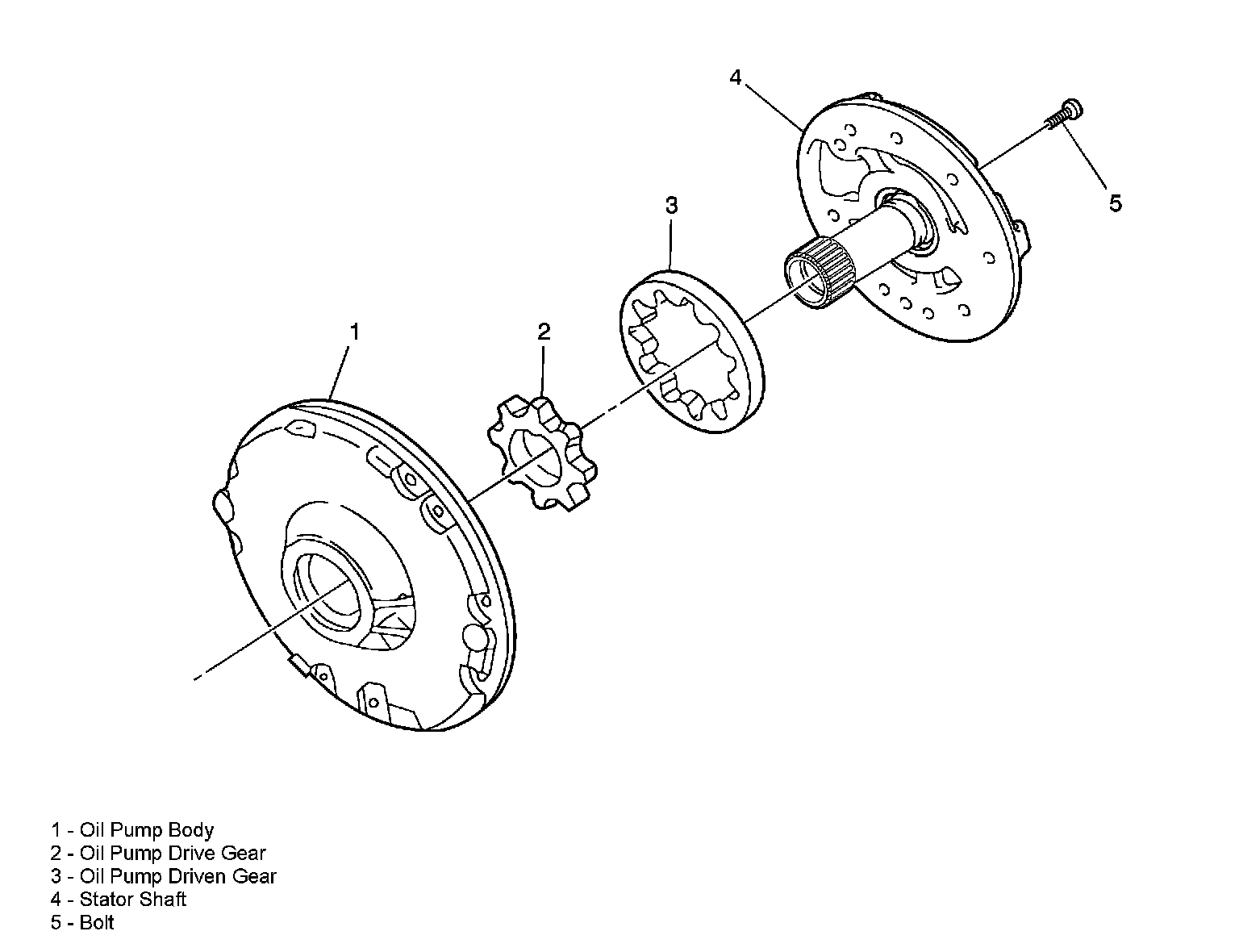

Oil Pump

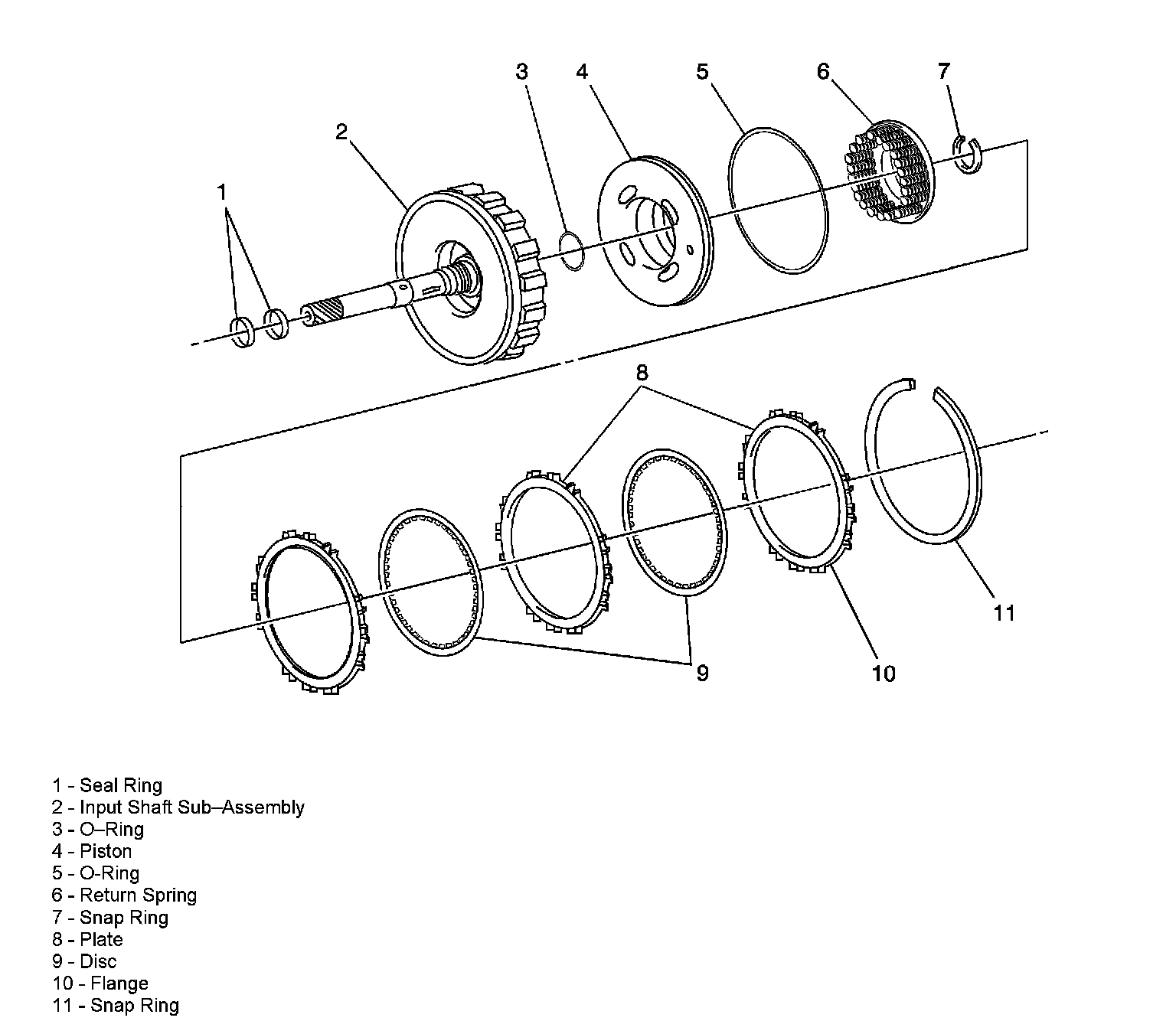

Direct Clutch

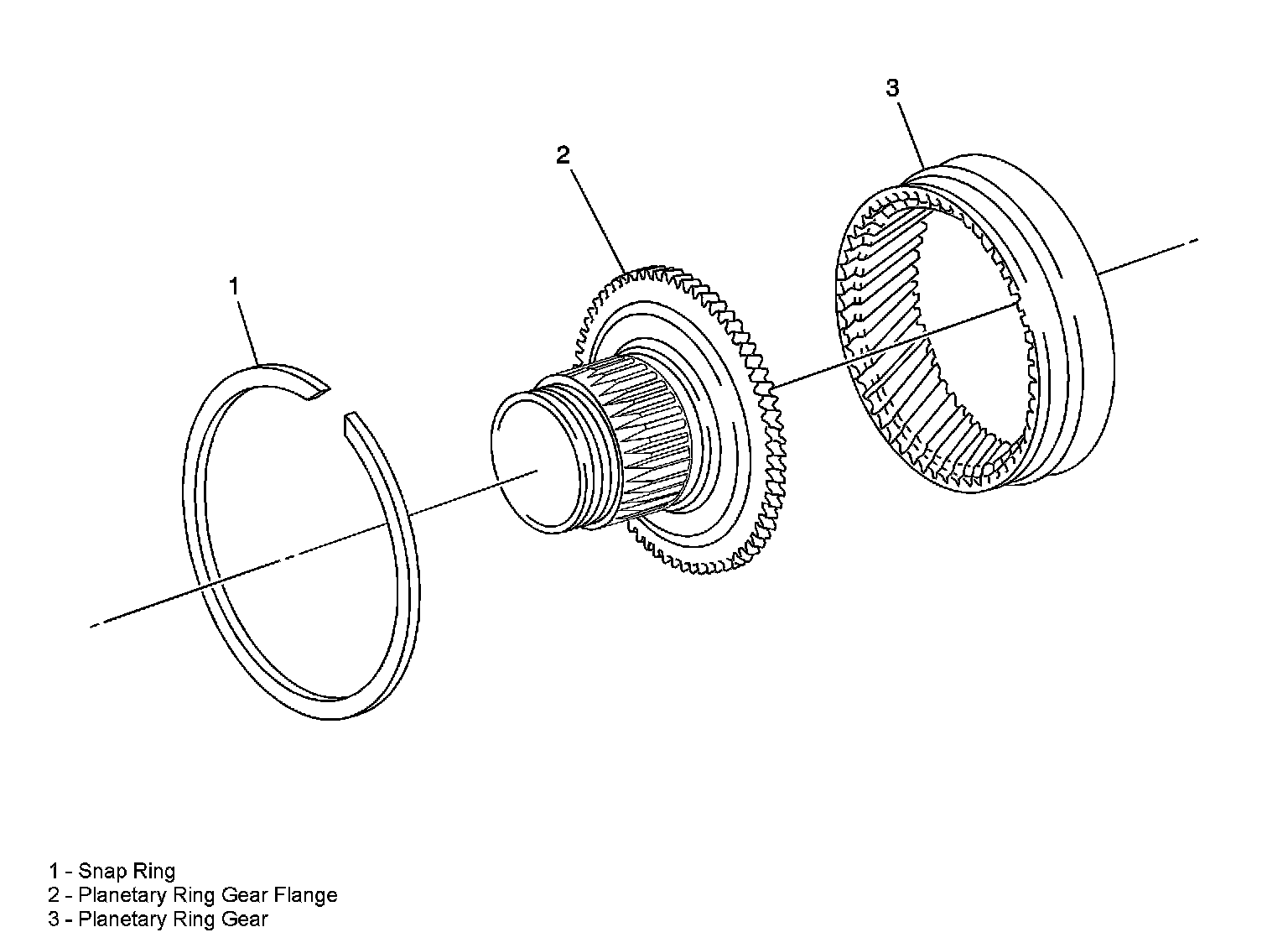

Planetary Ring Gear

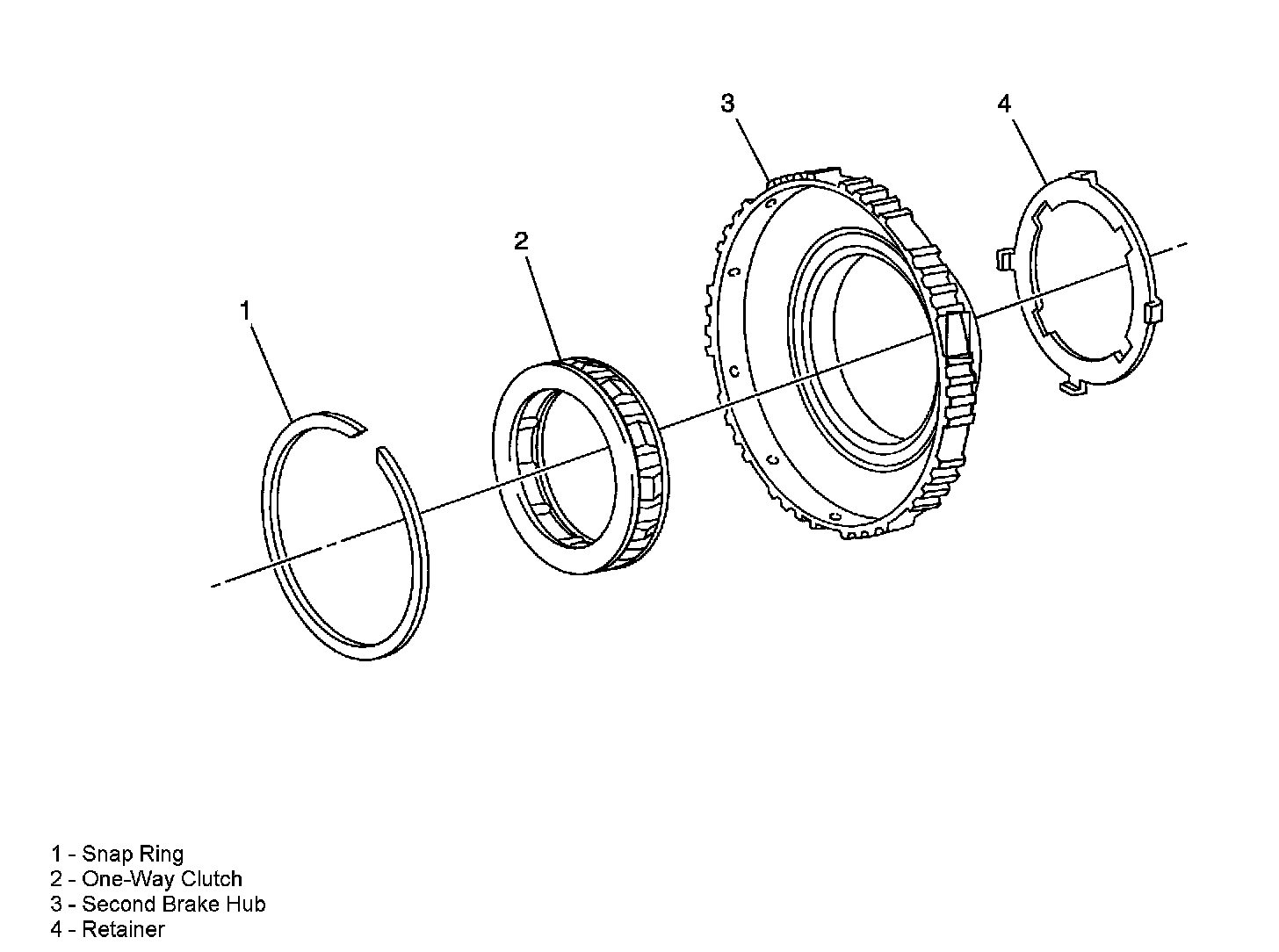

One-Way Clutch

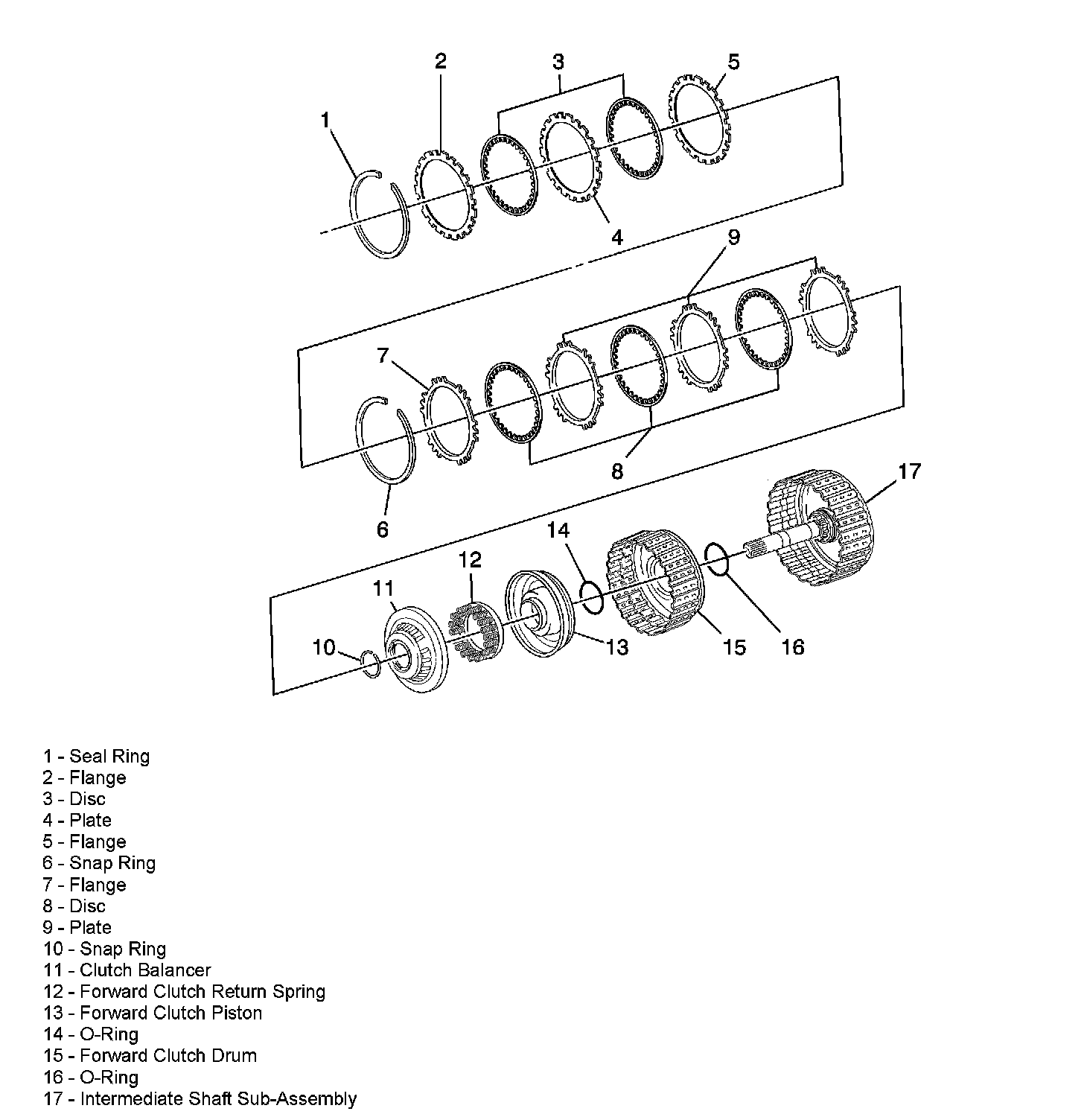

Forward and Reverse Clutch

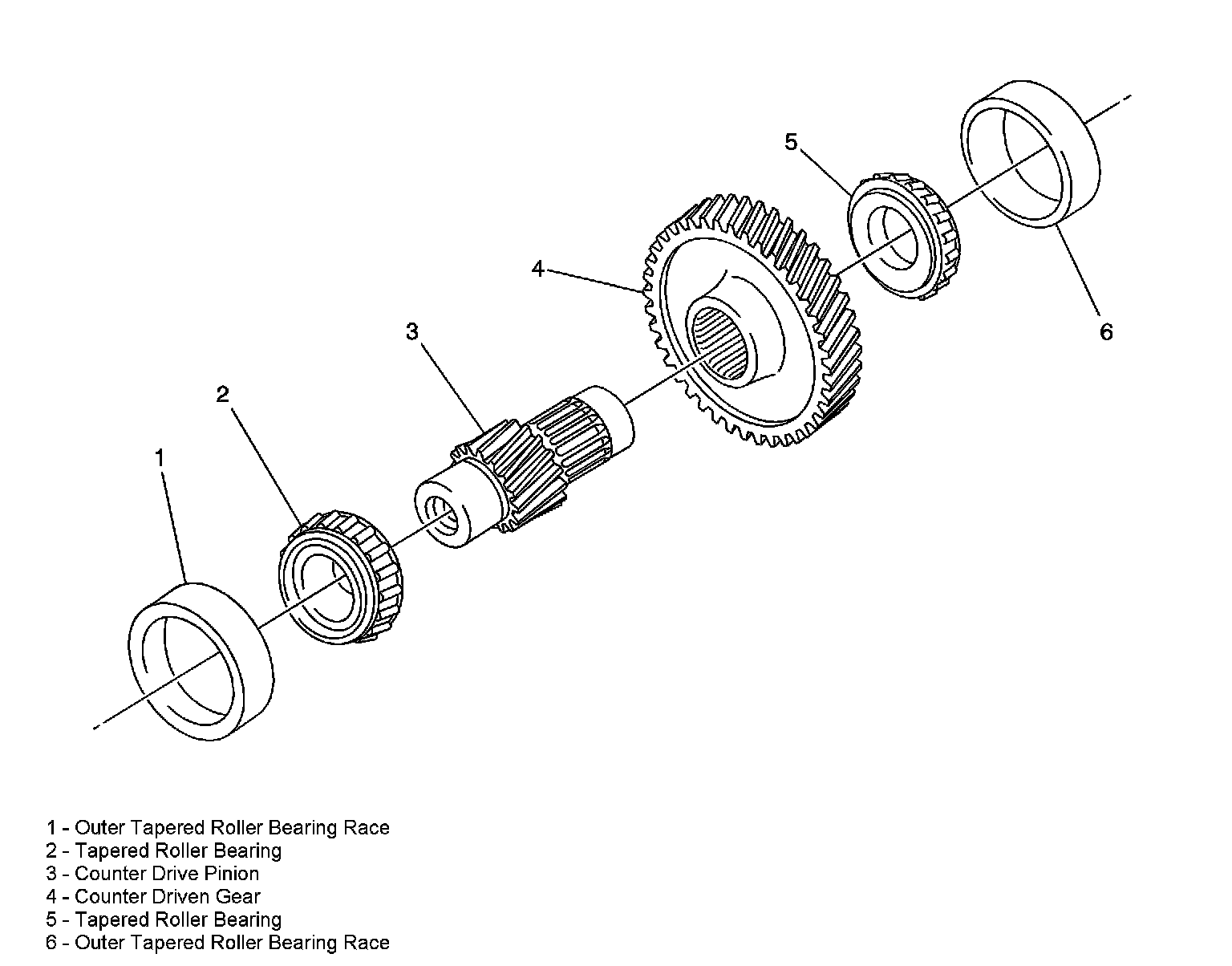

Counter Driven Gear

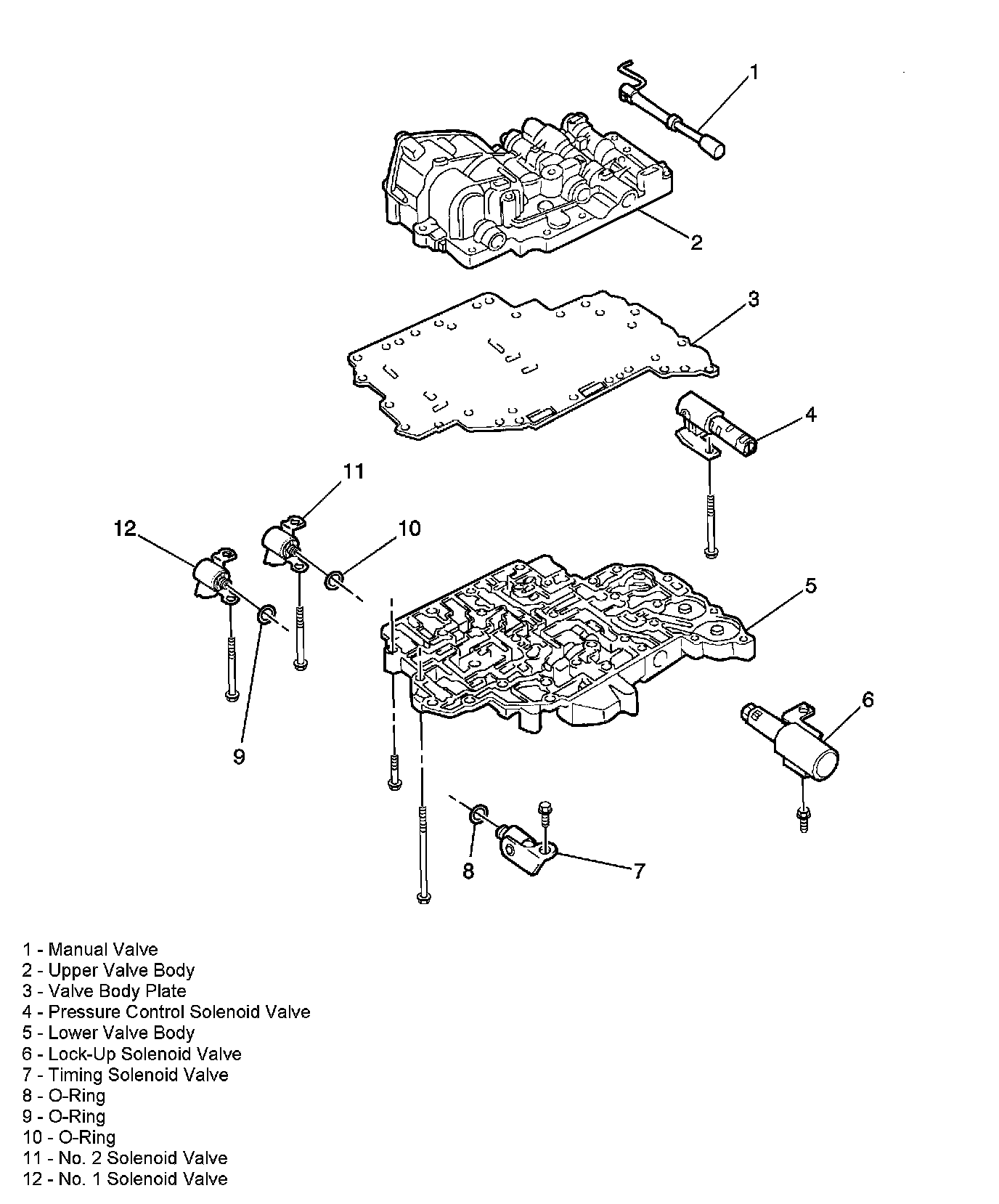

Valve Body

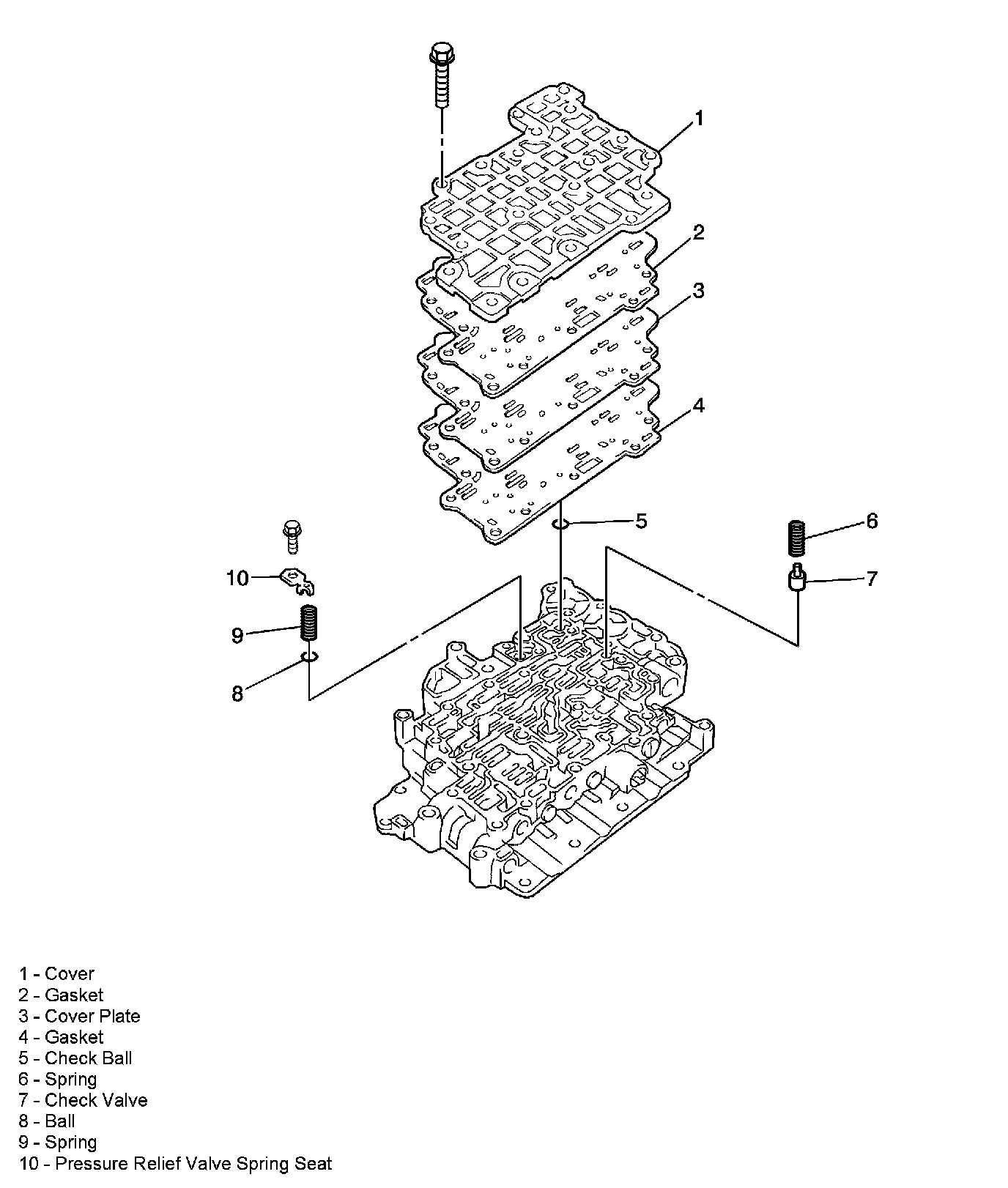

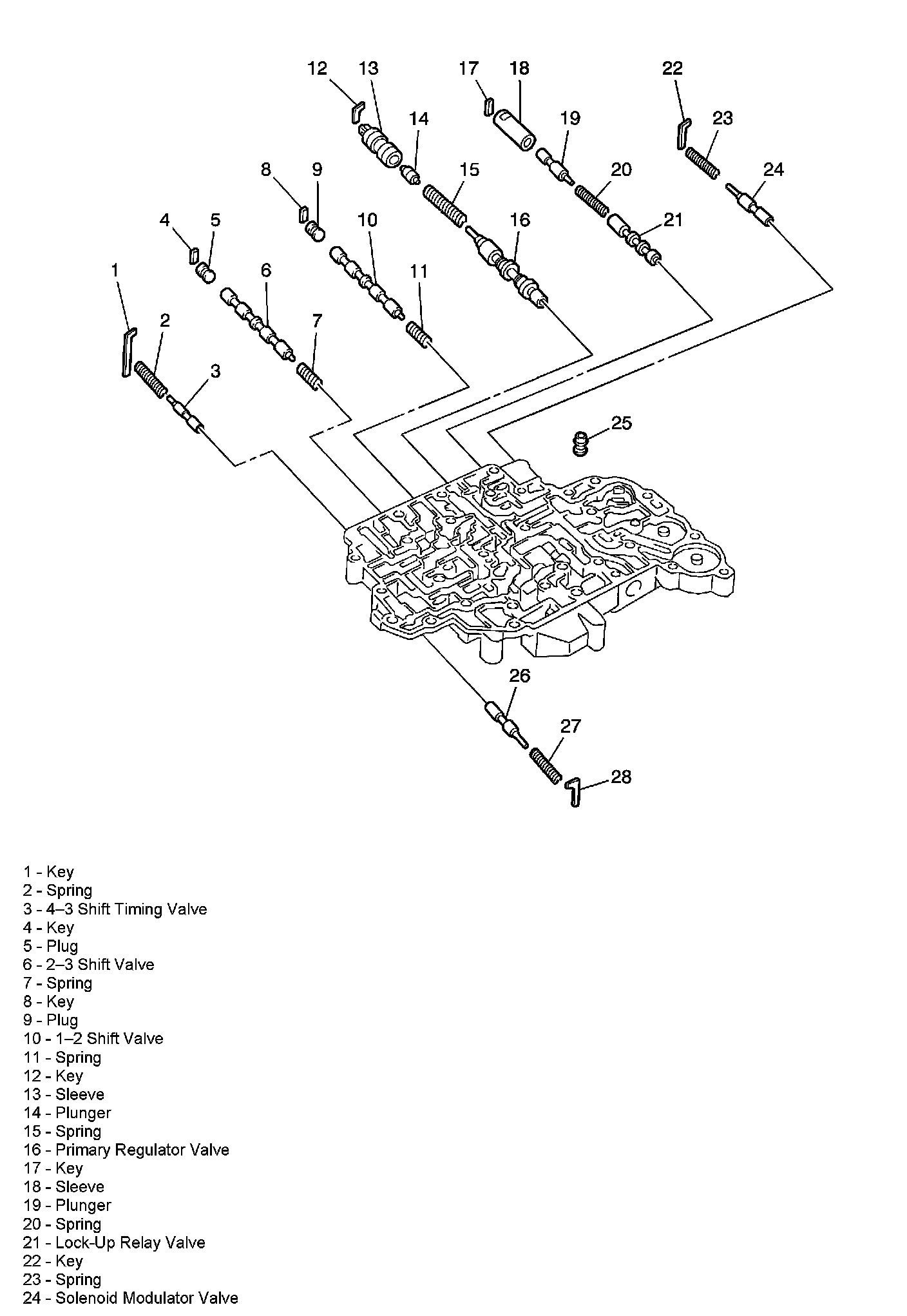

Upper Valve Body

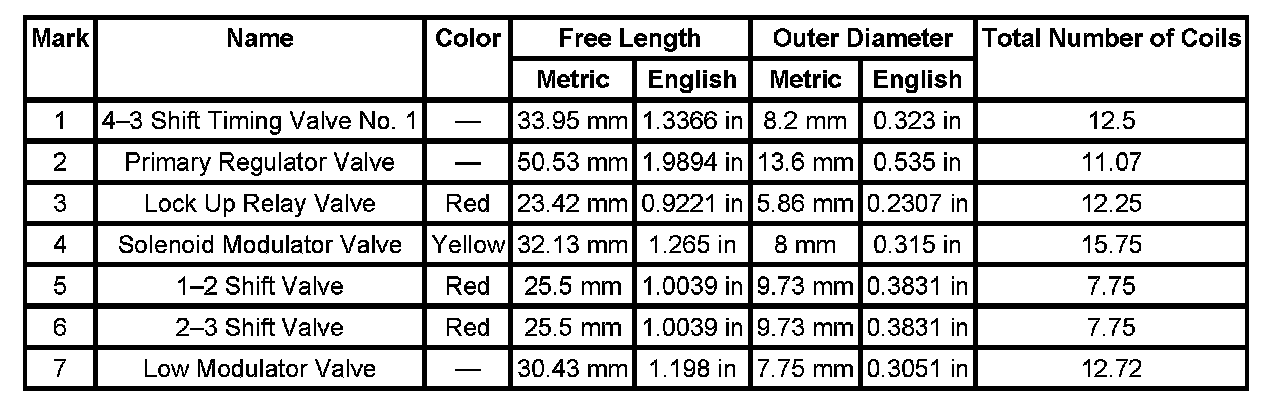

During reassembly, please refer to the spring specifications below to help you to discriminate between the different springs.

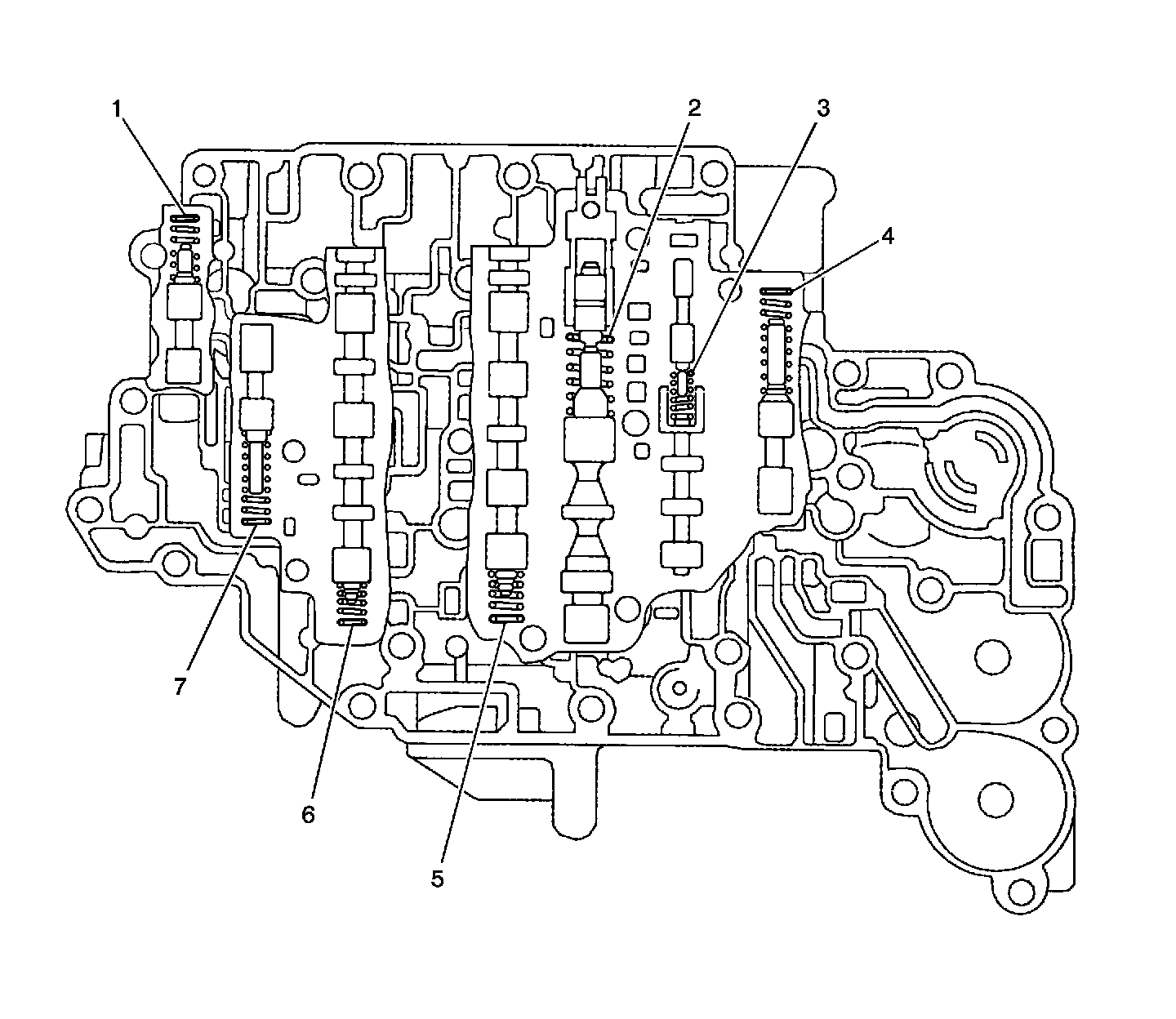

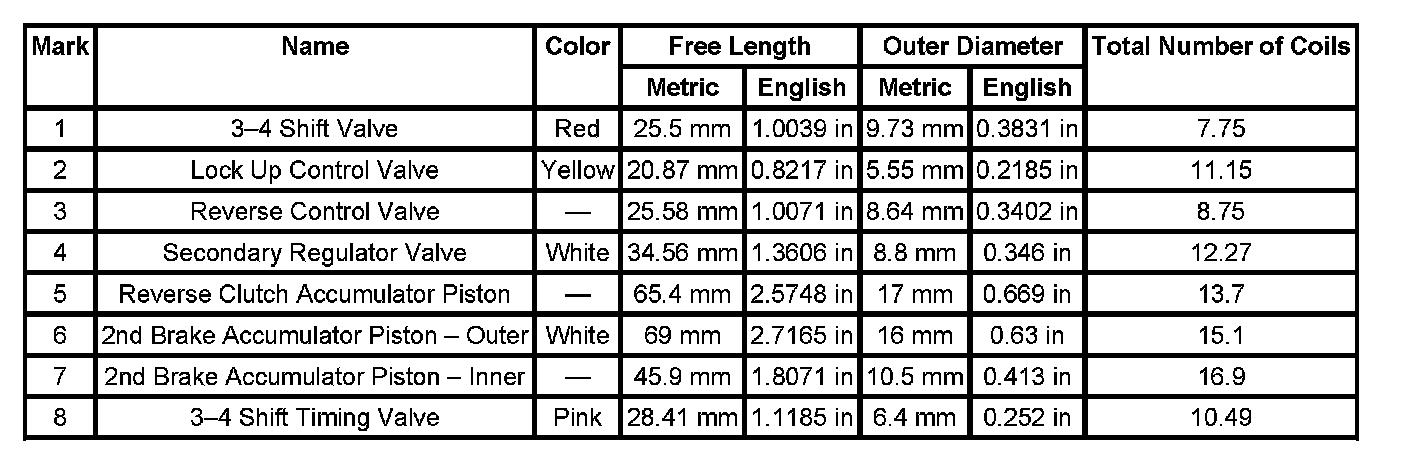

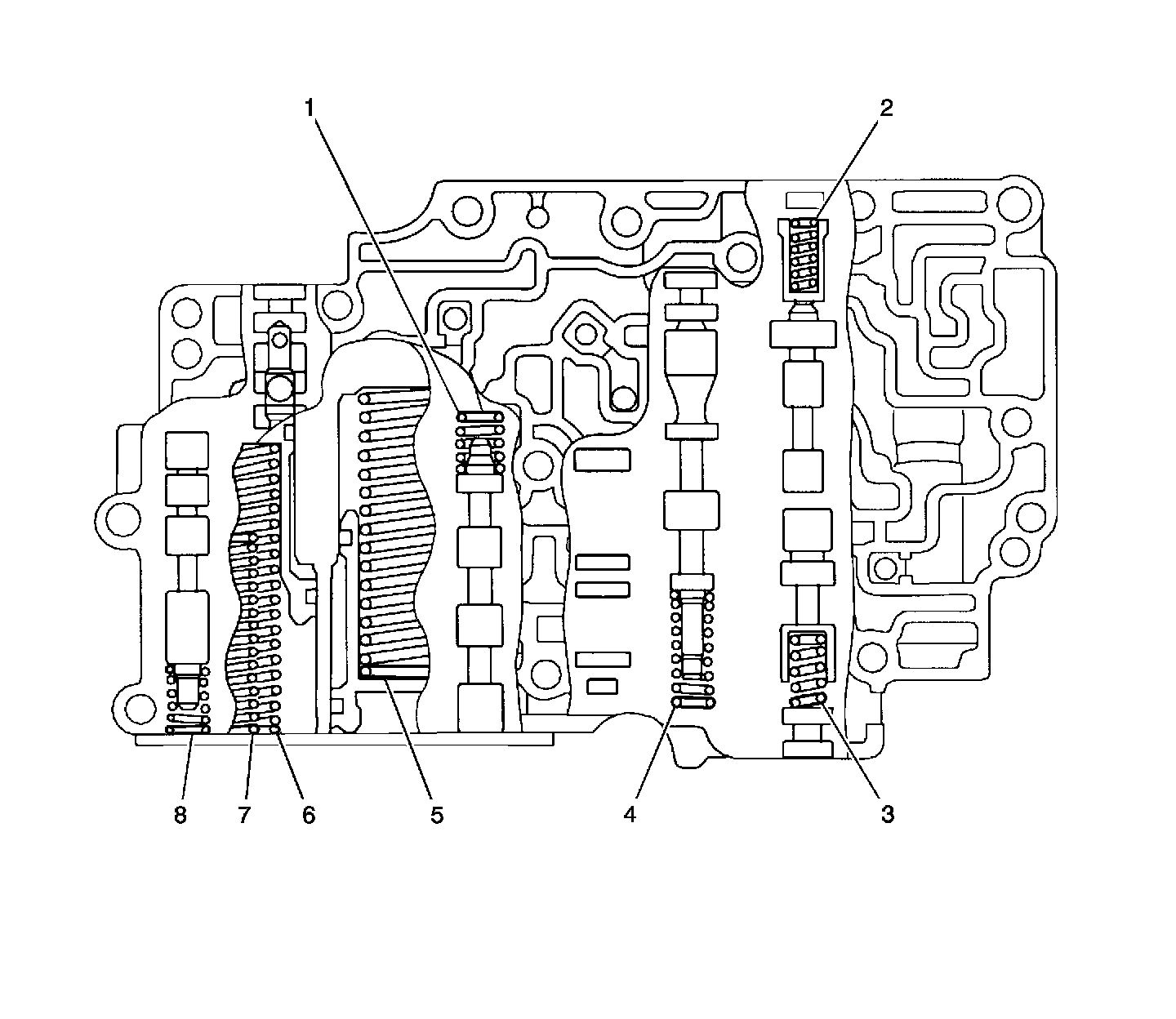

Upper Valve Body Spring

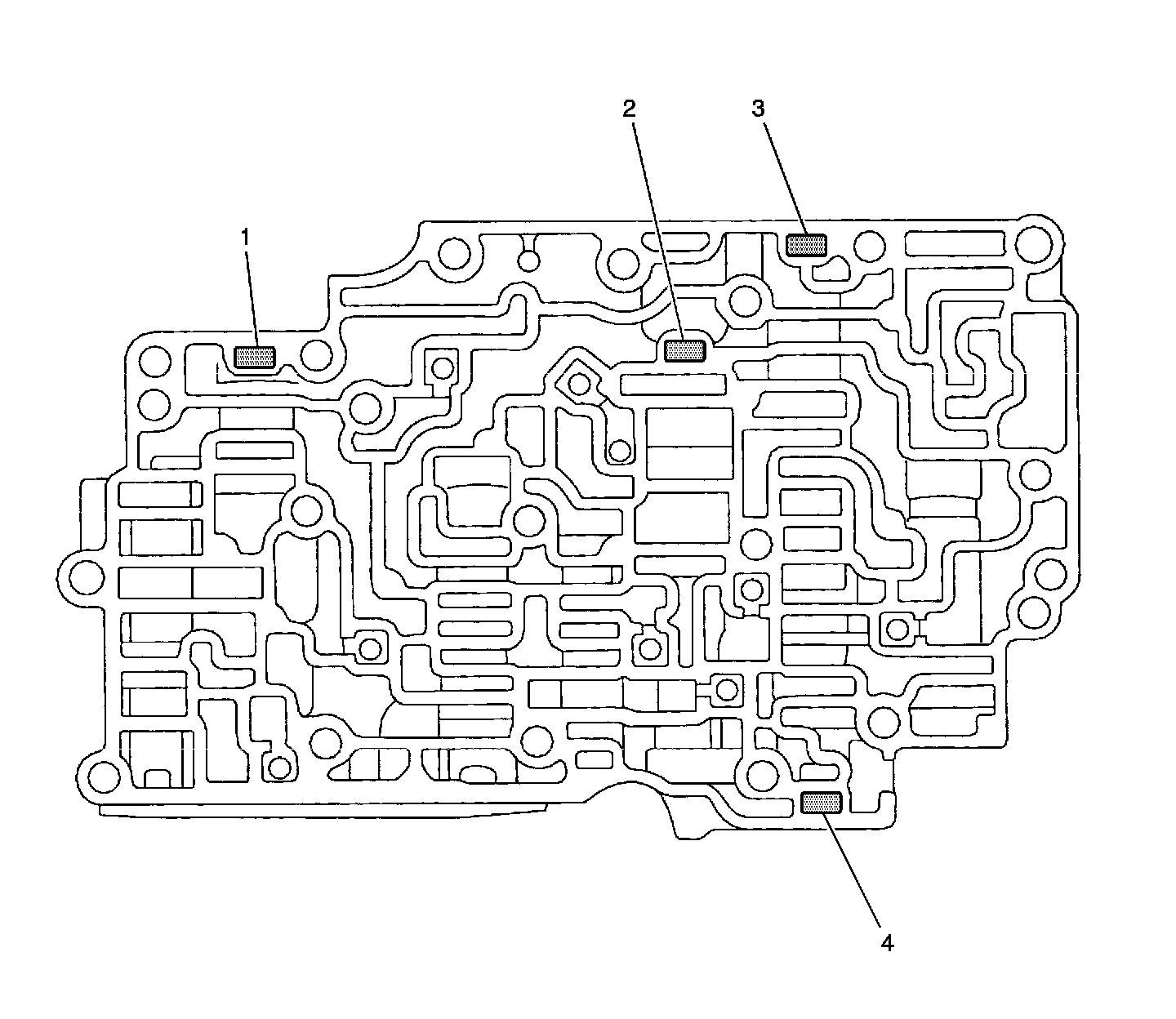

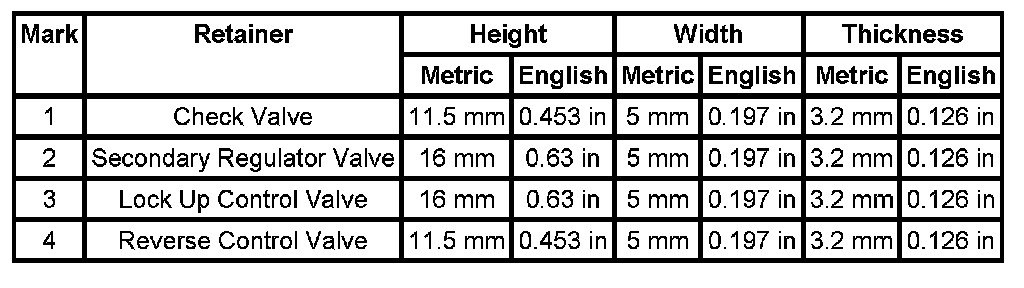

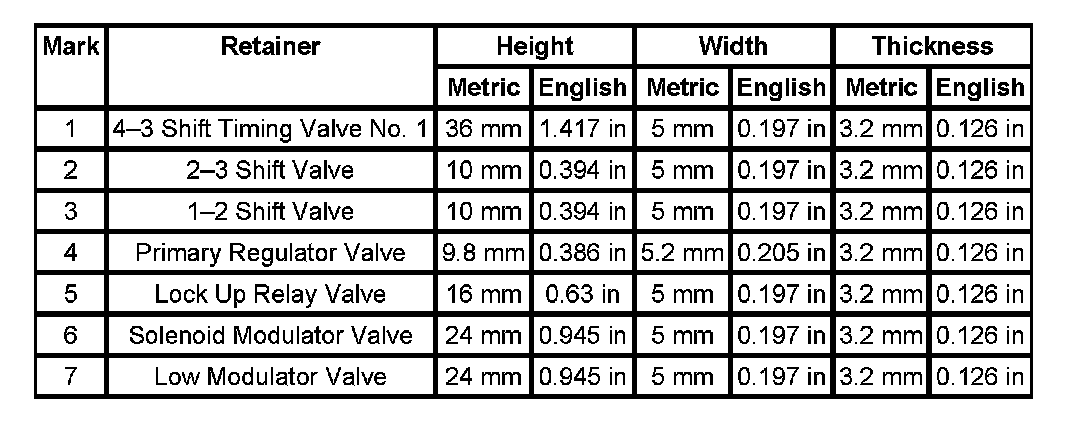

Upper Valve Body Key

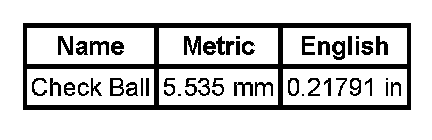

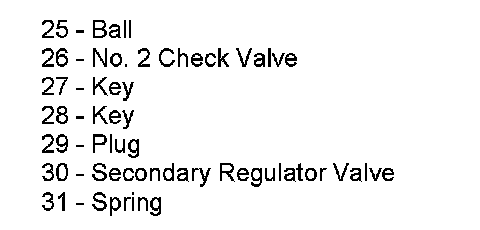

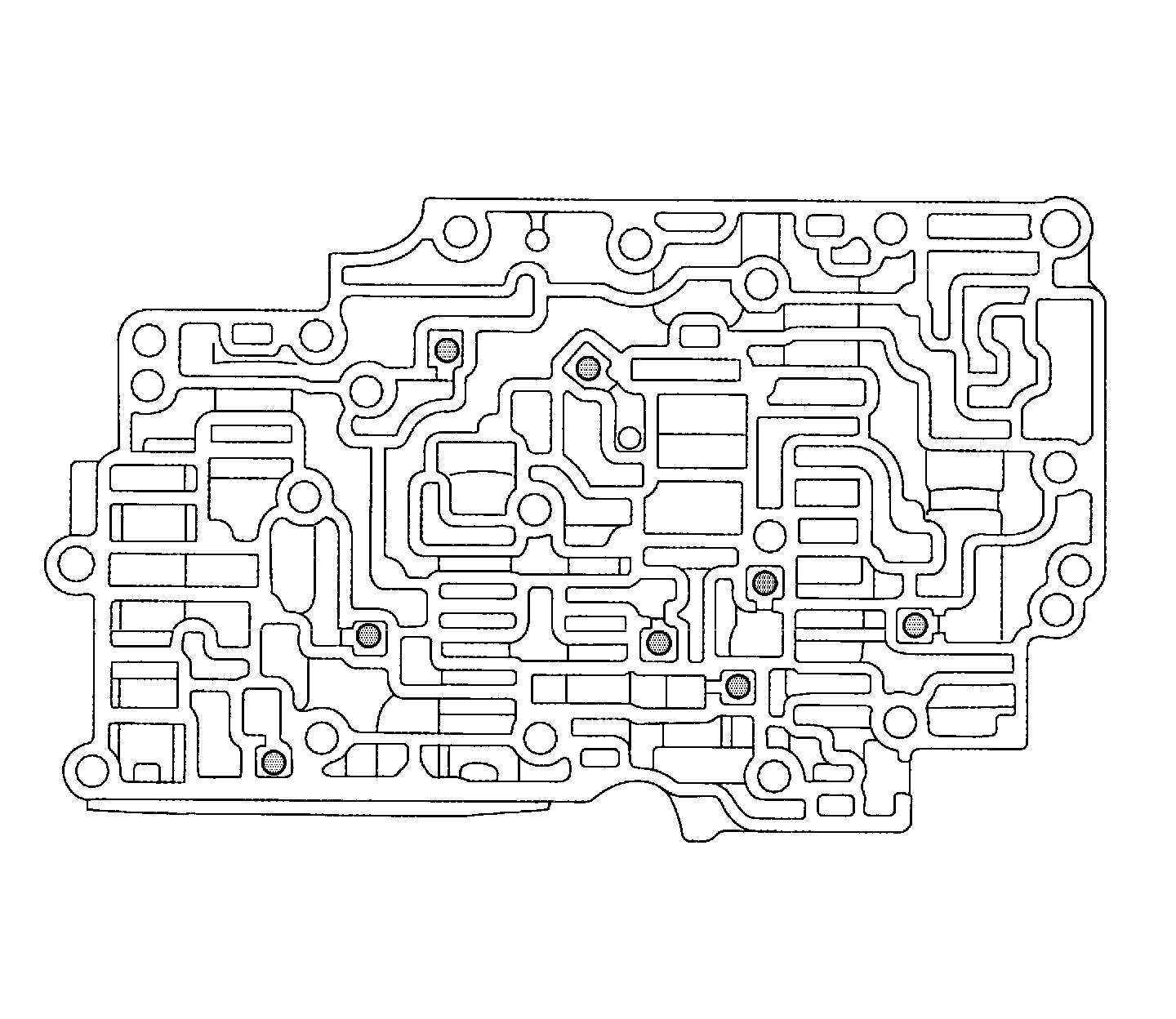

Upper Valve Body Check Ball

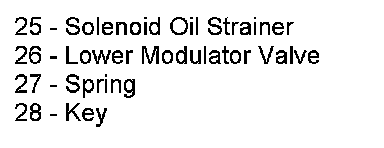

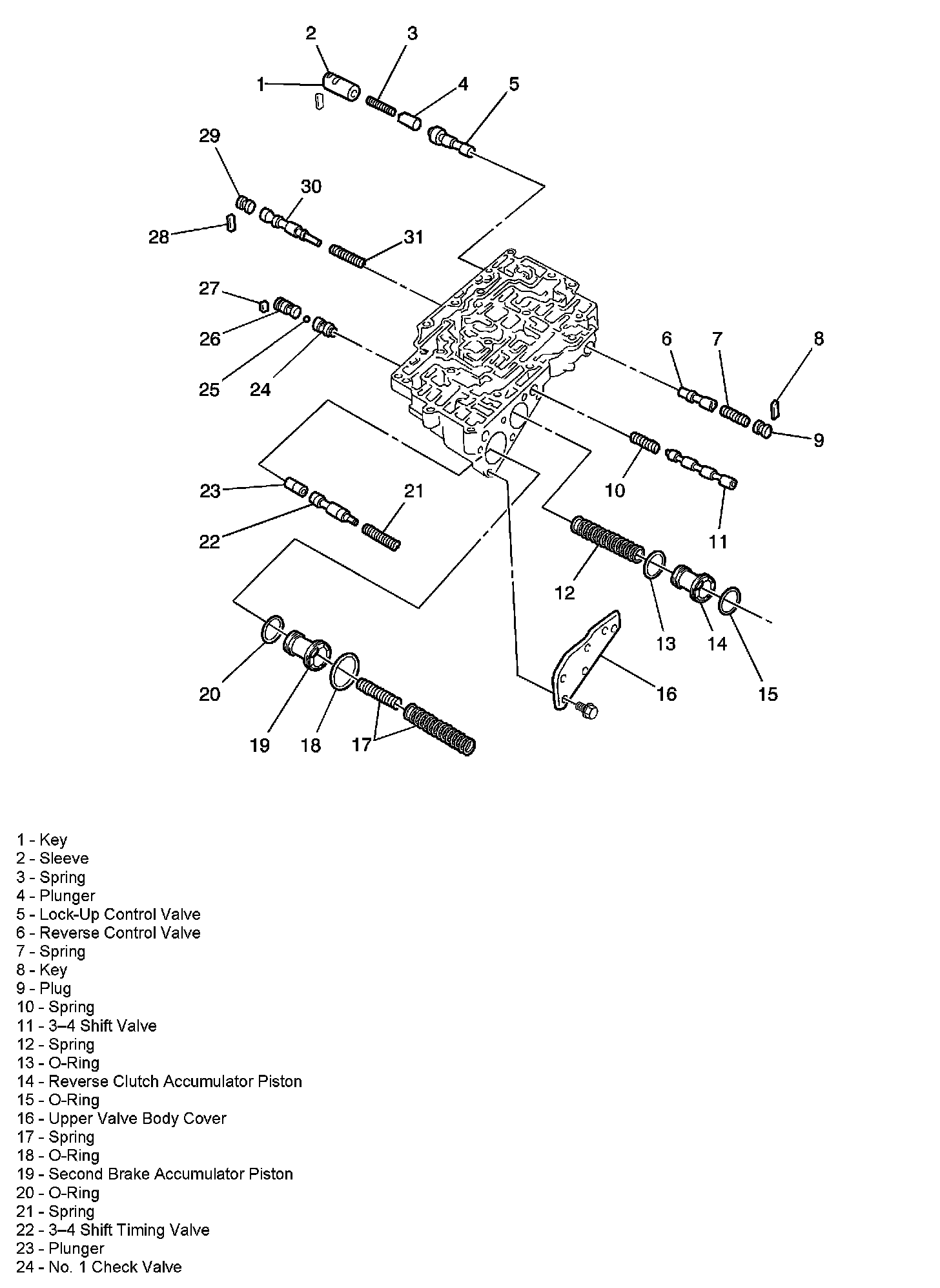

Lower Valve Body





Lower Valve Body Spring

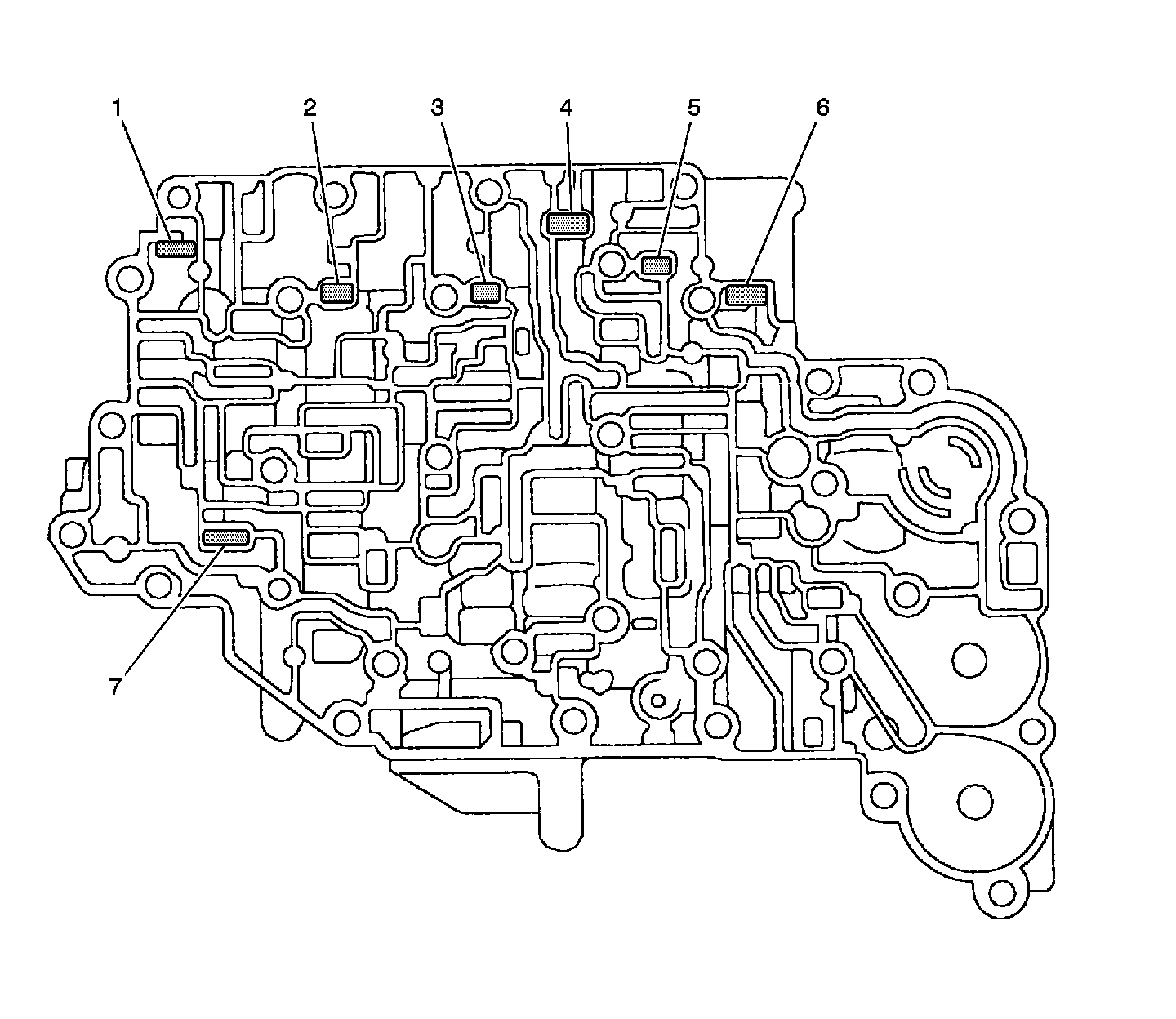

Lower Valve Body Key

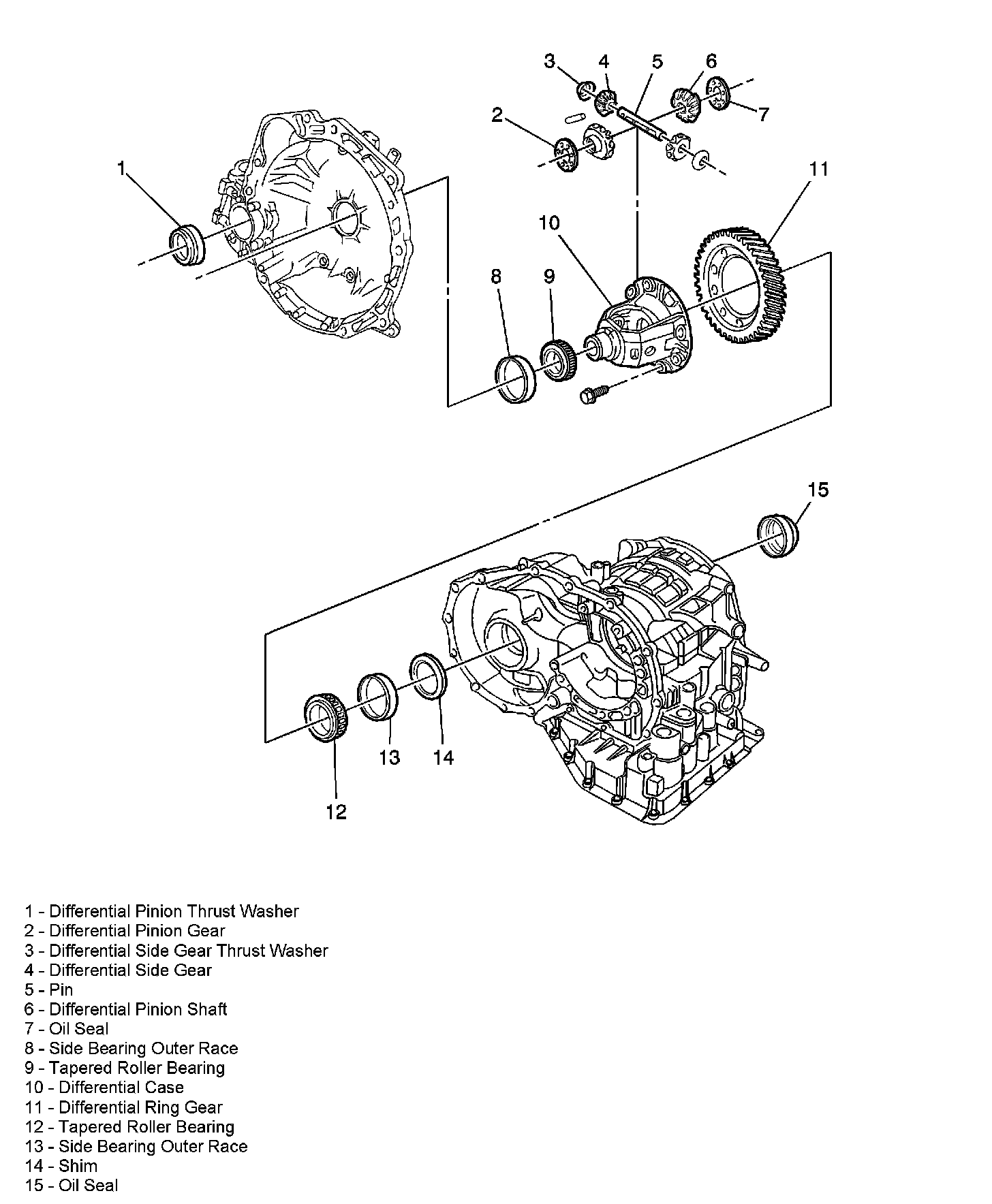

Differential Case
