Door Switch: Diagrams

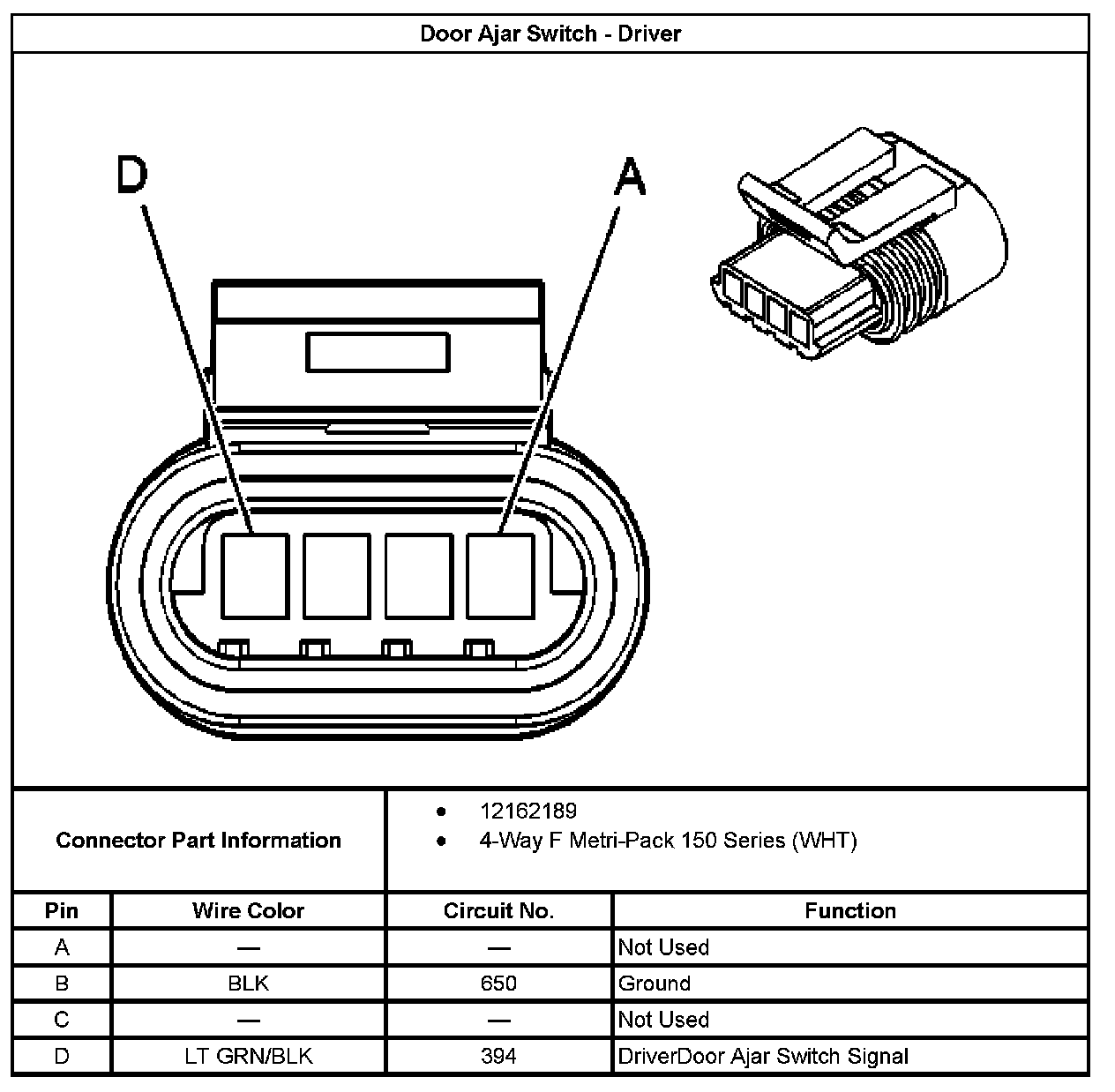

Door Ajar Switch - Driver:

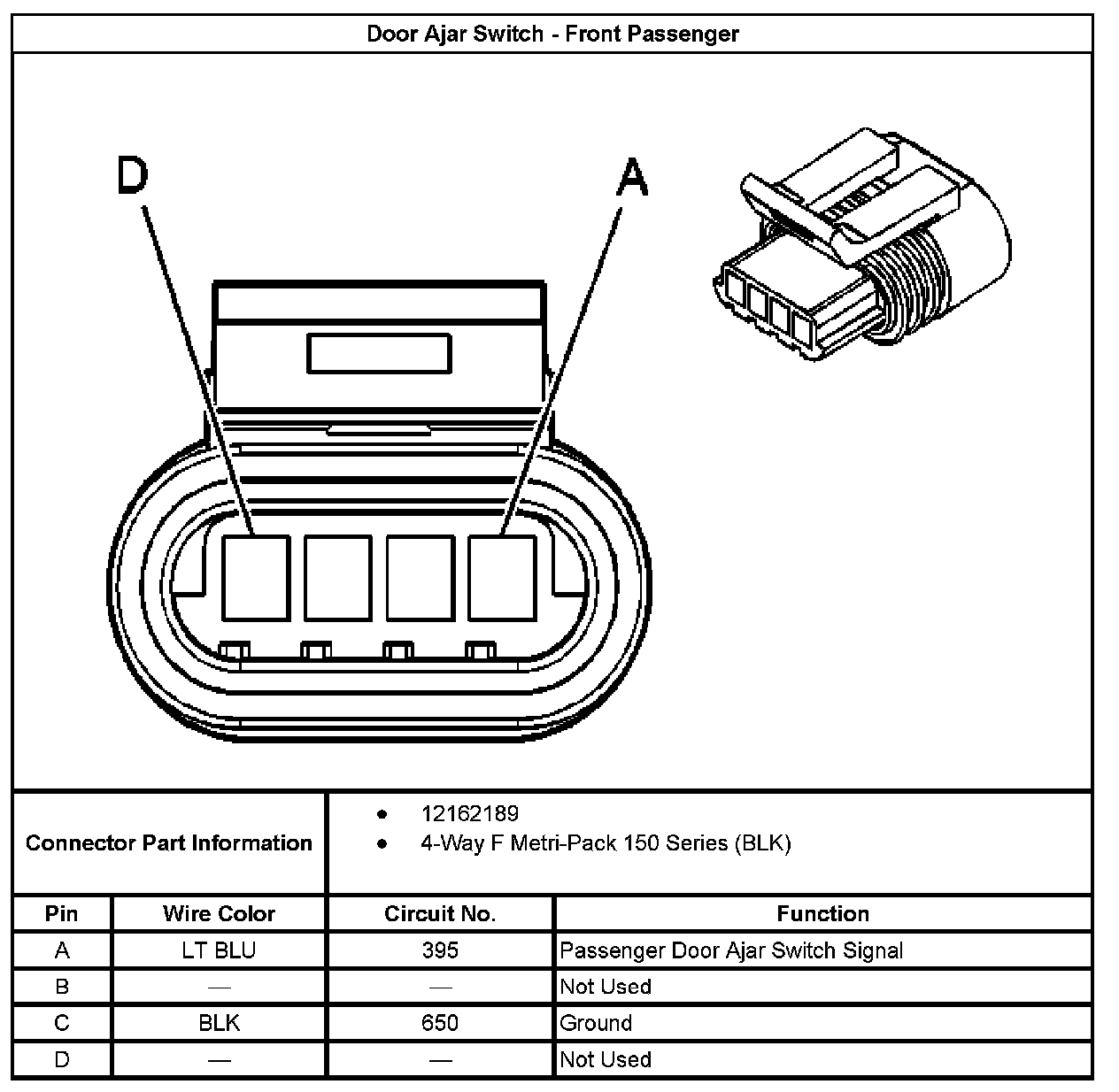

Door Ajar Switch - Front Passenger:
Door Ajar Switch - LR:

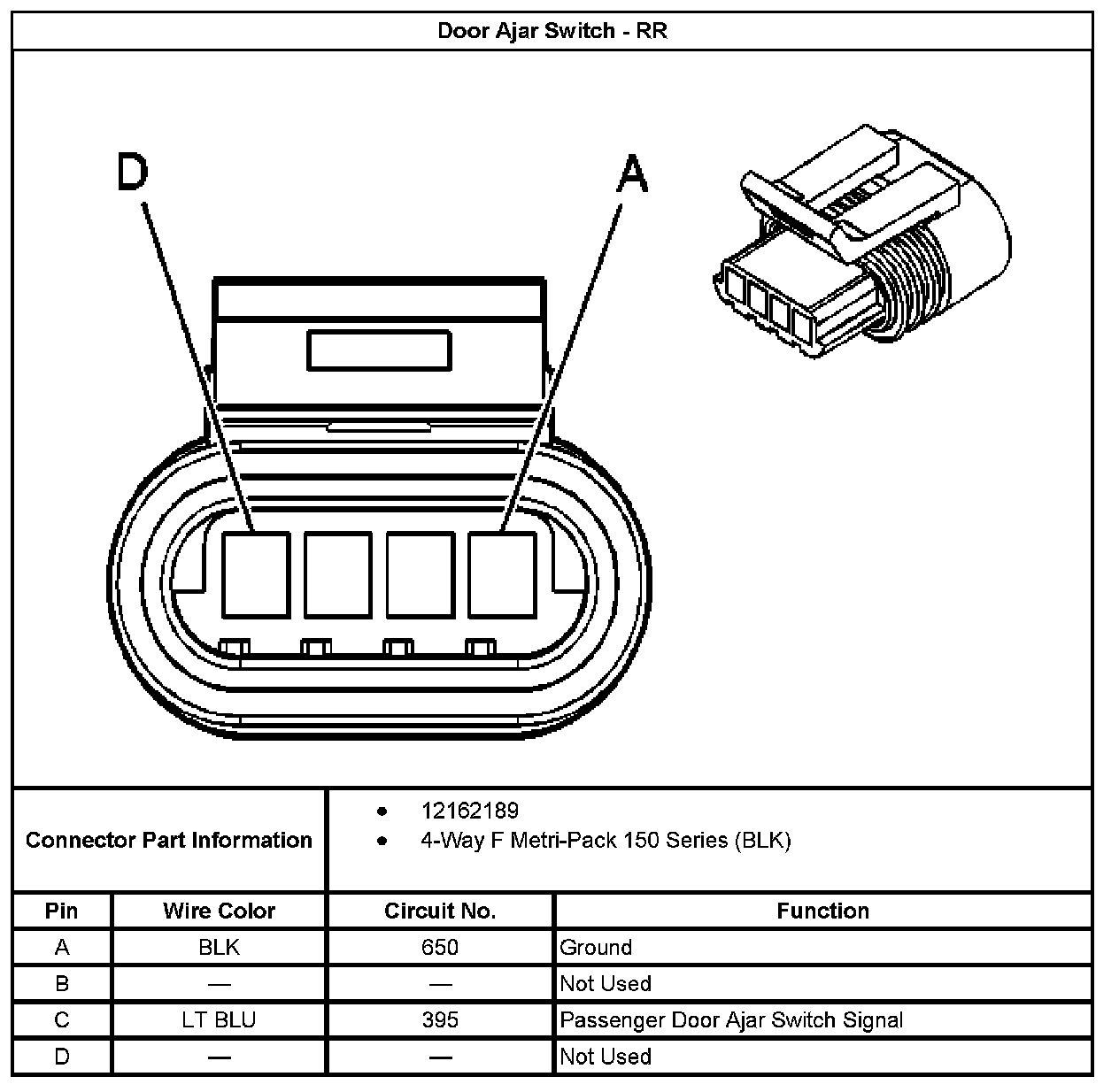

Door Ajar Switch - RR:
