Child Seat Tether Attachment: Service and Repair
CHILD RESTRAINT TETHER ANCHOR REPLACEMENTREMOVAL PROCEDURE
IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.
1. With a flat-bladed tool pry in a upward motion to remove the tether bezel.

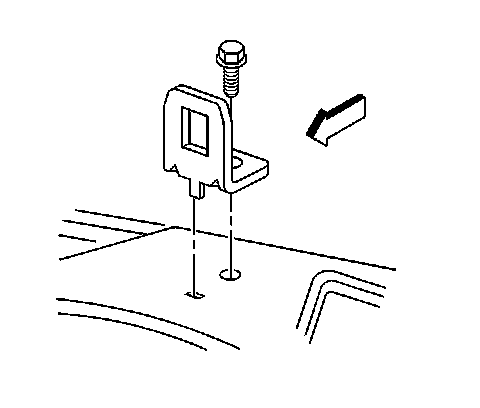

2. Remove the tether anchor bolt.
3. Remove the tether anchor bracket from the rear shelf.
INSTALLATION PROCEDURE
1. Install the tether anchor bracket to the rear shelf.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the tether anchor bolt.
Tighten the bolt to 28 N.m (21 lb ft).
3. Install the tether bezel to the rear shelf.
