Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

REMOVAL PROCEDURE

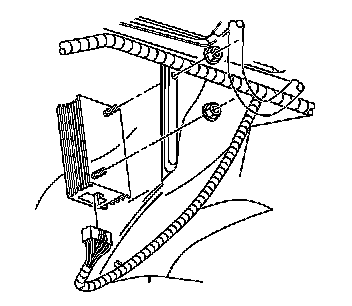

1. Pull back the rear compartment trim panel to gain access to the amplifier. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.
2. Remove the amplifier nuts.Remove the amplifier from the bracket.
3. Disconnect the electrical connector from the amplifier.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the amplifier.
2. Install the amplifier to the bracket.
3. Install the amplifier nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 3.5 N.m (31 lb in).

4. Reposition the rear compartment trim panel. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.
