Carpet Replacement - Front

Carpet Replacement - Front

Removal Procedure

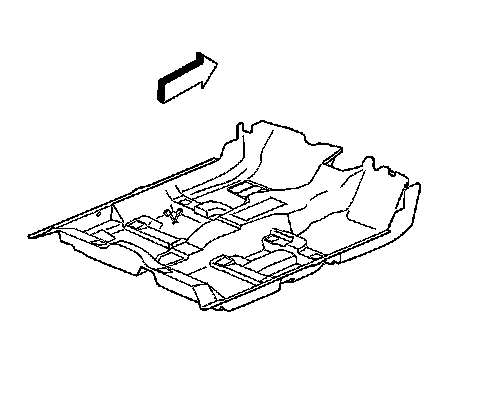

The floor carpet is a molded, one-piece design.




1. Remove the front seats.
2. Remove the console assembly.
3. Remove the floor carpet retainers.
4. Remove the body lock pillar trim.
5. Remove the center pillar lower trim panel.
6. Remove the front shoulder belt anchor bolts from the floor pan.
7. Remove the rear seat cushion.
8. Remove the floor carpet.

Installation Procedure






Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the floor carpet.
2. Install the rear seat cushion.
3. Install the front shoulder belt anchor bolts to the floor pan.
4. Install the center pillar lower trim panel.
5. Install the body lock pillar trim.
6. Install the floor carpet retainers.
7. Install the console assembly.
8. Install the front seats.
