Trim Panel Replacement - Lower Center Pillar

Trim Panel Replacement - Lower Center Pillar

Removal Procedure




1. Remove the lock pillar lower trim panel.
2. Remove the carpet retainer.

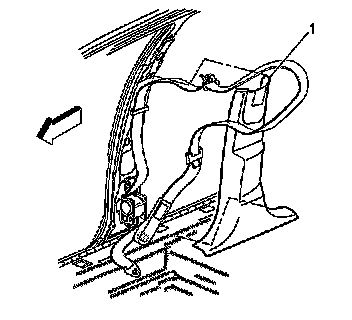

3. Remove the center pillar lower trim panel (1).

Installation Procedure




1. Install the center pillar lower trim panel (1).
2. Install the carpet retainer.
3. Install the lock pillar lower trim panel.
