Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 2005 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Rear Verticle Motor

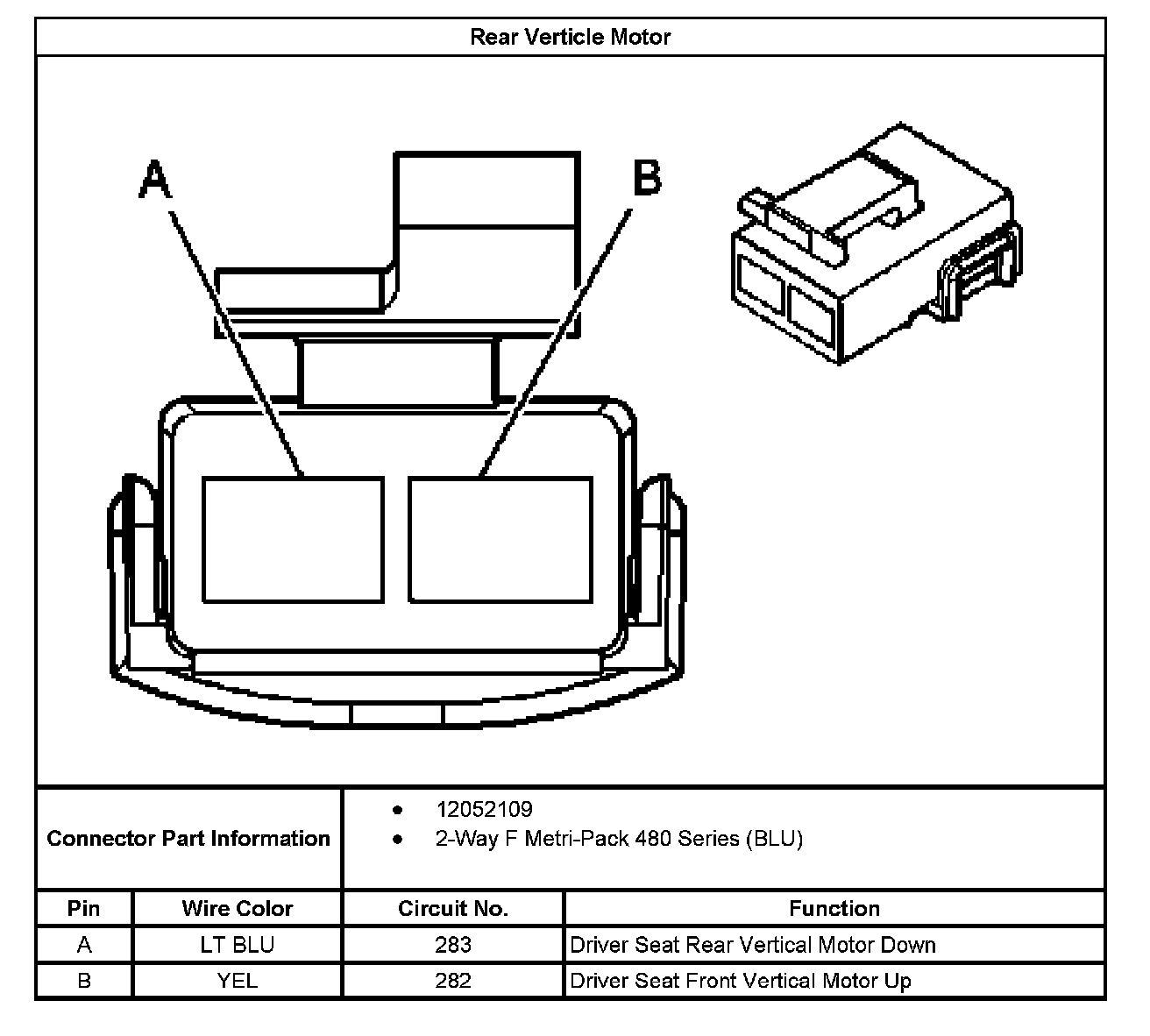

Rear Verticle Motor

Rear Verticle Motor:
