Air Outlet Duct Replacement - Left Lap

AIR OUTLET DUCT REPLACEMENT - LEFT LAP

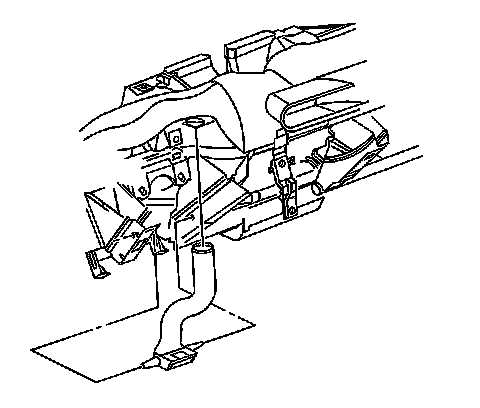

REMOVAL PROCEDURE




1. Remove the I/P carrier.
2. Remove the left side pin of the lap air duct from the tie bar bracket.
3. Remove the right side pin of the lap air duct from the tie bar bracket.
4. Unsnap the lap air duct from the air distribution duct.
5. Remove the lap air duct from the vehicle.

INSTALLATION PROCEDURE




1. Insert the right side pin of the lap air duct to the tie bar bracket.
2. Insert the left side pin of the lap air duct to the tie bar bracket.
3. Snap the lap air duct to the air distribution duct.
4. Install the I/P carrier.
