Rear

SEAT BELT RETRACTOR REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the rear seat back cushion.
3. Remove the rear window panel trim. Disengage the retainers.
4. Remove the rear seat belt retractor anchor plate bolt.

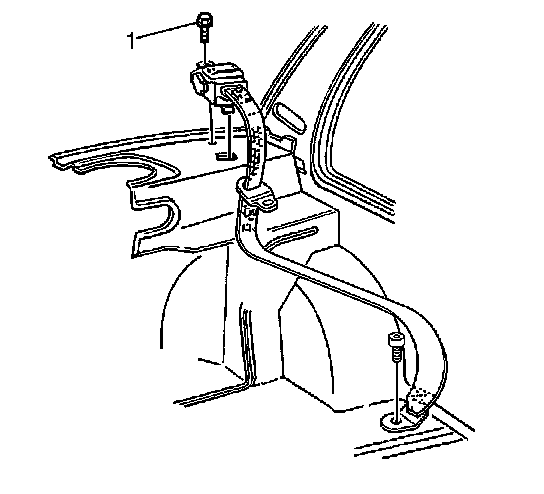

5. Remove the rear seat belt retractor bolt (1).
6. Remove the rear seat outer retractor side belt.

INSTALLATION PROCEDURE




1. Install the rear seat outer retractor side belt.

IMPORTANT: Remove any twists in the seat belt webbing before final assembly.

2. Install the bolt (1) to the rear seat belt retractor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolt to 28 N.m (21 lb ft).

3. Install the anchor plate bolt to the rear seat belt retractor.

Tighten the bolt to 41 N.m (30 lb ft).

4. Install the rear window panel trim. Engage the retainers.
5. Install the rear seat cushion.
6. Install the rear seat back cushion.
