Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Position Sensor / Switch
>>

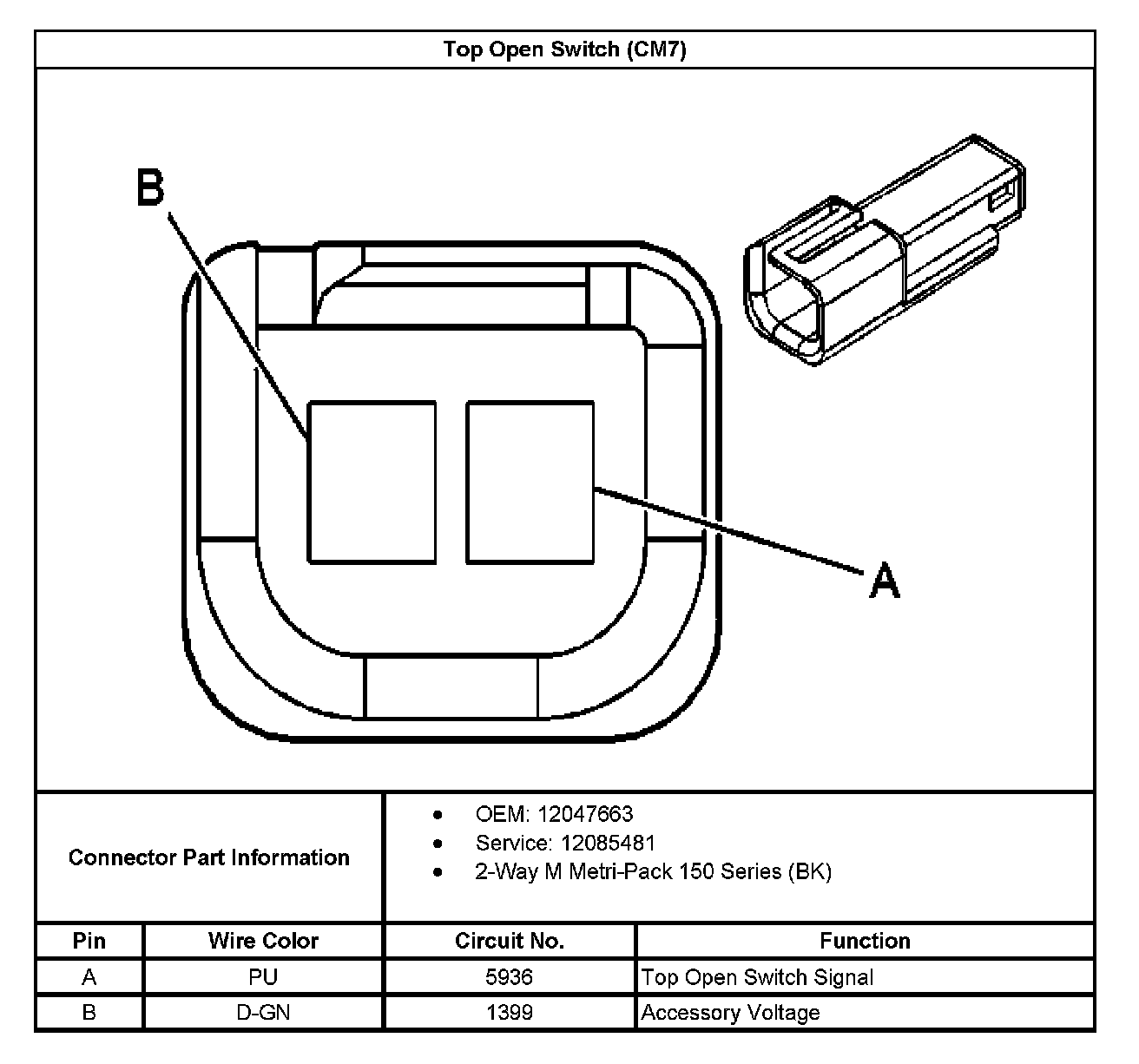

Top Open Switch (With RPO Code CM7)
Top Open Switch (With RPO Code CM7)
Top Open Switch (With RPO Code CM7):
