Connector Locations



Automatic Transmission Shift Lock Control Connector End Views

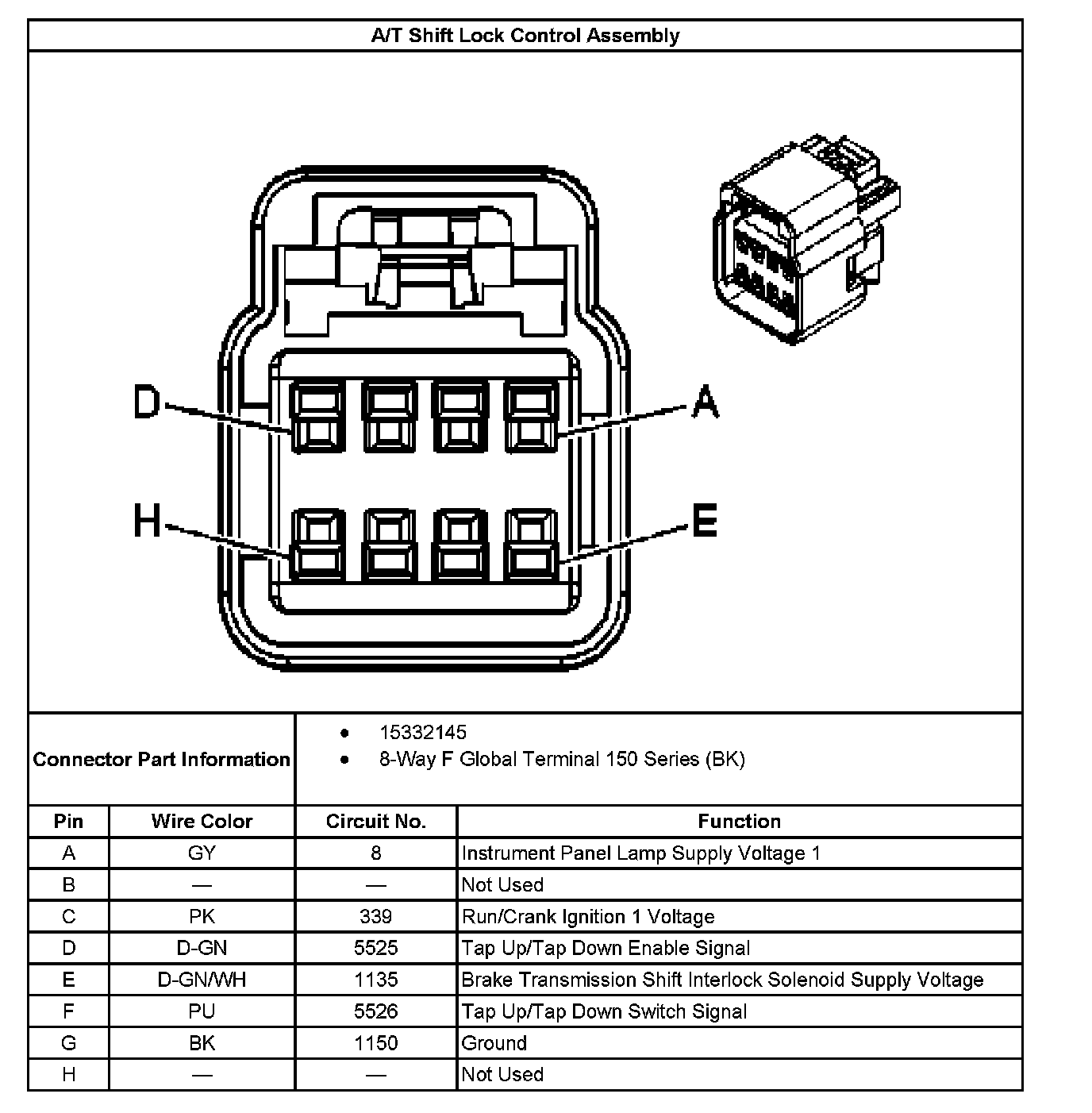

A/T Shift Lock Control Assembly





Automatic Transmission Shift Lock Control Solenoid
