Power Seat Switch

Lumbar Switch - Driver:

Lumbar Switch - Passenger:

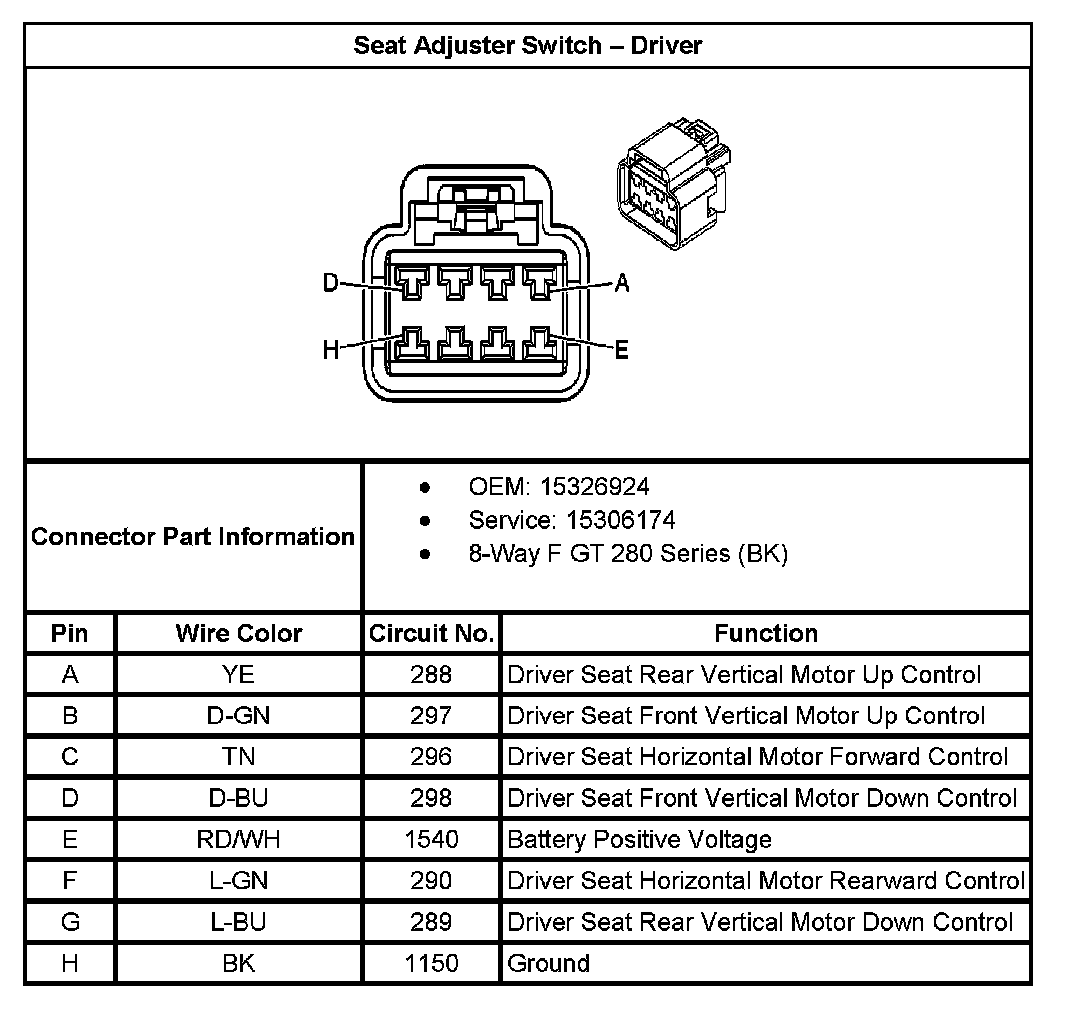

Seat Adjuster Switch - Driver:

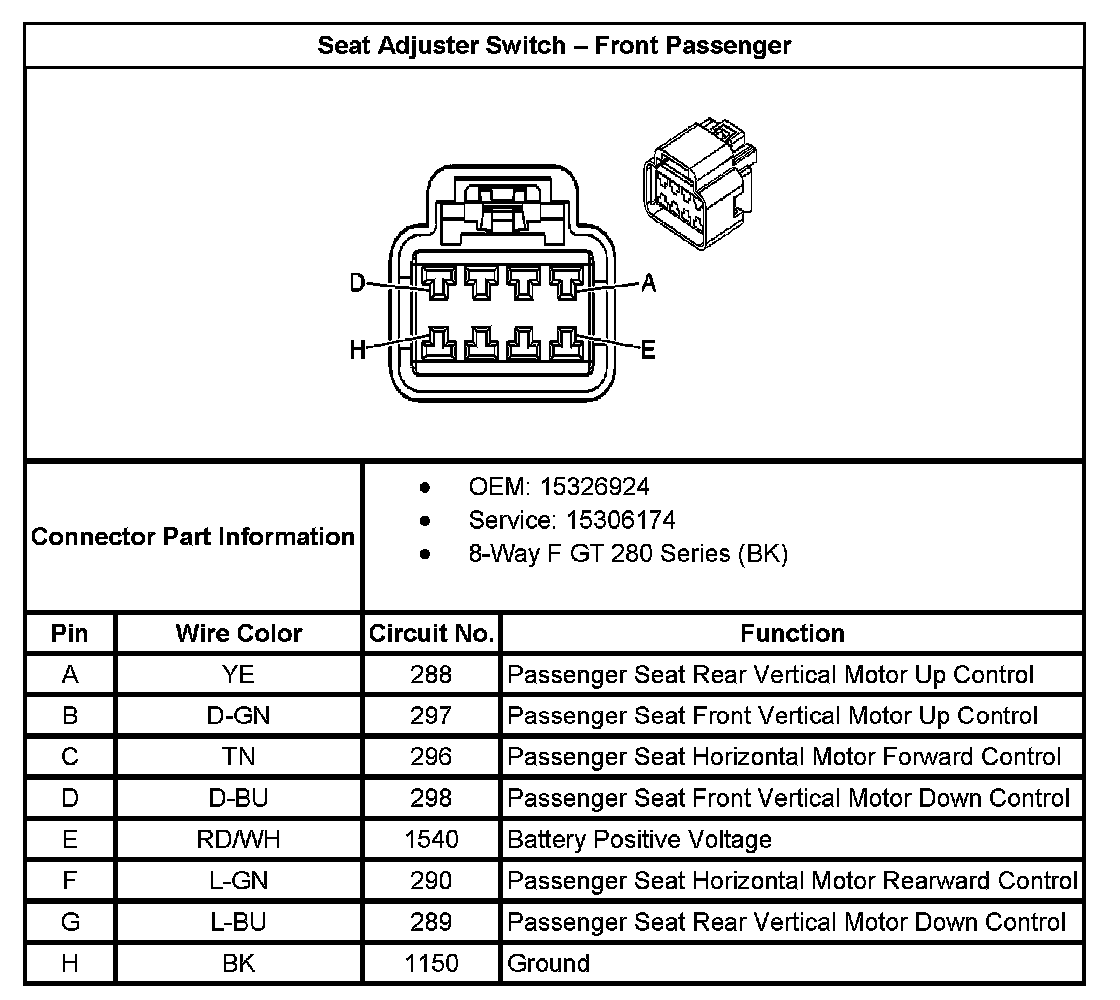

Seat Adjuster Switch - Front Passenger:
