System Diagram

Theft Deterrent System Schematics

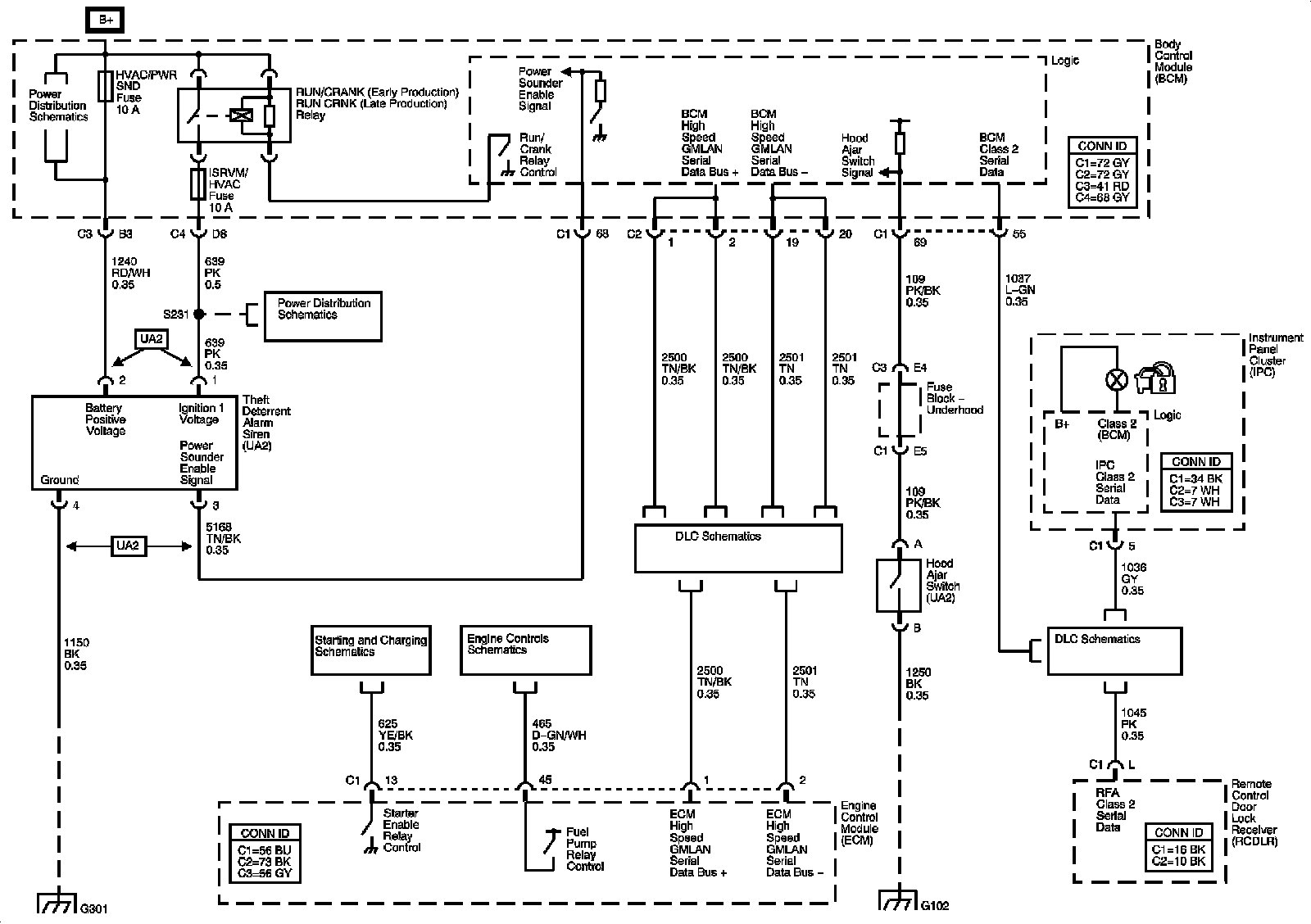

Theft Deterrent System Schematics (Part 1):

Vehicle Theft Deterrent

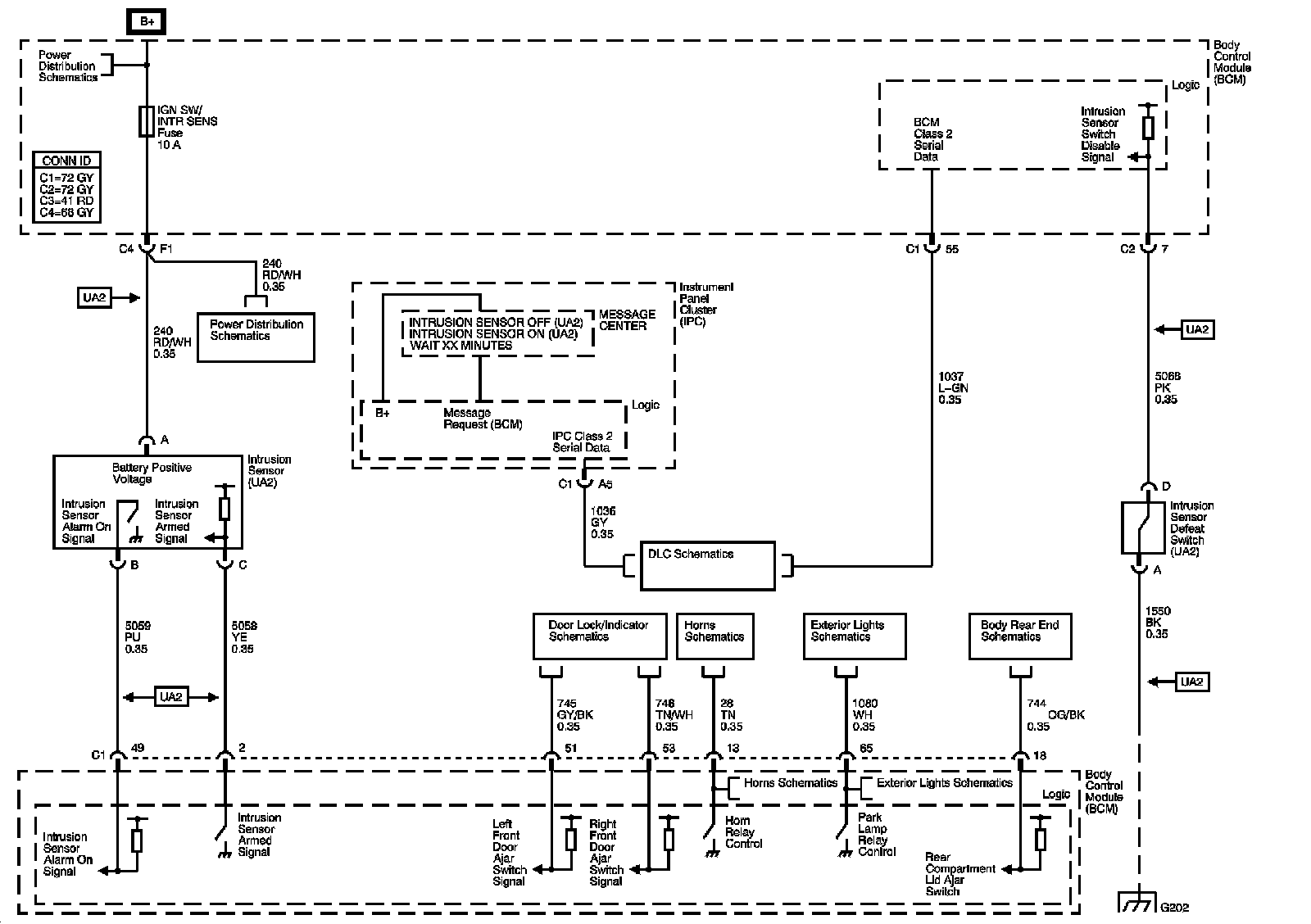

Theft Deterrent System Schematics (Part 2):

Content Theft Deterrent



Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
