Air Distribution Duct

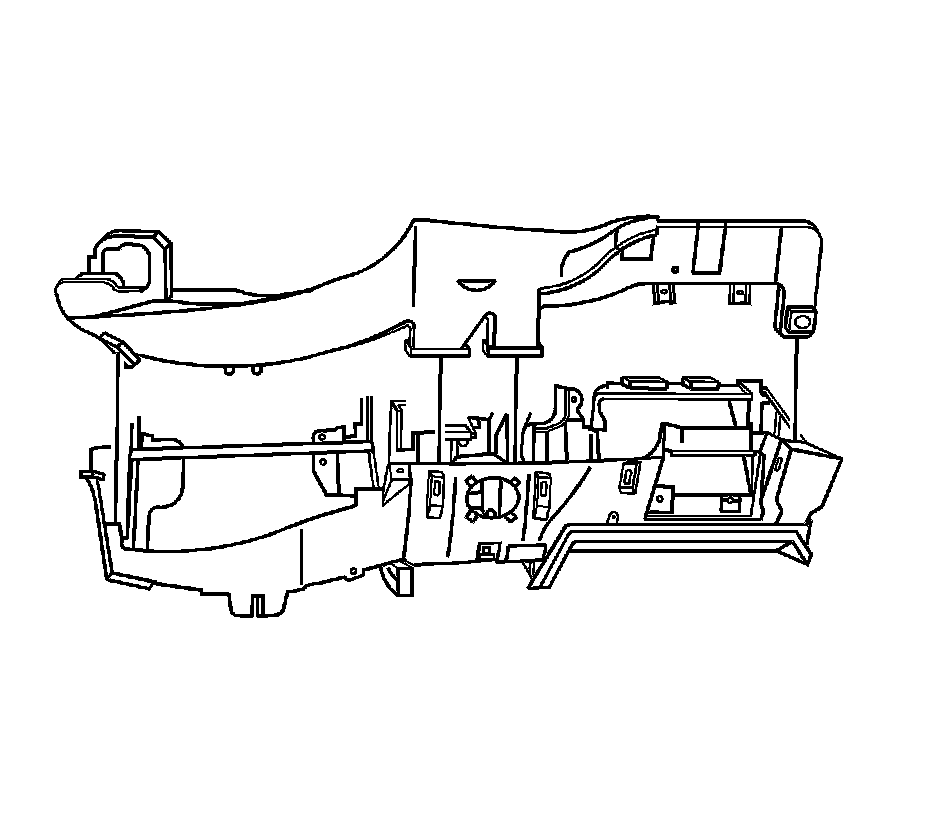

AIR DISTRIBUTION DUCT REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) assembly.
2. Remove the screws retaining the air distribution duct to the underside of the I/P assembly.
3. Remove the air distribution duct.
4. Remove the discharge temperature management (DTM) sensors from the air distribution duct.

INSTALLATION PROCEDURE
1. Install the DTM sensors to the air distribution duct.




2. Install the air distribution duct into position on the I/P assembly.
3. Install the retaining screws to the underside of the I/P assembly.

Tighten the screws to 1.6 N.m (14 lb in).

4. Install the I/P assembly.
