I/P Console Components

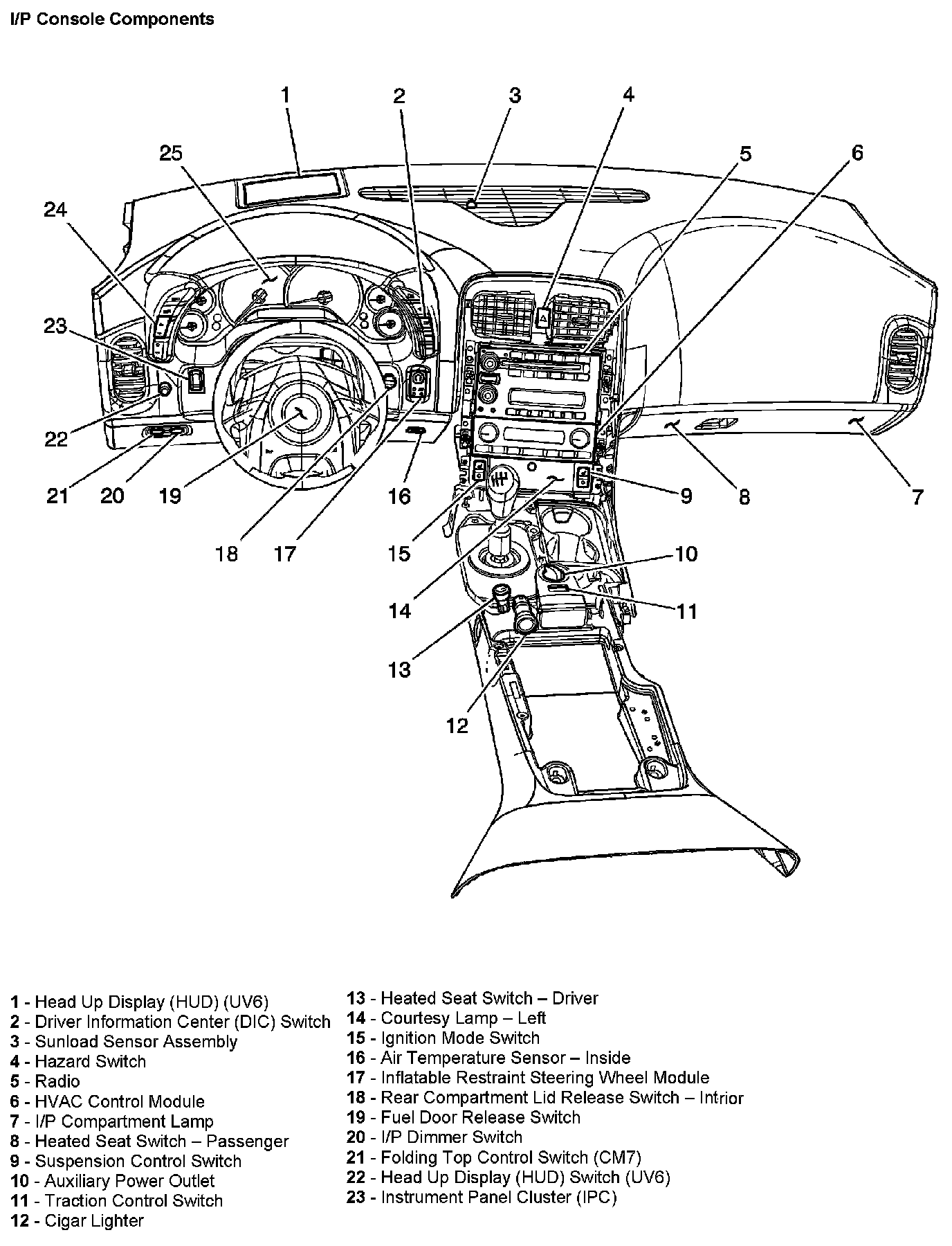

I/P Console Components:

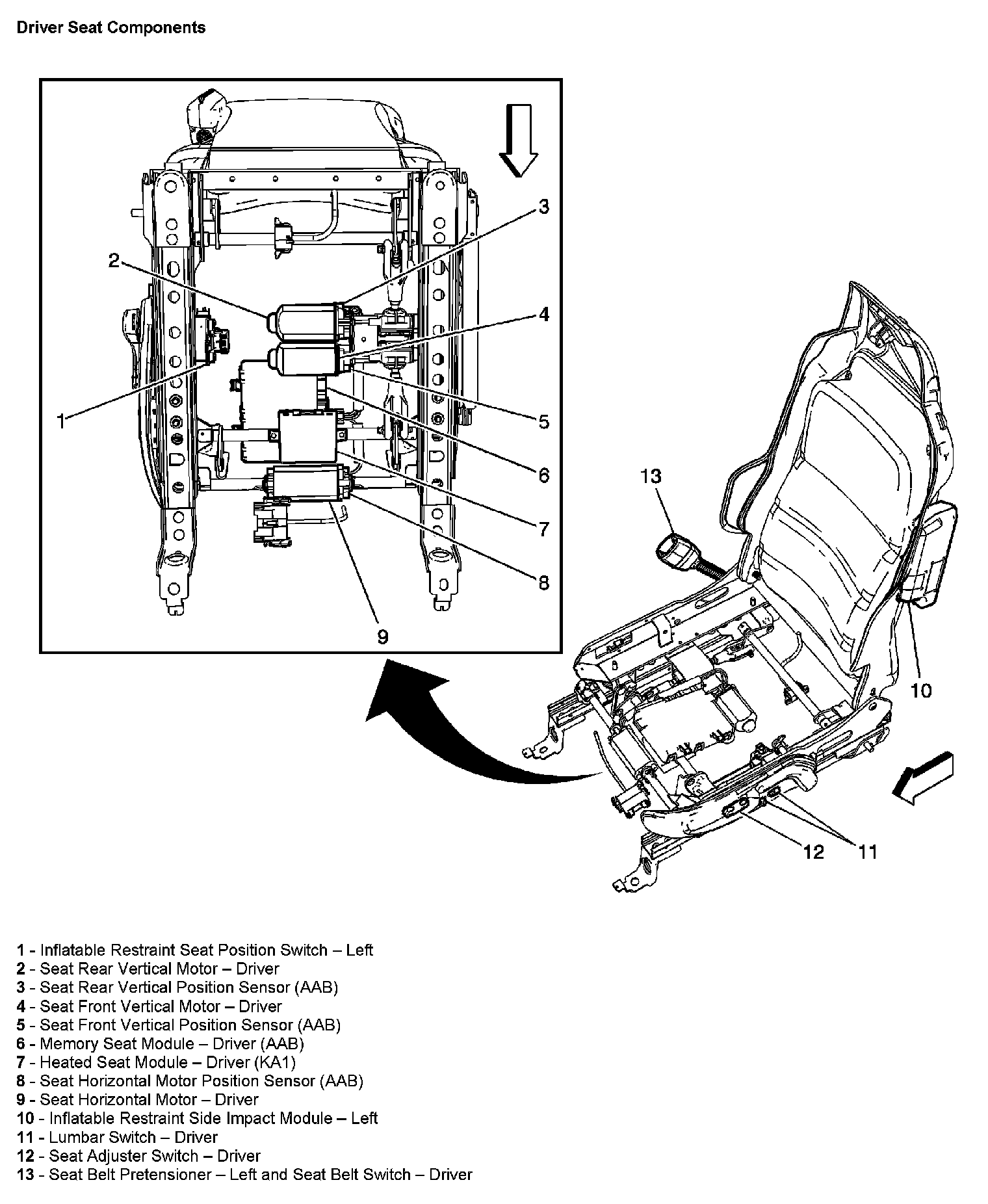

Driver Seat Components:

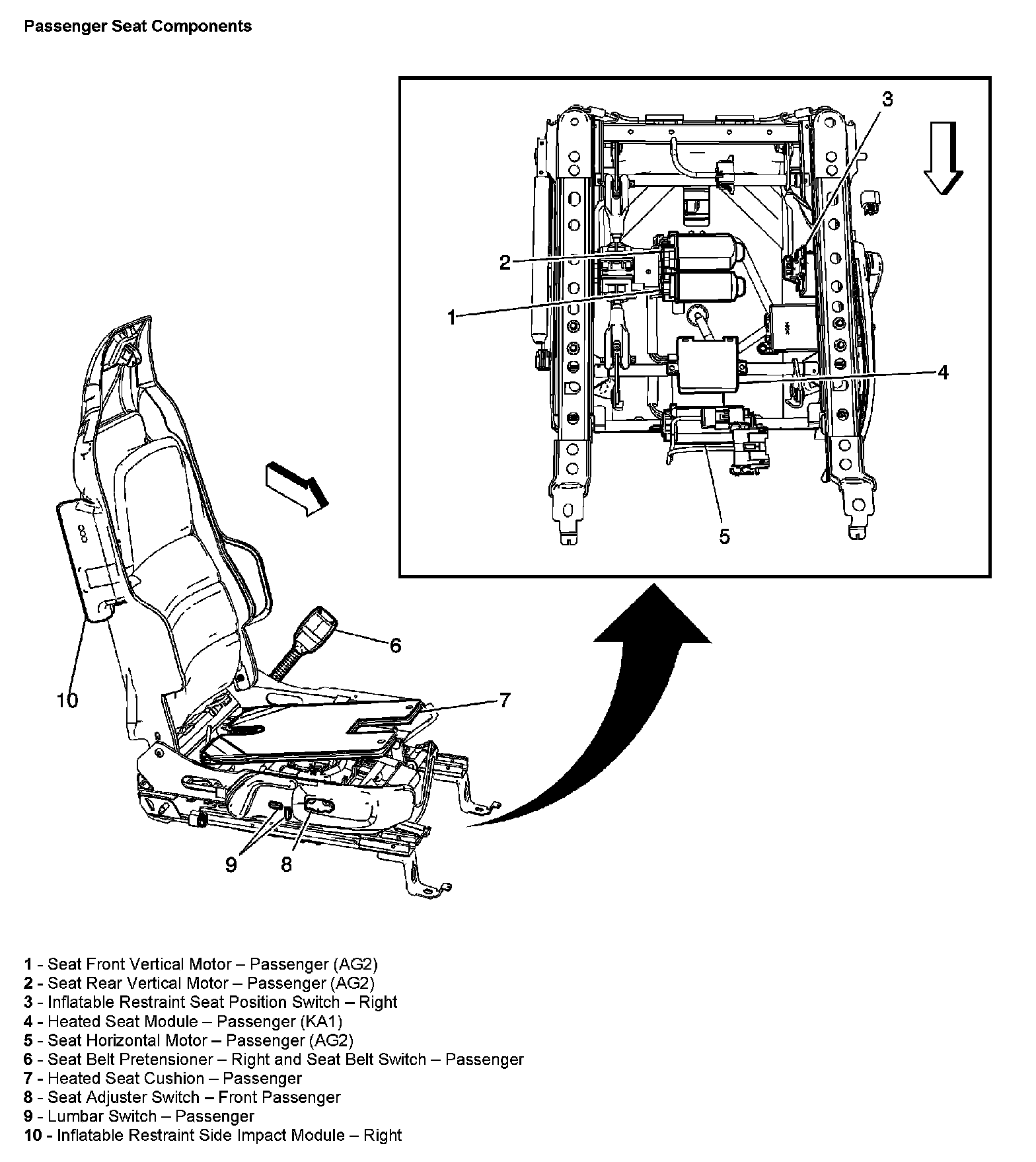

Passenger Seat Components:

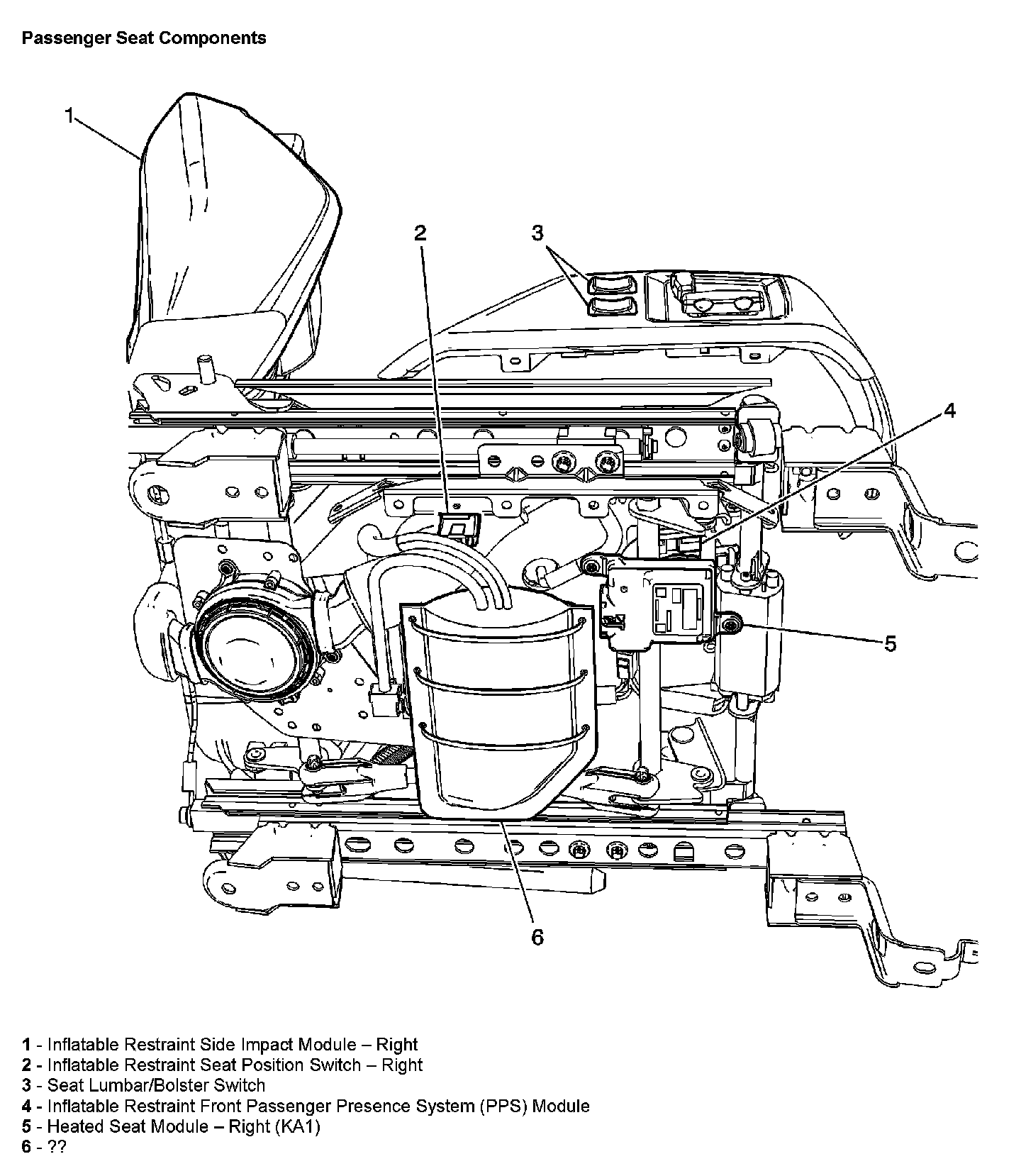

Passenger Seat Components:
