Fluid Pan, A/T
Transmission Fluid Pan Bolt (QTY:18)

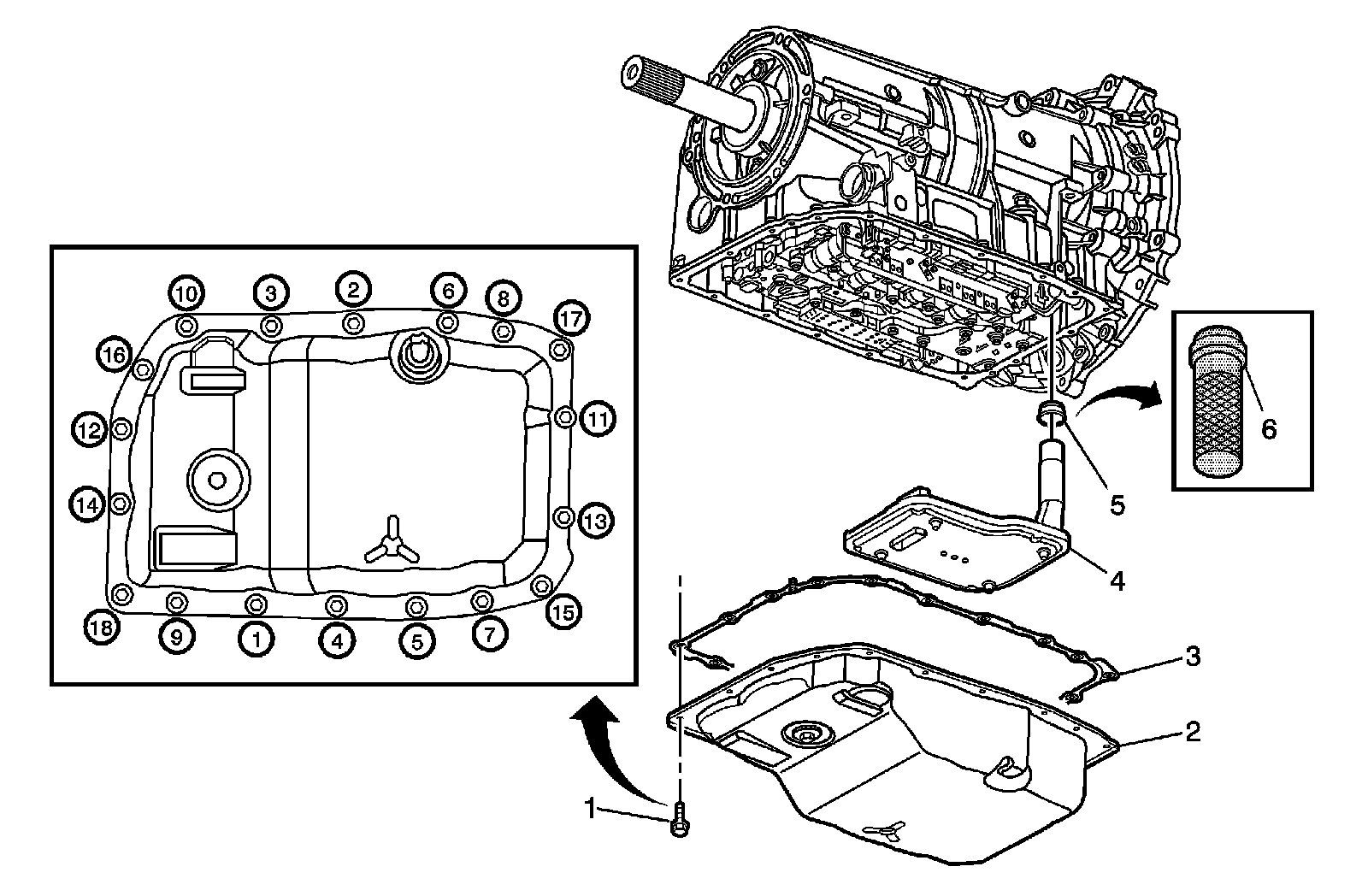

Tighten the bolts in the sequence shown
9 N.m (80 lb in)
