Shift Interlock: Locations

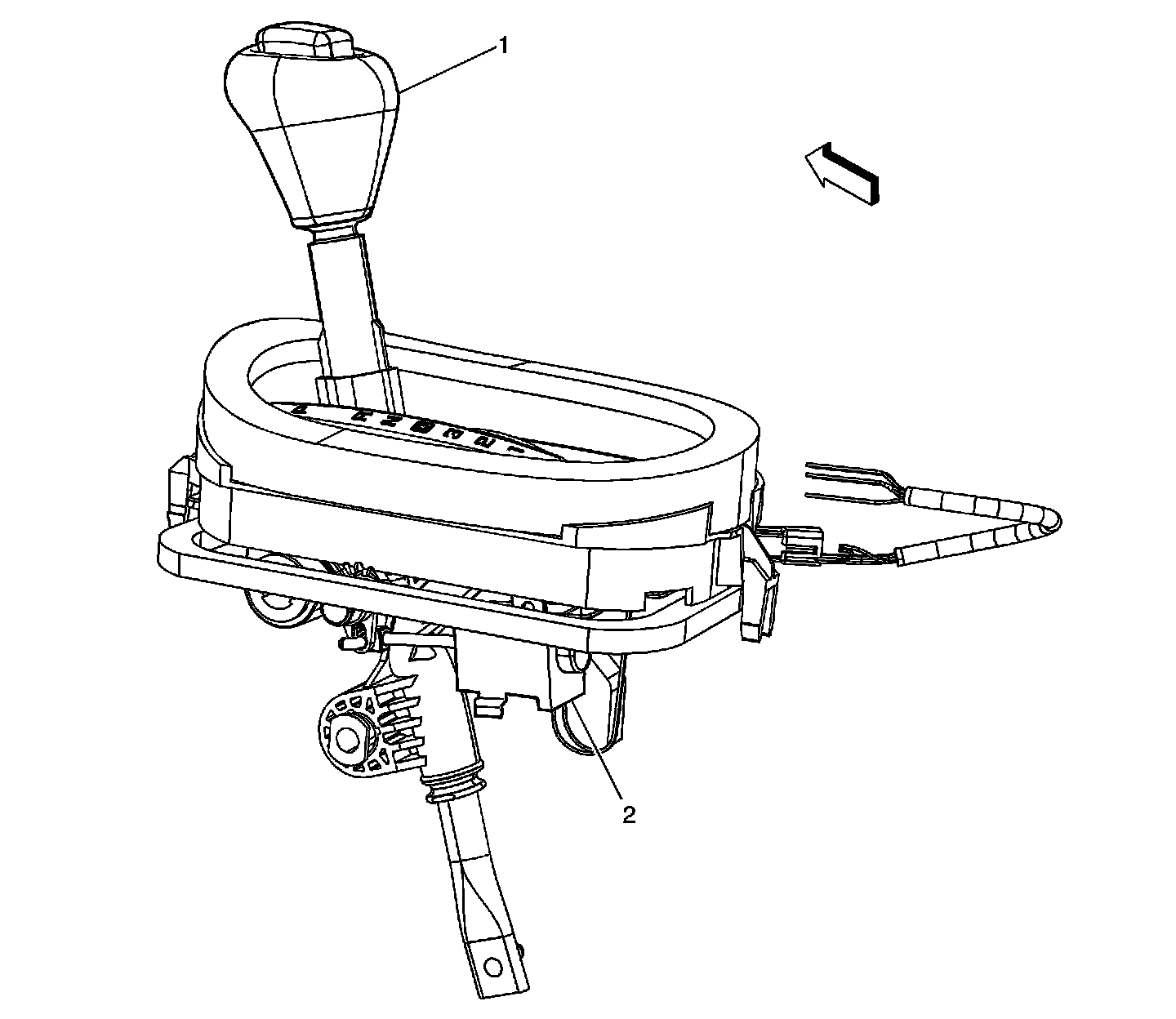

Automatic Transmission Shift Lock Control Component Views

Floor Shift Assembly:

1 - Automatic Transmission Shift Lever
2 - A/T Shift Lock Control Solenoid
