Trunk / Liftgate Latch: Service and Repair

Latch Replacement - Rear Compartment Lid

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

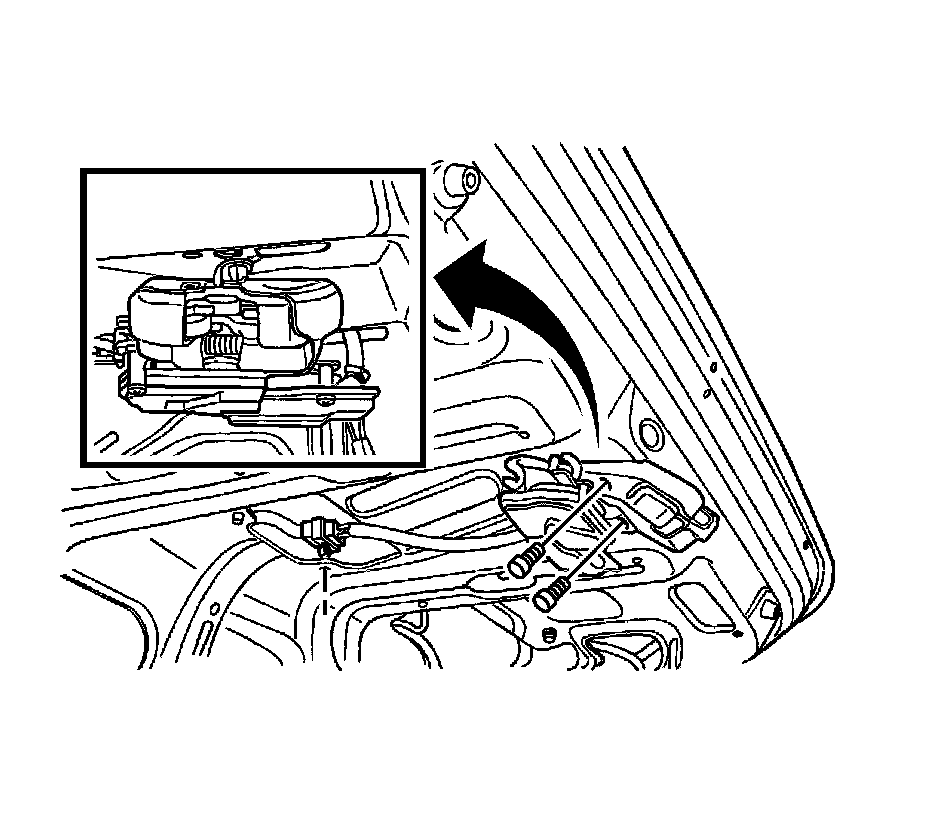

2. Remove the luggage compartment lock cover.
3. Disconnect the electrical connector.
4. Remove the screws and the luggage compartment lock.
5. Disconnect the lock rod.

Installation Procedure




1. Connect the lock rod.

Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

2. Install the luggage compartment lock with the screws.

Tighten the luggage compartment lock screws to 8 Nm (71 lb in).

3. Connect the electrical connector.
4. Install the luggage compartment lock cover.
5. Connect the negative battery cable.
