Seat Adjuster Replacement - Driver Side

Seat Adjuster Replacement - Driver Side

Removal Procedure




1. Remove the driver seat. Refer to Seat Replacement - Front Bucket Seat Replacement - Front Bucket.
2. Remove the front seat cushion. Refer to Seat Cushion Replacement - Front Seat Cushion Replacement - Front.

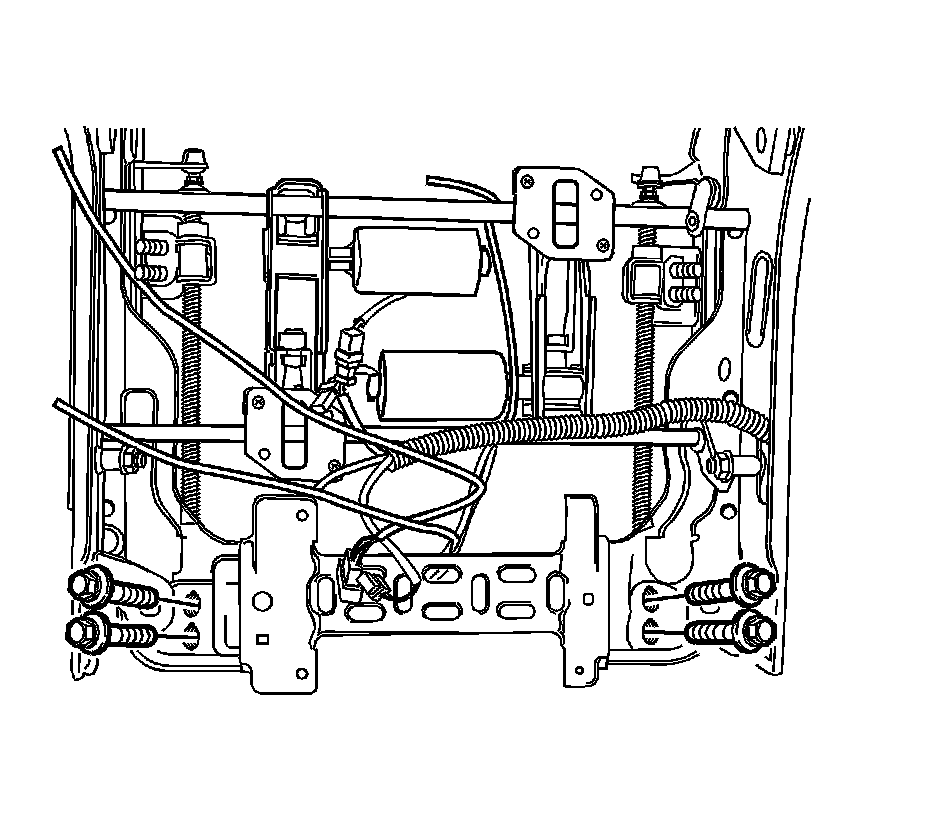

3. Disconnect the electrical connector.
4. Remove the bolts the screws, and the slide assembly.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the slide assembly with the bolts and the screws.

Tighten
* Tighten the slide assembly bolts to 25 Nm (18 lb ft).
* Tighten the slide assembly screws to 10 Nm (89 lb in).

2. Connect the electrical connector.
3. Install the front seat cushion. Refer to Seat Cushion Replacement - Front Seat Cushion Replacement - Front.
4. Install the driver seat. Refer to Seat Replacement - Front Bucket Seat Replacement - Front Bucket.
