Rear Door Weatherstrip: Service and Repair

Weatherstrip Replacement - Rear Door Opening

Removal Procedure




1. Remove the rear rocker panel and the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar in Interior Trim.

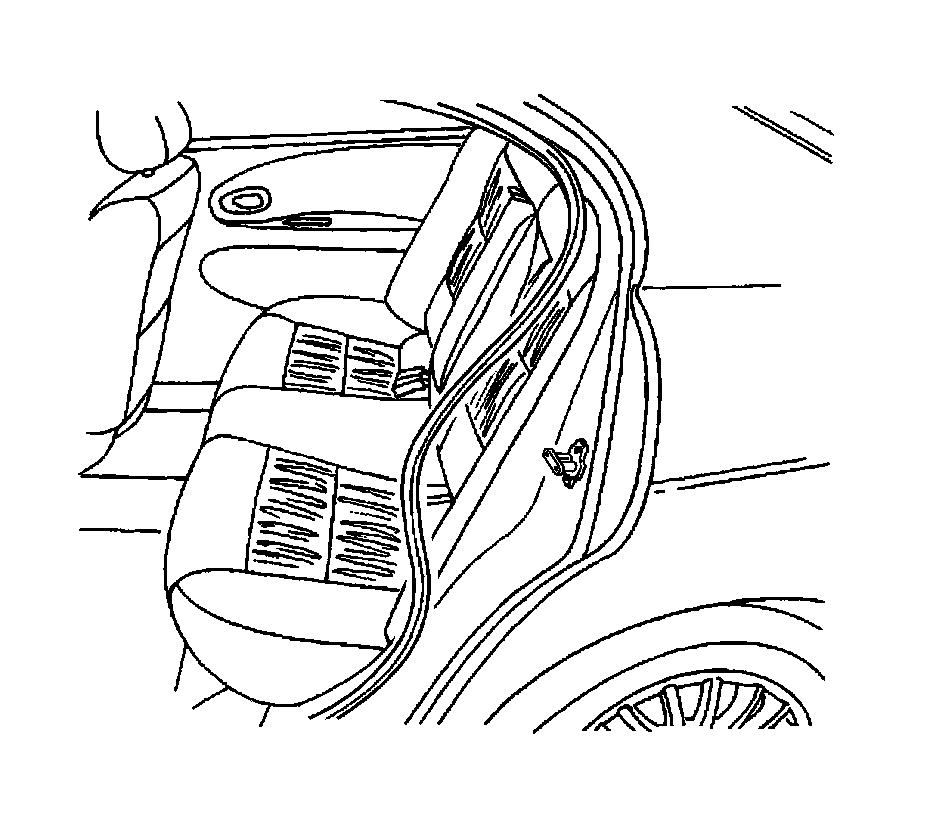

2. Remove the rear door opening weatherstrip.

Installation Procedure




1. Install the rear door opening weatherstrip.
2. Install the rear rocker panel and the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar Trim Panel Replacement - Lower Center Pillar in Interior Trim.
