Brake Pads Replacement - Rear

Brake Pads Replacement - Rear

Removal Procedure





Caution: Refer to Vehicle Lifting Caution Vehicle Lifting Caution in Cautions and Notices.

Notice: Refer to Vehicle Lifting and Jacking Notice Vehicle Lifting and Jacking Notice in Cautions and Notices.

1. Raise and suitably support the vehicle.
2. Remove the rear wheels. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.

Important: Caliper removal is not necessary to service the brake pads.


3. Remove the lower caliper guide pin bolt.




4. Pivot the caliper upward.

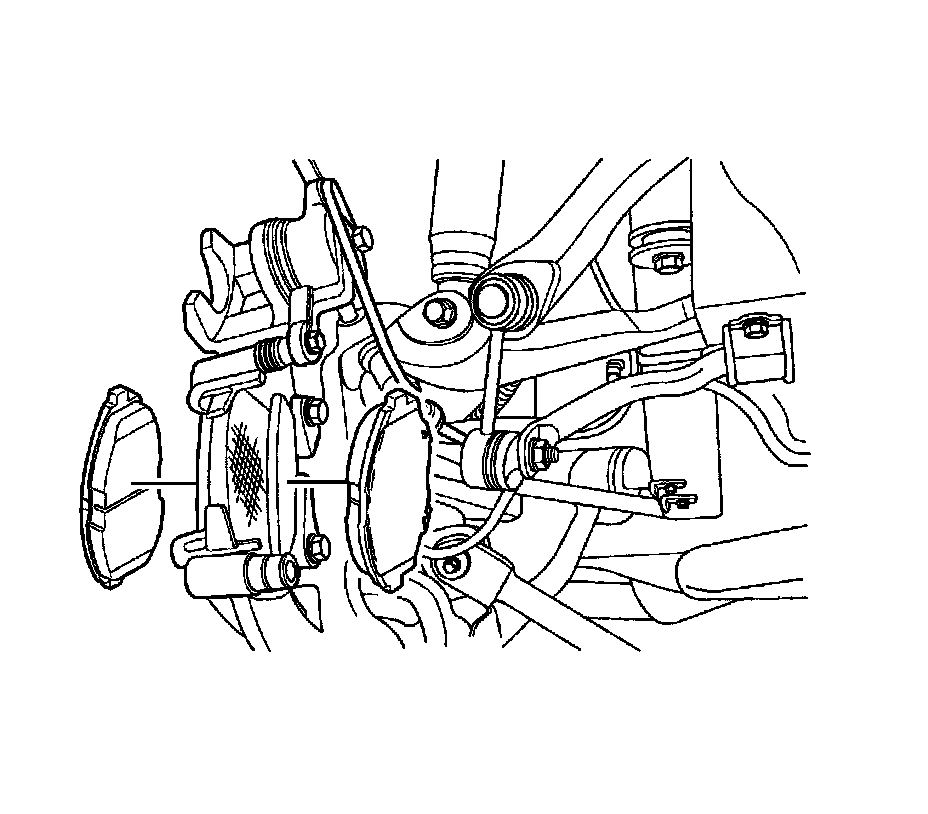

5. Remove the brake shoes.

Installation Procedure




1. Measure the minimum brake shoe lining thickness. Refer to Brake Pad Inspection Testing and Inspection.
2. Install the brake shoes into the caliper.
3. Push the piston inward, if needed.





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

Important: Avoid damaging the piston seal when the piston housing is pulled down.

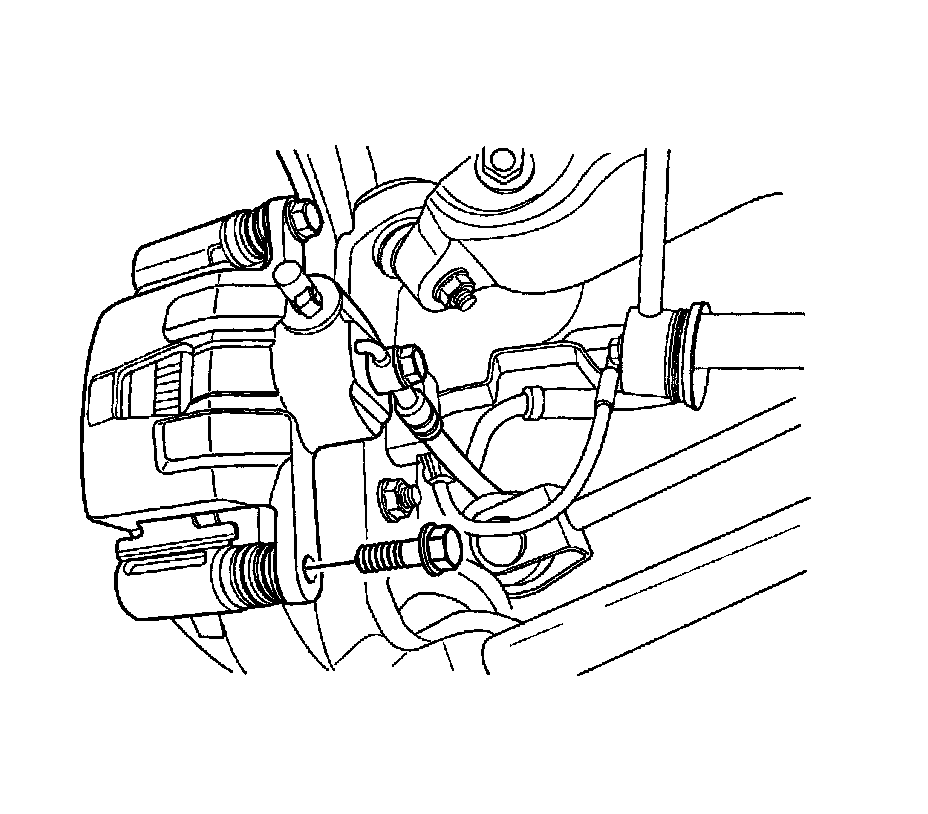

4. Pivot the caliper downward and install the bolt.

Tighten the lower caliper mounting bolt to 31 Nm (23 lb ft).

5. Install the rear wheels. Refer to Tire and Wheel Removal and Installation Service and Repair in Tires and Wheels.
6. Lower the vehicle.
