Antilock Brake System Schematics

ABS Schematics

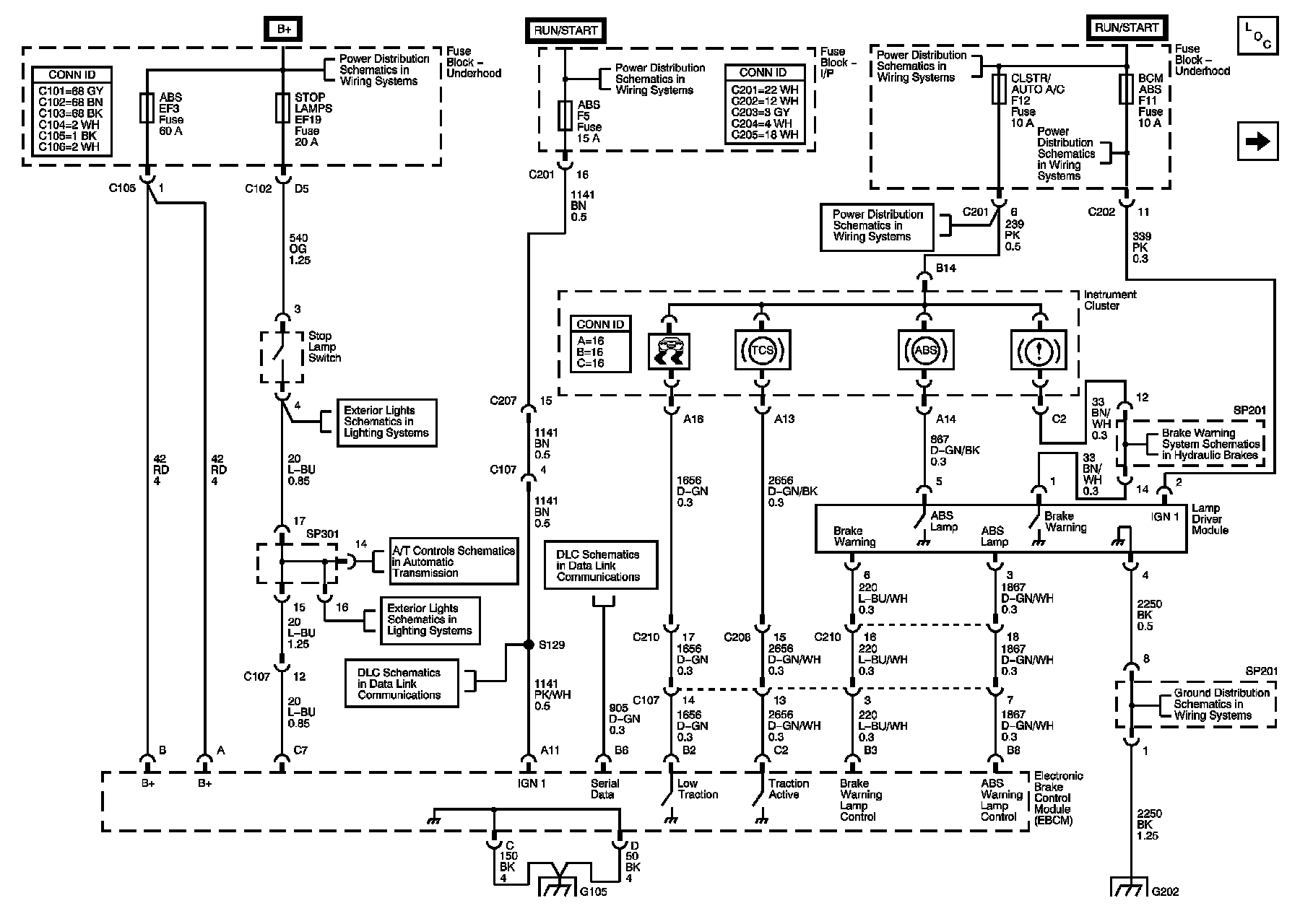

Power, Ground, Warning Lamps, Stop Lamp Switch

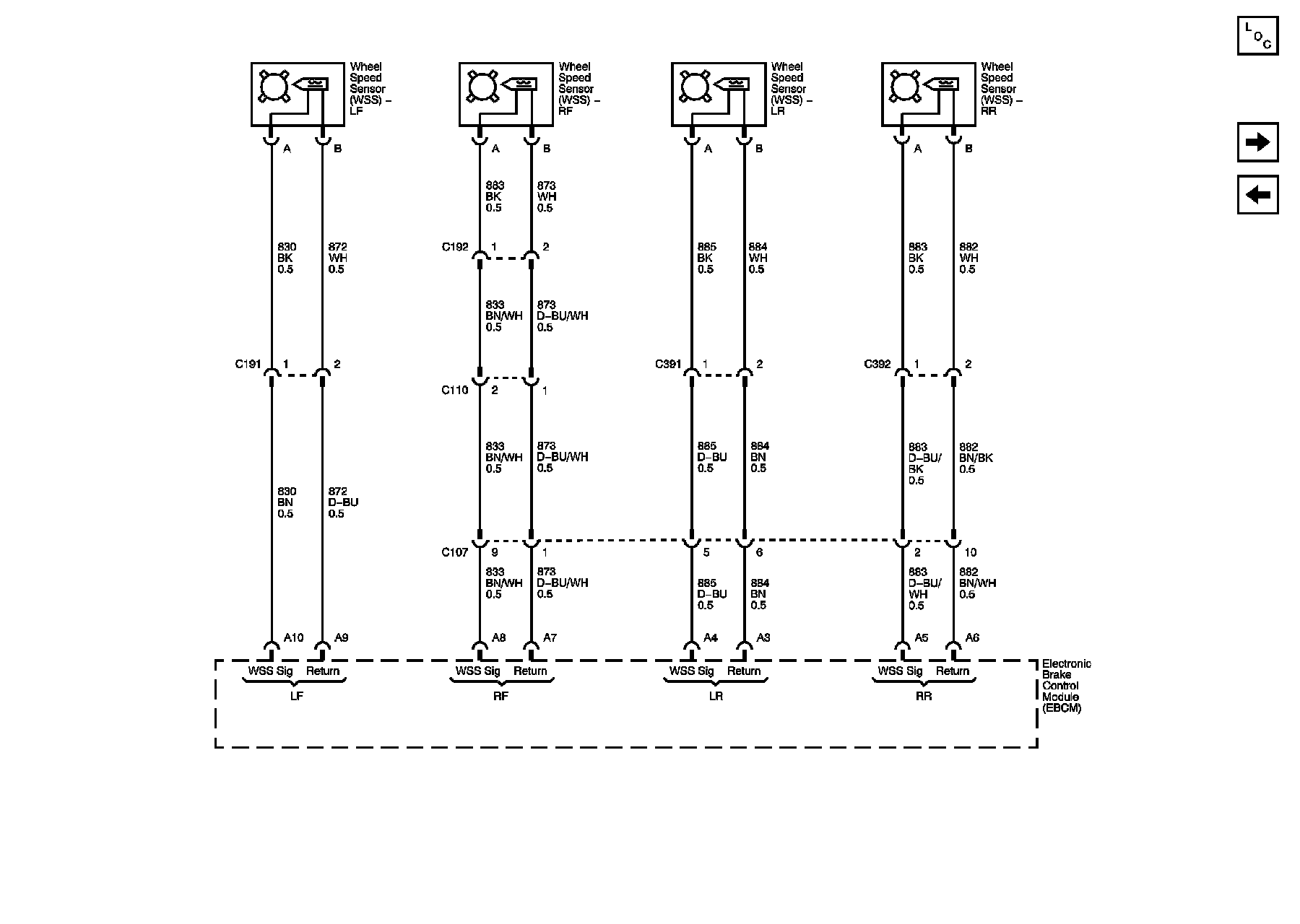

Wheel Speed Sensors, Electronic Brake Control Module (EBCM)

Traction Control System (TCS) Switch, Serial Data
