Heated Glass Element
Heated Glass Element

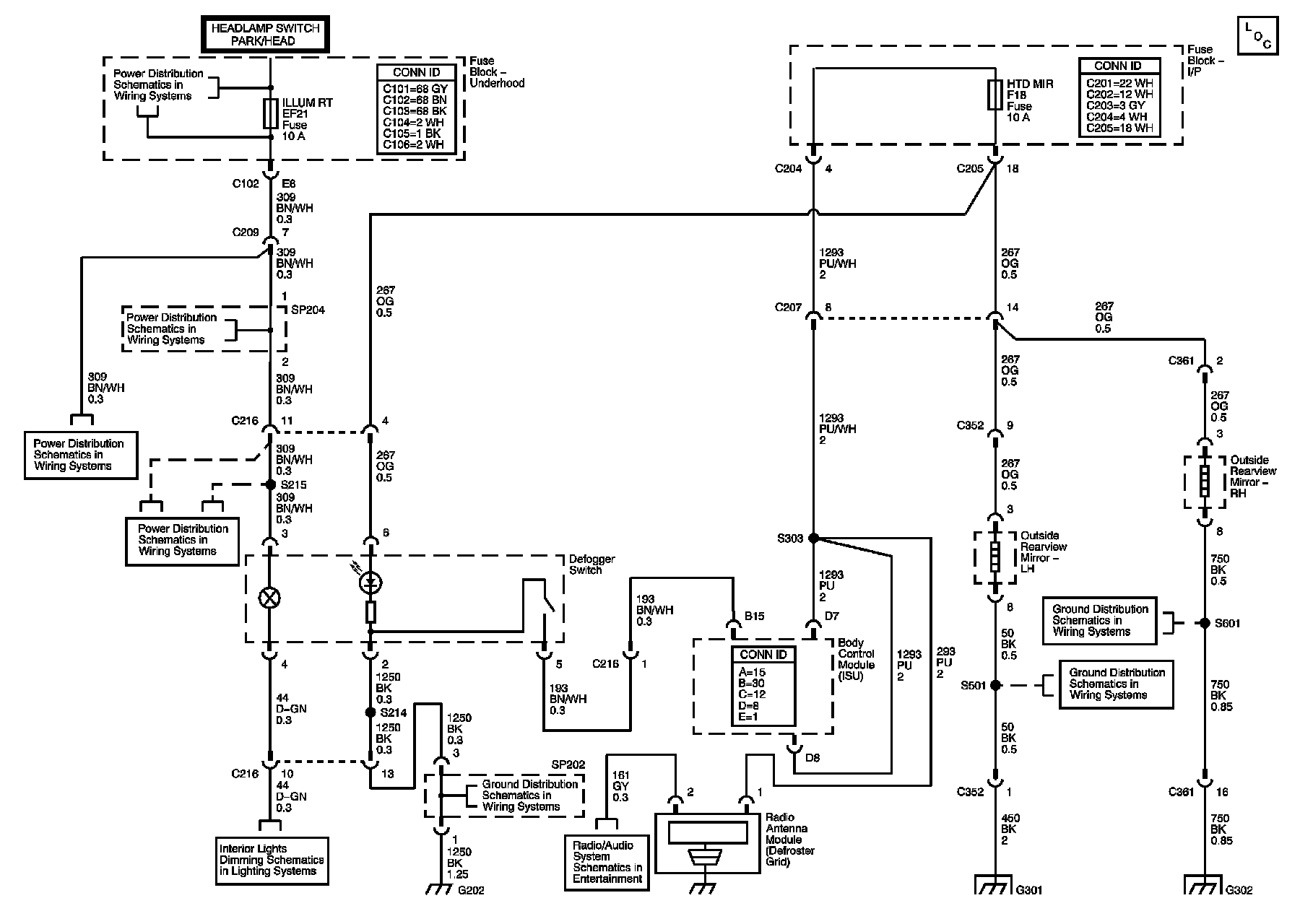

Defogger Schematics
Defogger Schematics

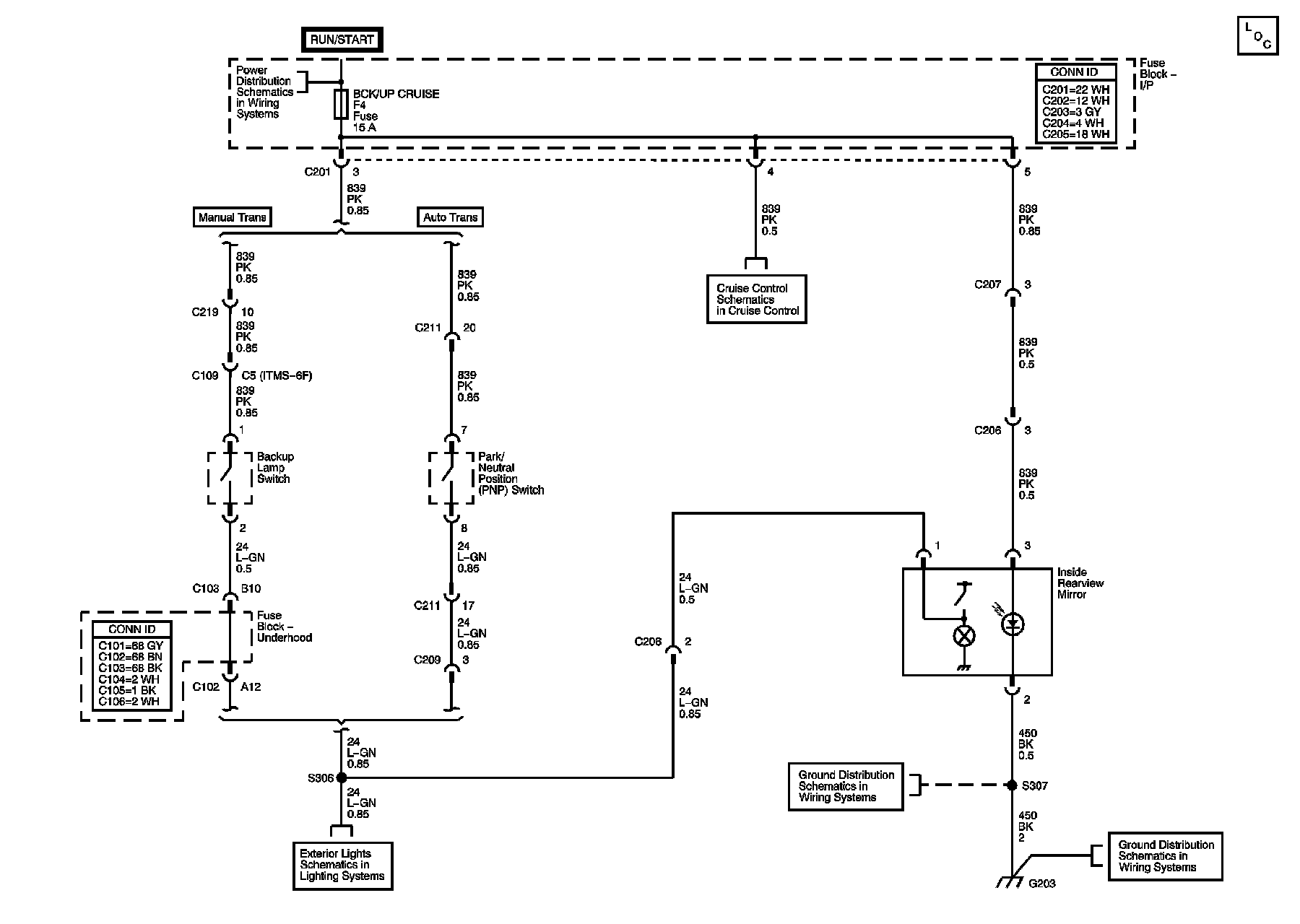

Inside Rearview Mirror Schematic
