Manual Transmission/Transaxle

Manual Transmission Schematics

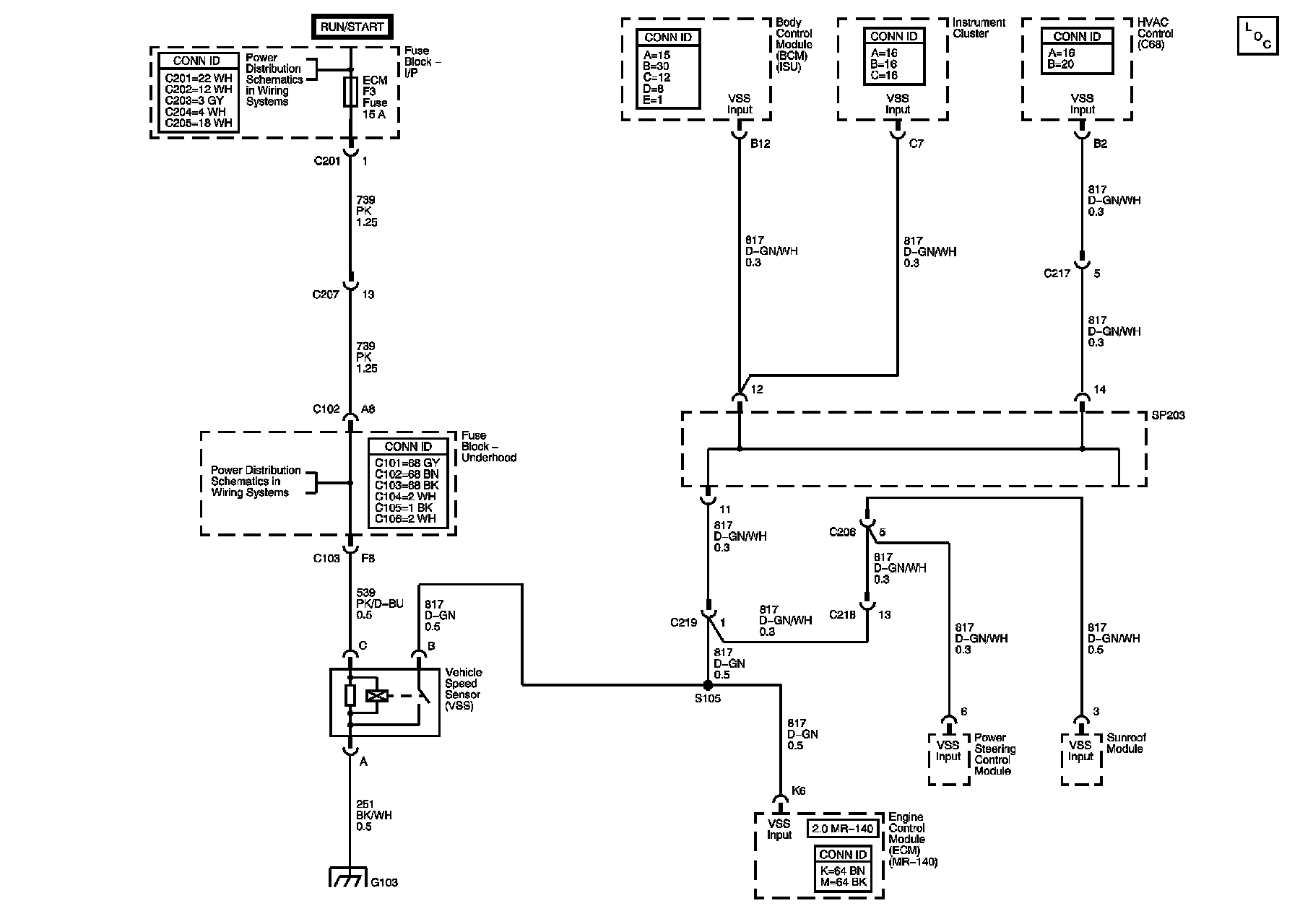

Vehicle Speed Sensor (VSS) - European Emissions

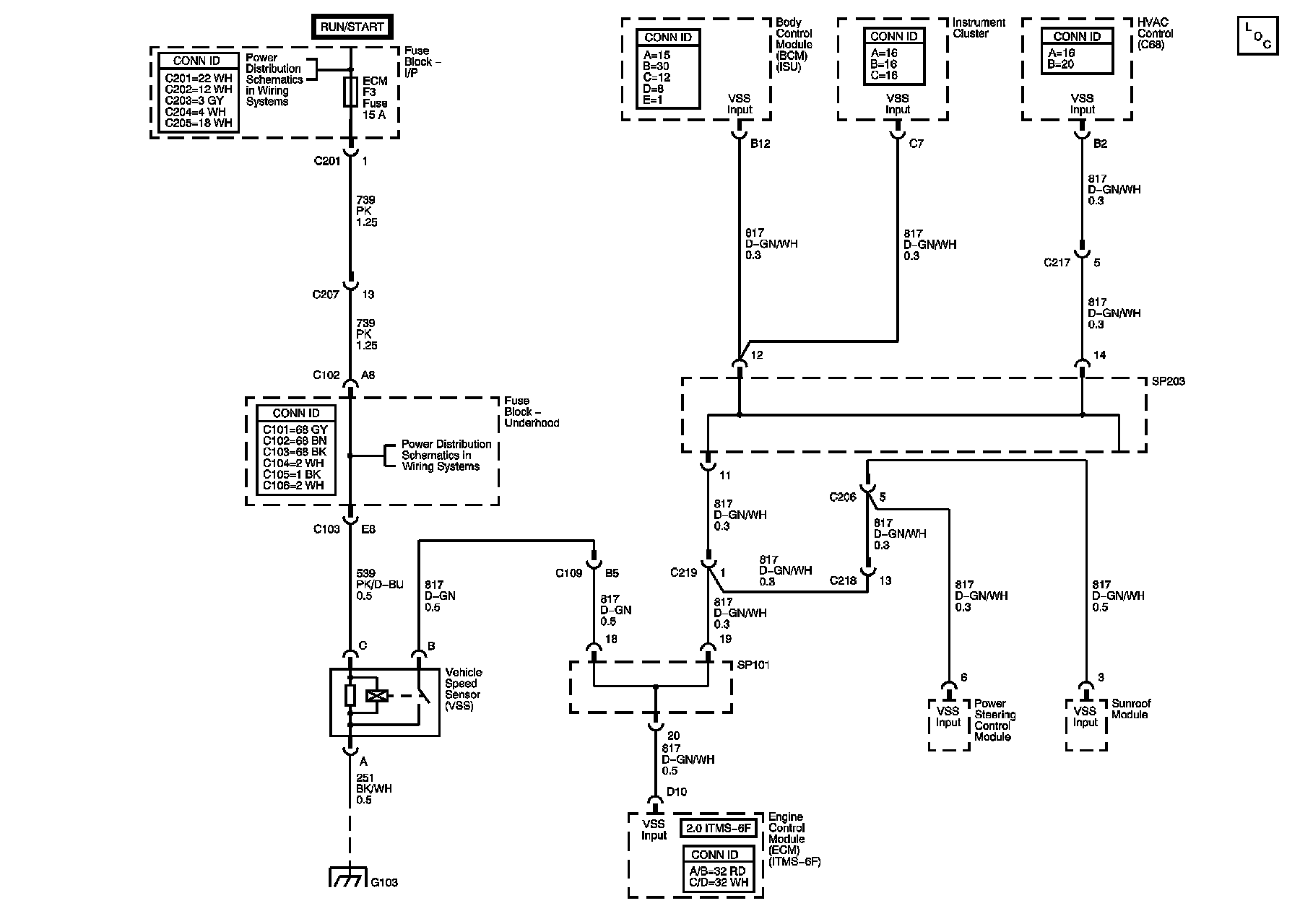

Vehicle Speed Sensor (VSS) - Non-European Emissions
