Shift Interlock, A/T

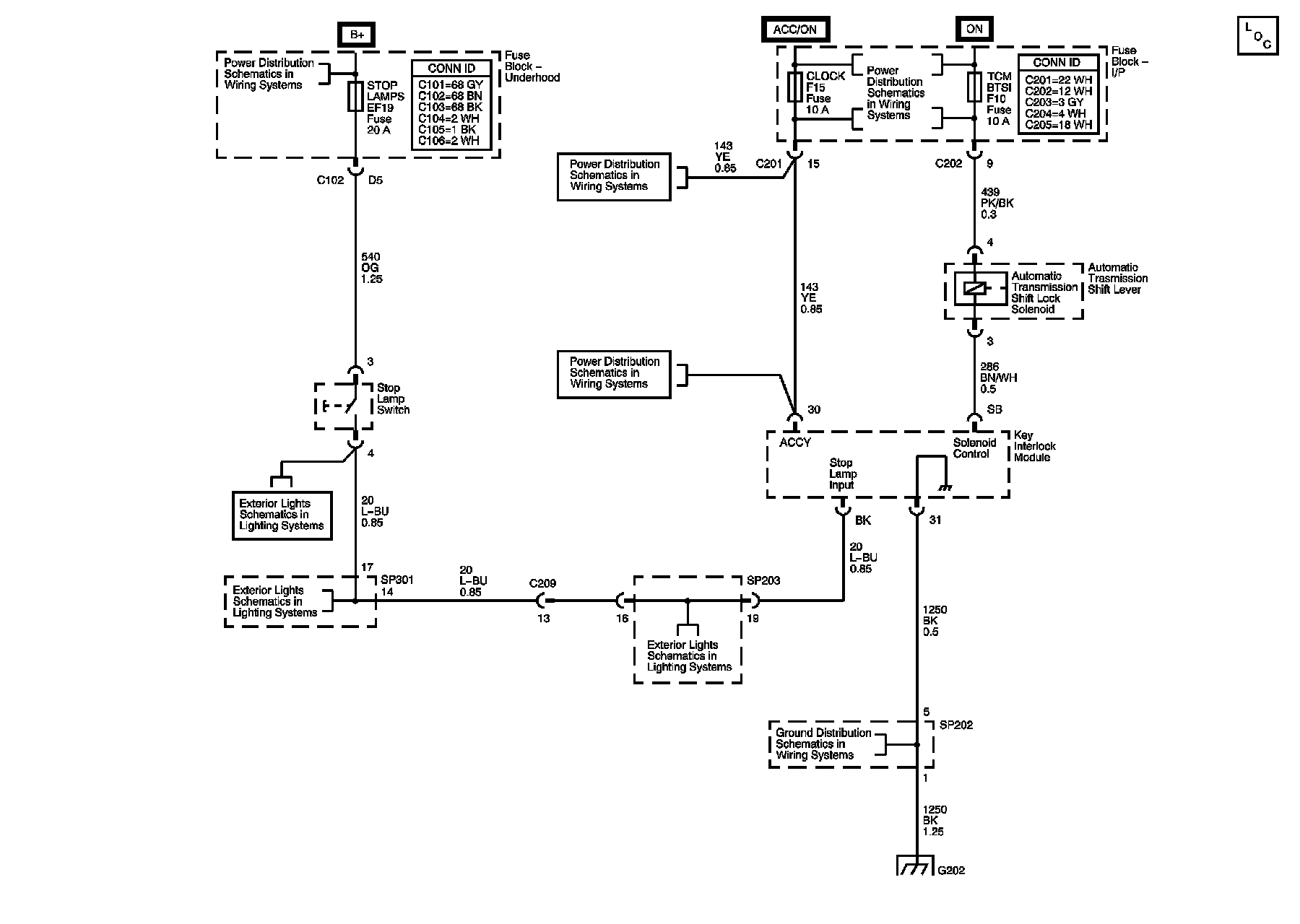

Automatic Transmission Shift Lock Control Schematics

Automatic Transmission Shift Lock Control - 2.0L





Automatic Transmission Shift Lock Control - 2.5L
