Home >> Chevrolet >> 2006 >> Epica (CANADA) L6-2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> System Diagram

System Diagram

Steering Controls Schematics

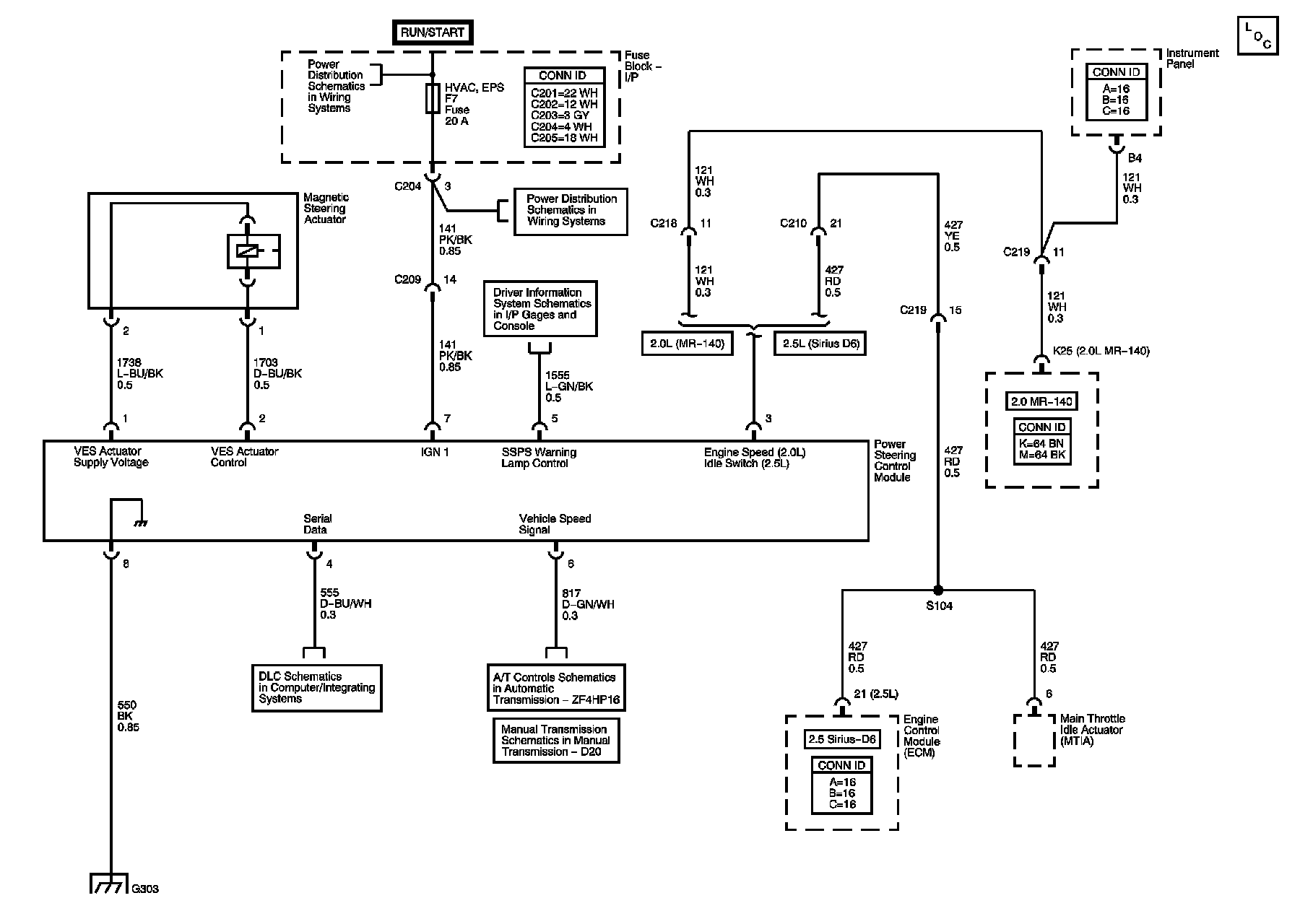

Variable Effort Steering Schematic
