Auxiliary Cabin Heater: Service and Repair

Heater Coolant Heater Temperature Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the glove box lower panel cover. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair.

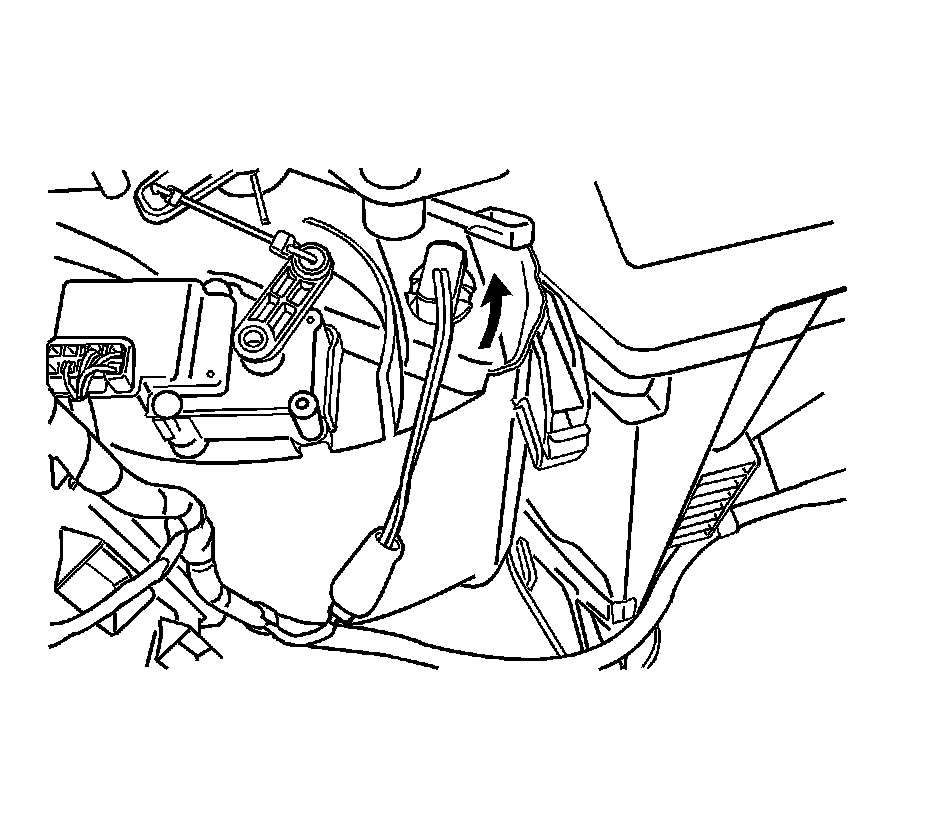

3. Turn the sensor to release it from the HVAC module.
4. Disconnect the electrical connector.

Installation Procedure




1. Install the coolant temperature sensor into the HVAC module and turn the sensor to lock it.
2. Connect the electrical connector.
3. Install the glove box lower panel cover. Refer to Storage Compartment Replacement - Instrument Panel (I/P) Service and Repair.
4. Connect the negative battery cable.
