Clock: Service and Repair

Clock Replacement

Removal Procedure




1. Remove the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster.

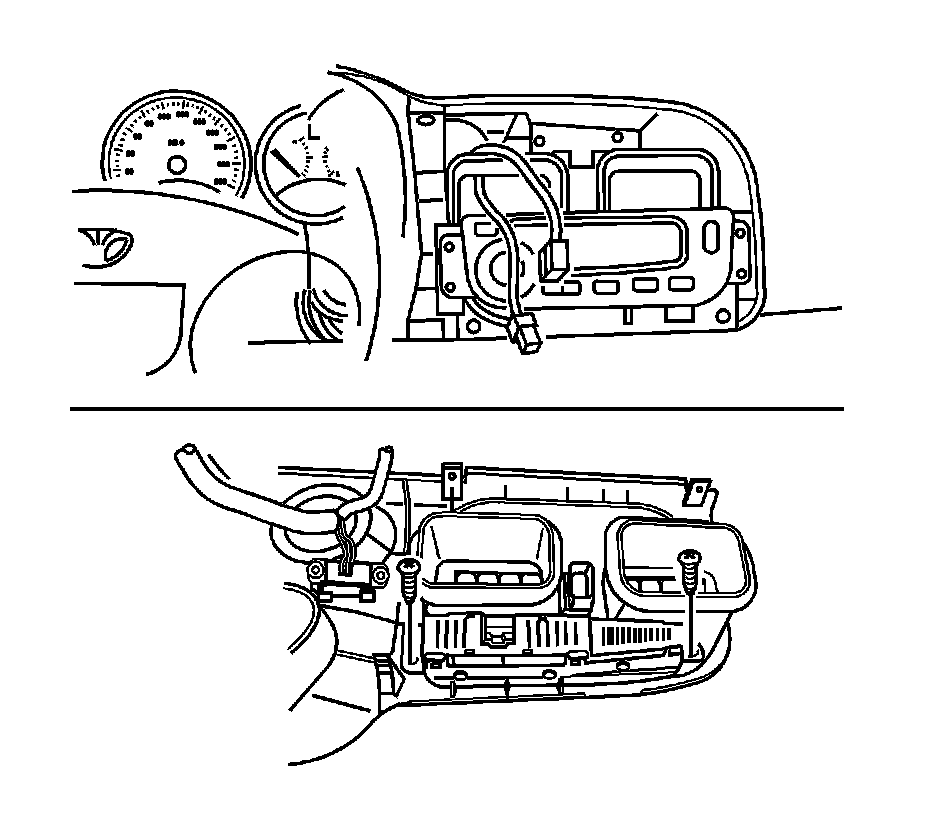

2. Remove the screws and the digital clock.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the digital clock with the screws.

Tighten the digital clock screws to 2.5 Nm (22 lb in).

2. Install the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster Trim Panel Replacement - Instrument Panel (I/P) Cluster.
