Instrument Panel, Gauges and Warning Indicators: Locations

Instrument Panel, Gages, and Console Component Views

Instrument Panel




1 - Instrument Cluster
2 - Ignition Switch
3 - Speaker (Tweeter) Right Front (Left Similar)
4 - Radio
5 - Shift Indicator Lamp - Automatic Transmission
6 - Fog Lamp Switch - Rear (w/ Rear Fog Lamps)
7 - Fog Lamp Switch/Front
8 - Ashtray Lamp

Instrument Panel Switches




1 - Shift Program Switch, Hold Mode Switch
2 - Cigar Lighter
3 - Daytime Running Lamp Module (w/ DRL)
4 - Clock
5 - Auxiliary Power Outlet
6 - Dimmer Control Switch (I/P)/Headlamp Leveling Switch
7 - Horn Switch

Instrument Panel Multifunction Switches




1 - Traction Control Switch (TCS)
2 - Windshield Wiper/Washer Switch
3 - Hazard Switch
4 - I/P Compartment Lamp/Switch
5 - Headlamp Switch, Turn Signal/ Multifunction Switch

Body Control Module (BCM), Defogger Switch and Eletrochonic Mirror




1 - Body Control Module (BCM)
2 - Defogger Switch
3 - Inside Rearview Mirror
4 - Cruise Control Switch
5 - Cruise Control Module

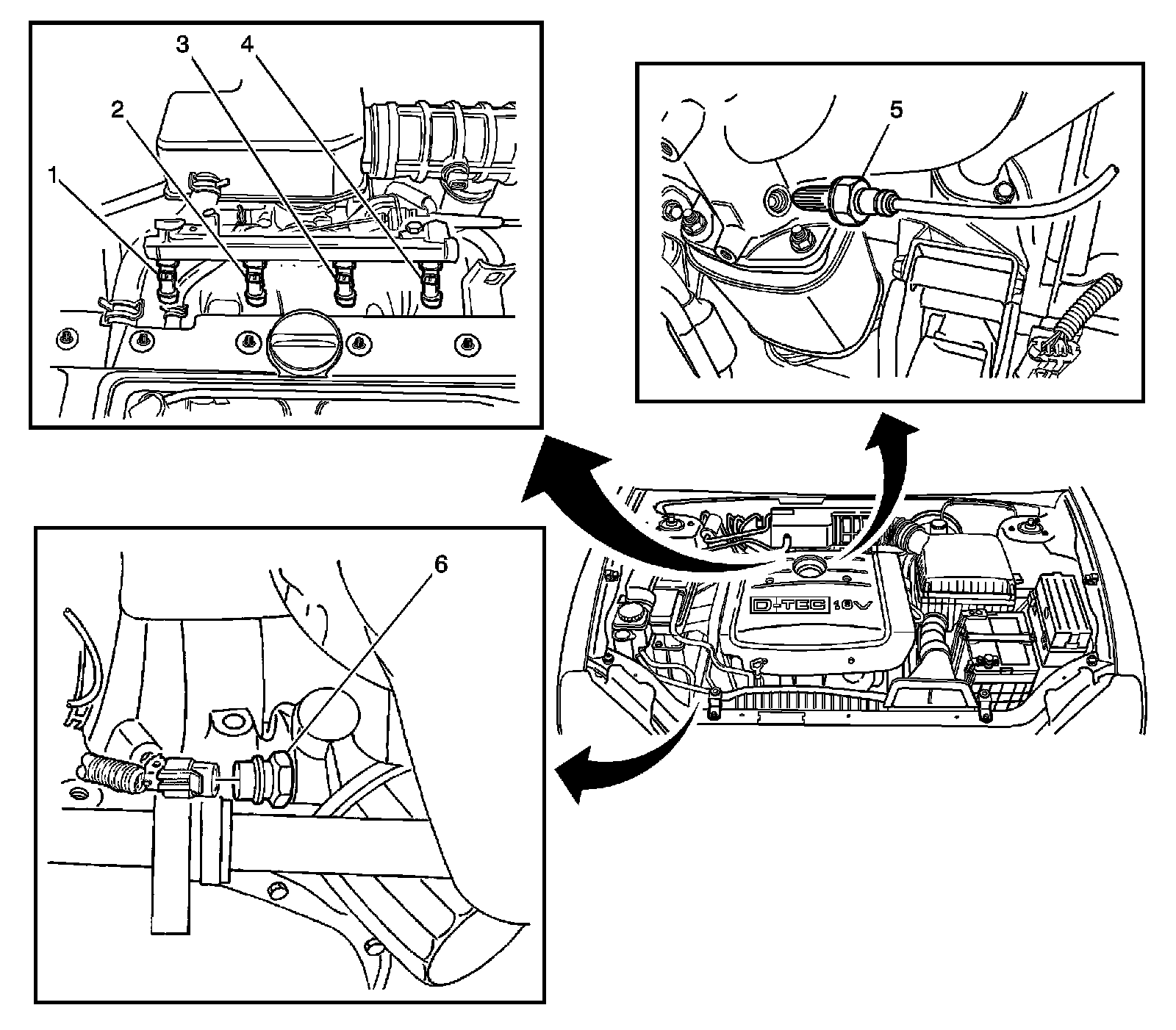

Oil Pressure Switch (2.0L)




1 - Fuel Injector 1 (2.0L)
2 - Fuel Injector 2 (2.0L)
3 - Fuel Injector 3 (2.0L)
4 - Fuel Injector 4 (2.0L)
5 - Oxygen Sensor
6 - Oil Pressure Switch

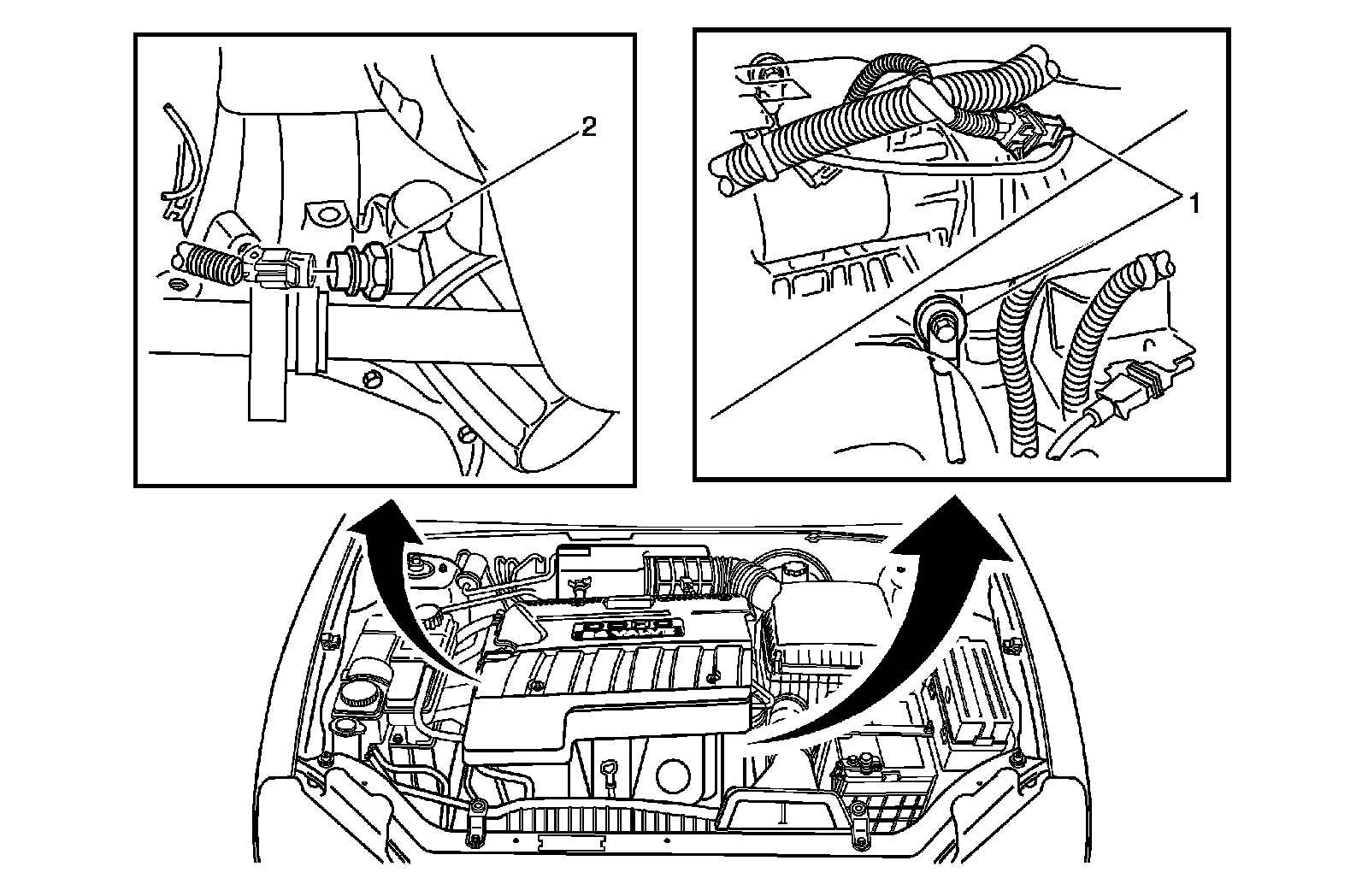

Oil Pressure Switch (2.5L)




1 - Knock Sensor (KS) and Connector
2 - Oil Pressure Switch
