Tachometer: Service and Repair

Tachometer Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

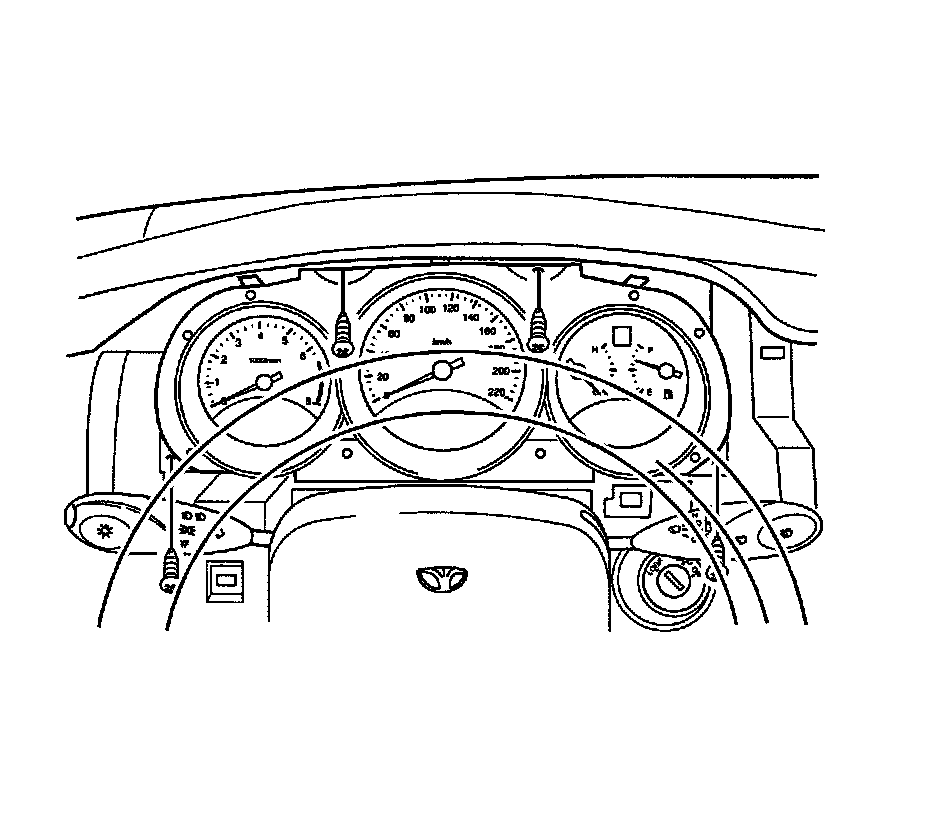

2. Remove the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement Instrument Panel Cluster (IPC) Replacement.
3. Press the clips down and remove the instrument cluster lens.

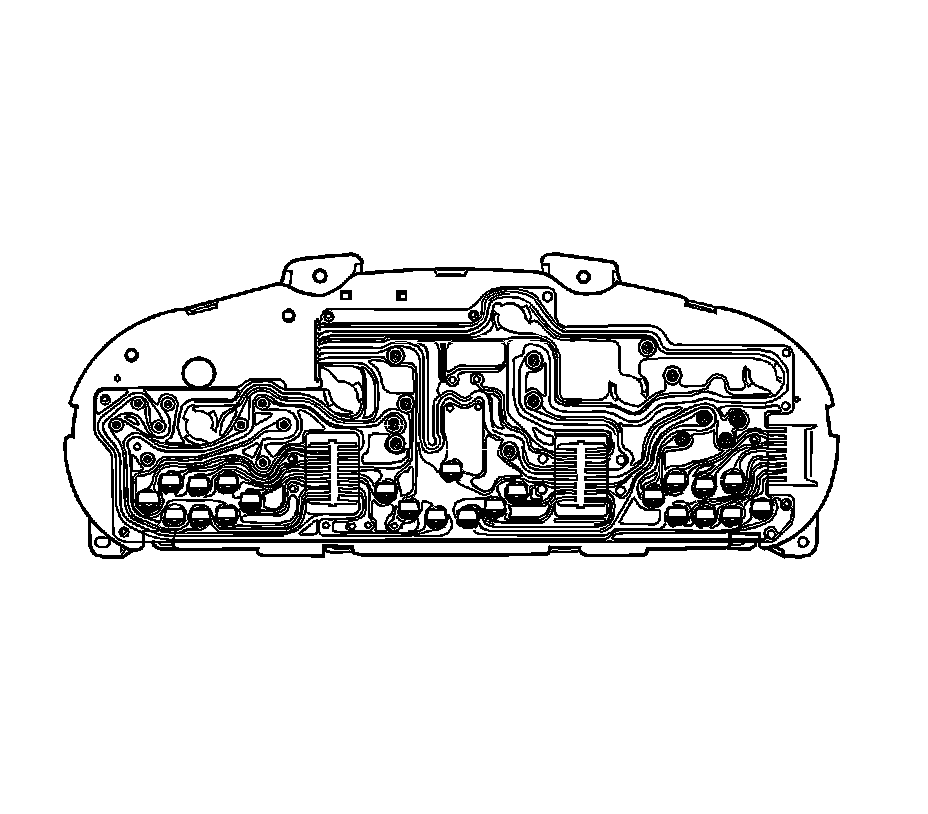

4. Remove the tachometer from the instrument cluster.

Installation Procedure




1. Install the tachometer to the instrument cluster.
2. Install the instrument cluster lens.




3. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement Instrument Panel Cluster (IPC) Replacement.
4. Connect the negative battery cable.
