Steering Column: Locations

Steering Wheel and Column Component Views

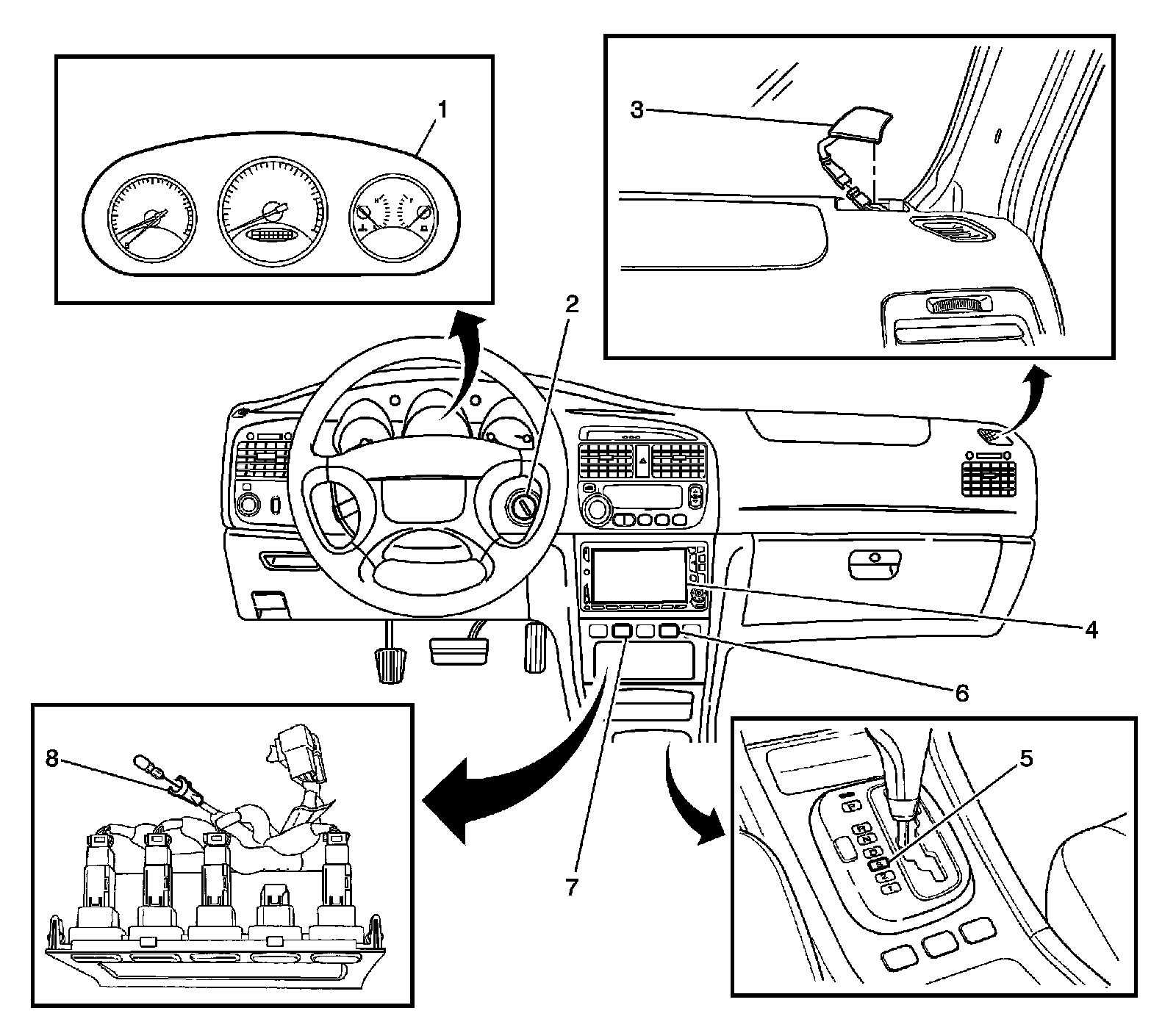

Ignition Switch




1 - Instrument Cluster
2 - Ignition Lock Cylinder Control Actuator
3 - Speaker (Tweeter) Right Front (Left Similar)
4 - Radio
5 - Shift Indicator Lamp (Automatic Transmission)
6 - Fog Lamp Switch - Rear (w/ Rear Fog Lamps)
7 - Fog Lamp Switch - Front
8 - Ashtray Lamp

Shift Select Control




1 - Fastener Plate
2 - Park Position Switch
3 - Spring
4 - BTSI Button
5 - Gear Shift Knob
6 - Cover
7 - Step Gate Slider
8 - Positioning Spring
9 - Spring
10 - Safety Stopper
11 - A/T Shift Lock Solenoid
12 - A/T Shift Lock Solenoid Lever
13 - Base Plate
14 - Select Cable
15 - Cable Fastener
16 - T/A Lever
17 - E-Ring
18 - Base Plate Front
19 - Nut
20 - Selector Control Isolator
