Lateral Link Replacement (Front)

Lateral Link Replacement (Front)

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair in General Information.
2. Remove the rear wheels.

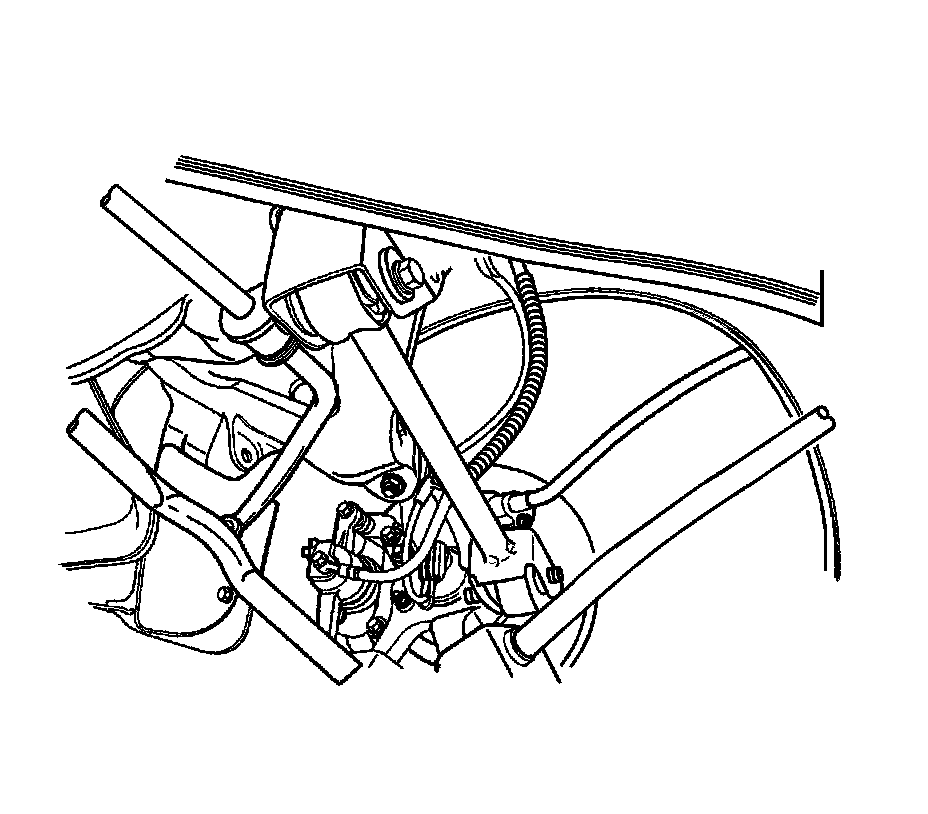

3. Remove the rear parallel link bolt-to-knuckle and the bolt-to-rear crossmember.
4. Remove the rear parallel link.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

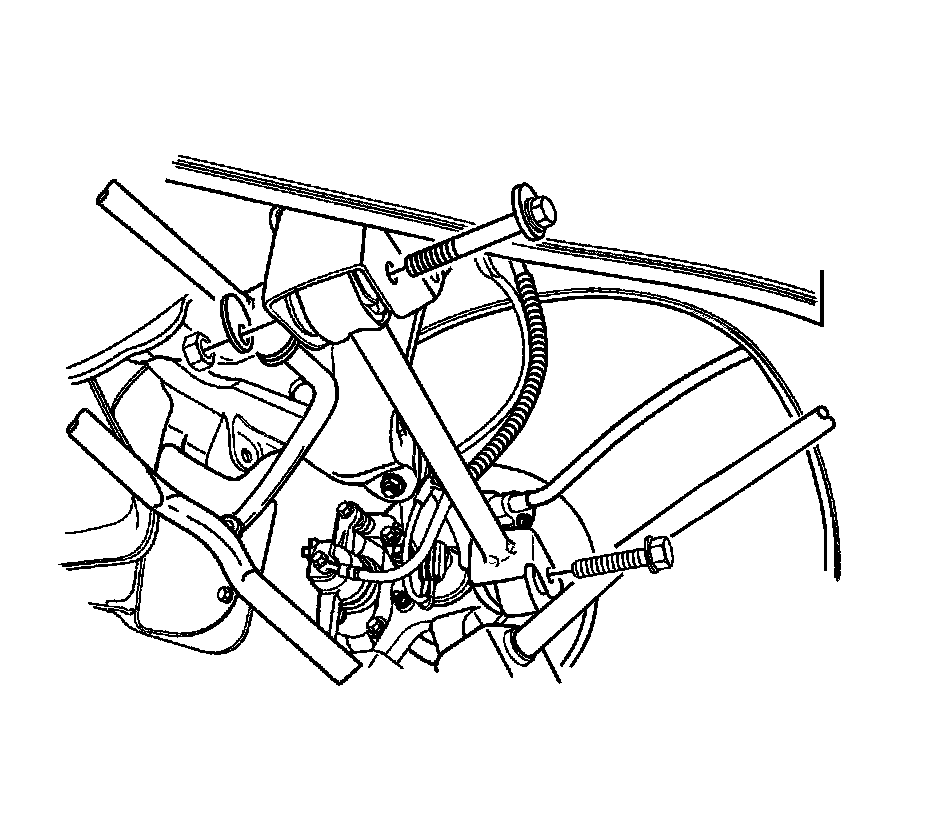

1. Install the front parallel link bolt-to-knuckle and the cam bolt-to-rear crossmember.

Tighten the front parallel link bolt-to-knuckle to 110 Nm (81 lb ft).

2. Adjust the rear toe, if needed. Refer to Rear Toe Adjustment Rear Toe Adjustment in Wheel Alignment.
3. Tighten the front parallel link cam bolt-to-crossmember.

Tighten the cam bolt to 80 Nm (59 lb ft).
