31. Brake C/D Disassemble

Brake C/D Disassemble

Tools Required

DT 46484 (DW260-160) Brake C/D Snap Ring Remover/Installer

Disassembly Procedure

Caution: Refer to Safety Glasses Caution Safety Glasses Caution in Cautions and Notices.




1. Remove the snap ring from the transaxle housing.

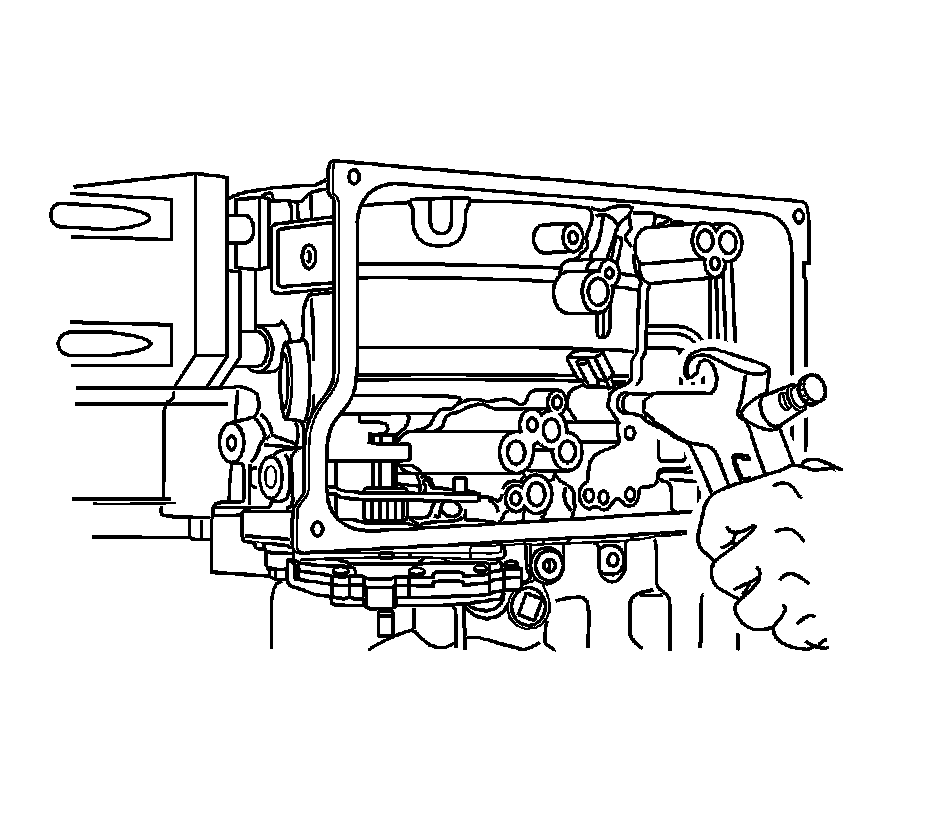

2. Release the cylinder with piston C by applying compressed air to the feed bore.




3. Remove the cylinder from piston C.




4. Remove disc carrier C/D and the spring disc from the transaxle housing.

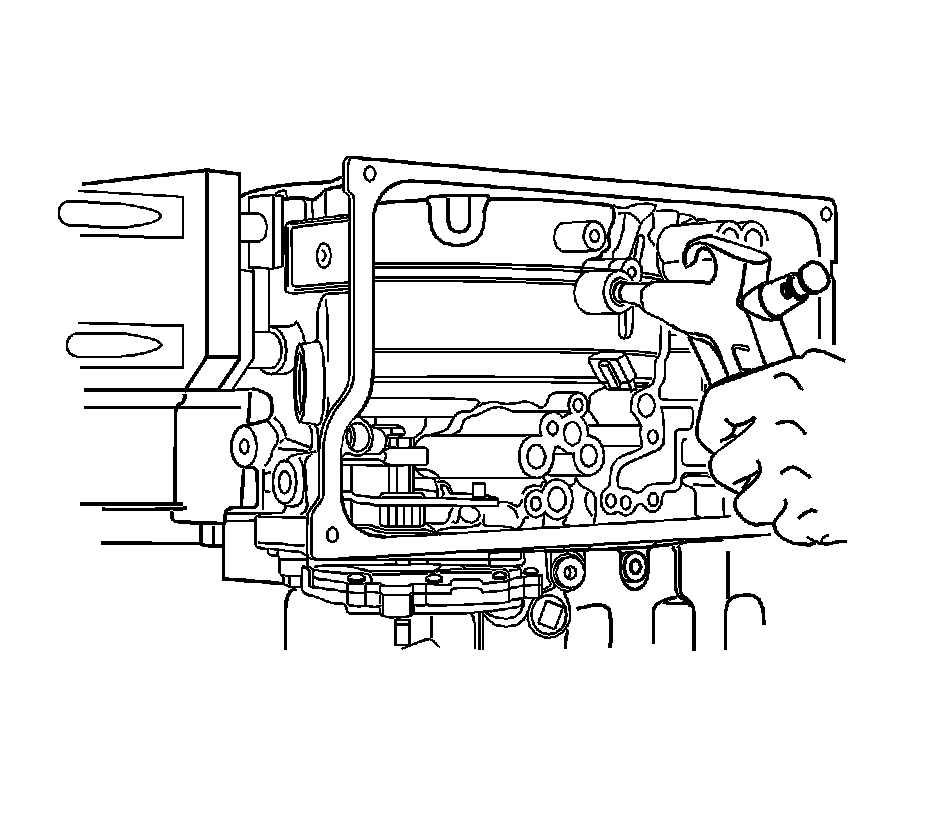

5. Release the cylinder with piston D by applying compressed air to the feed bore.




6. Remove the cylinder with piston C.




7. Separate piston C from cylinder C.




8. Remove the snap ring from brake C.




9. Remove the disc set C.




10. Rotate the disc carrier C/D one-half turn.
11. Using the DT 46484 (1) , press down on the cup spring. Remove the snap ring.




12. Remove the disc set D.
