Heated Glass Element
Heated Glass Element

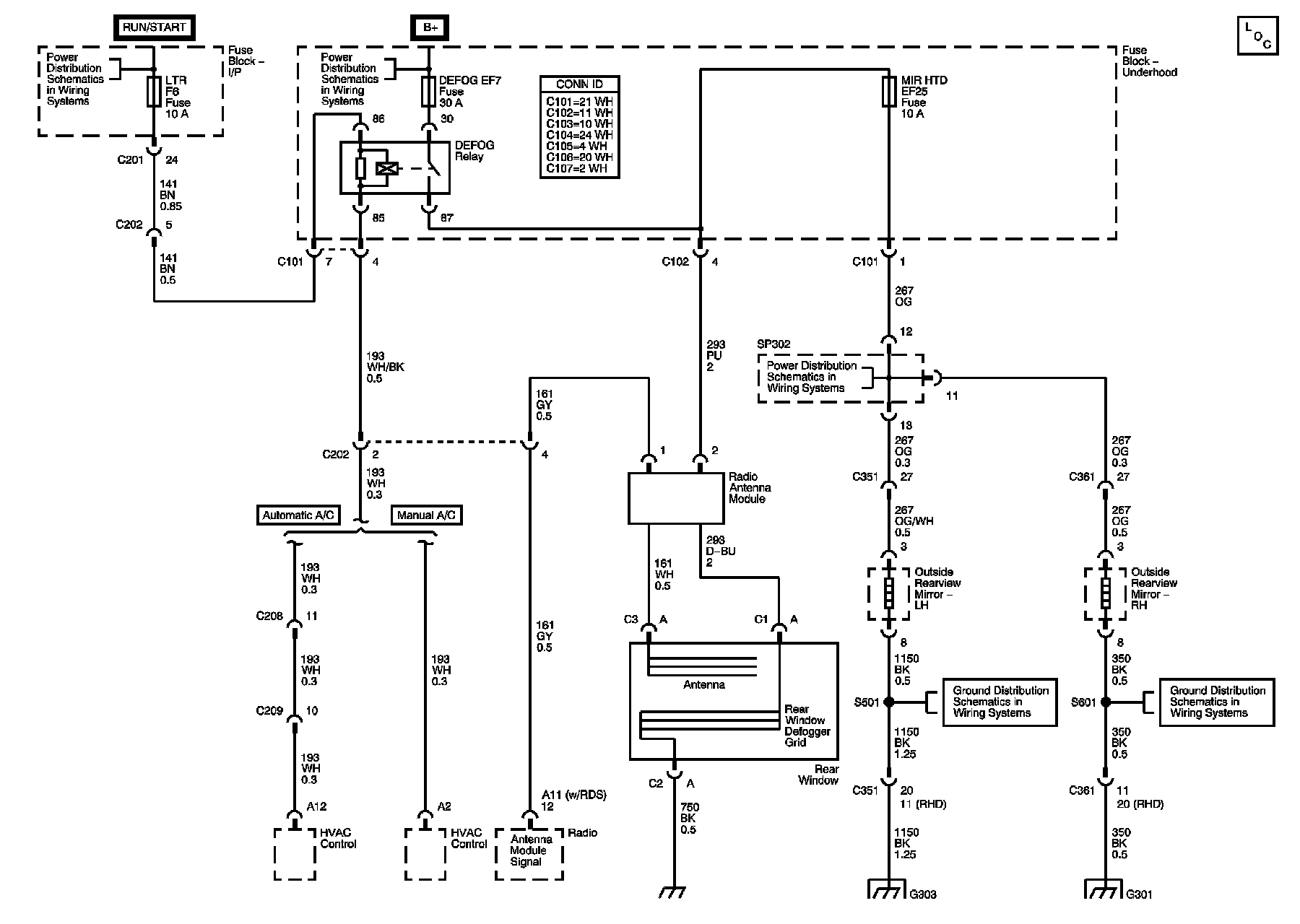

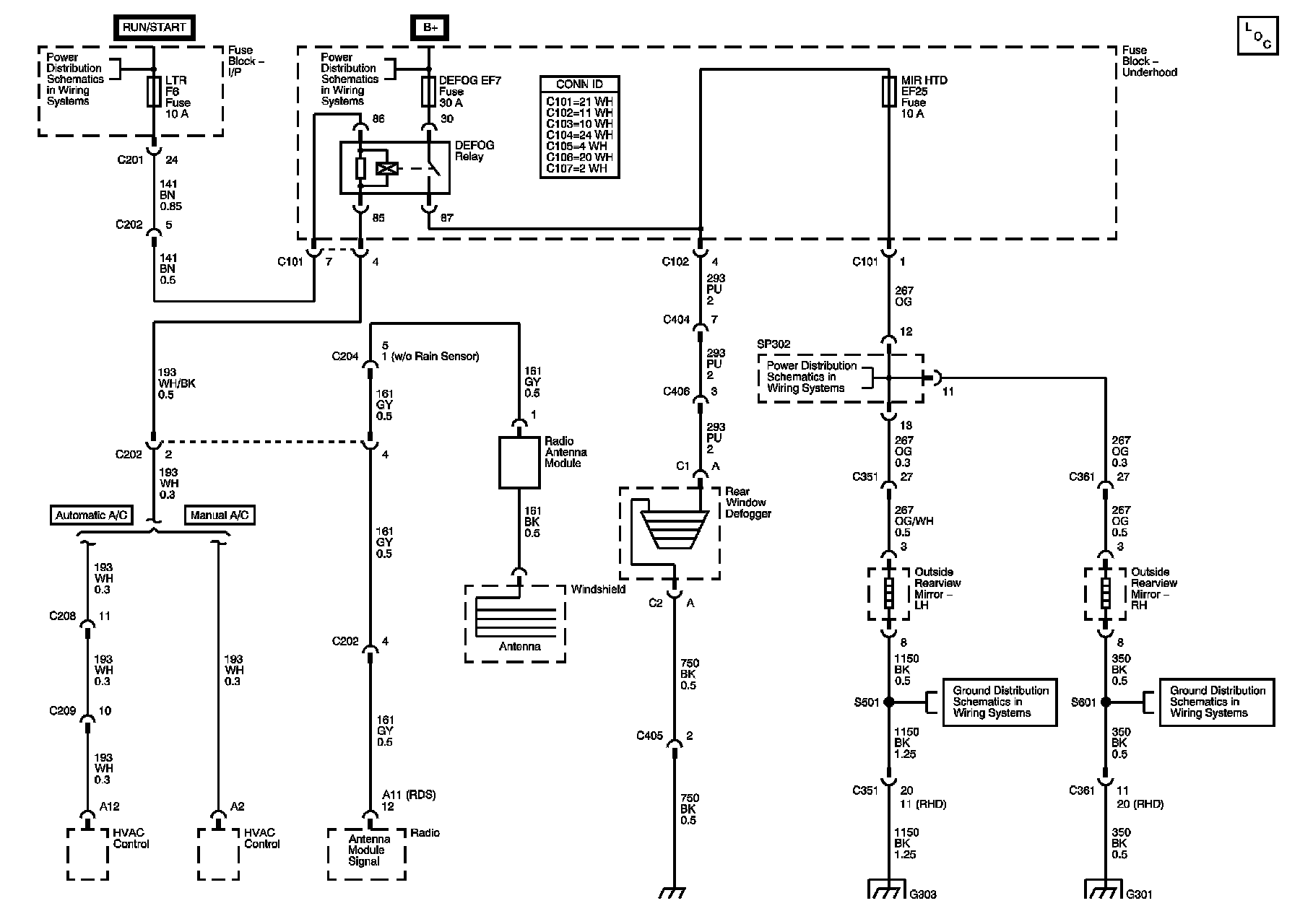

Defogger Schematics
Stationary
Windows
- Notchback
Stationary
Windows
- Hatchback
