Radio, Stereo, and Compact Disc
>>

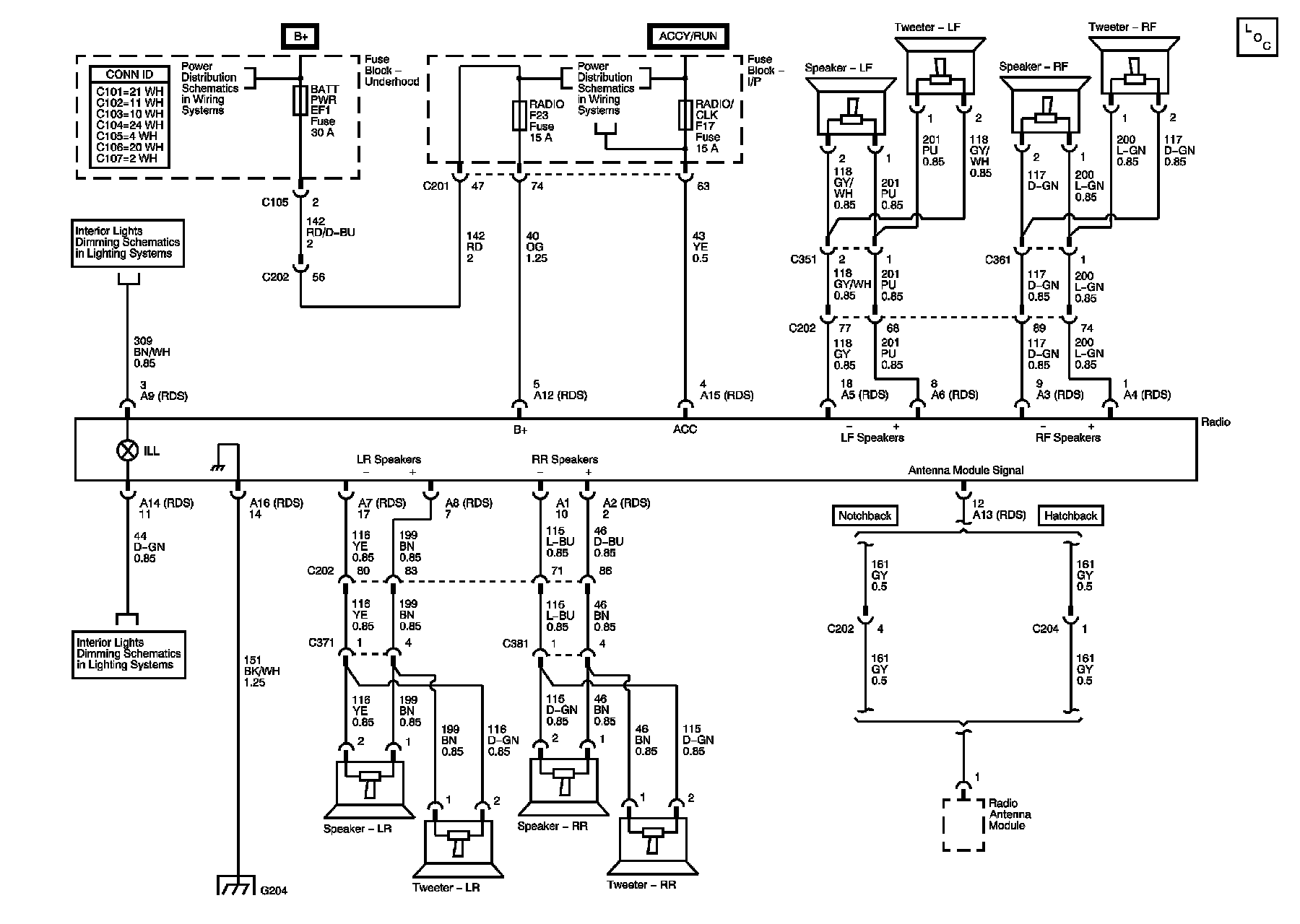

Radio/Audio System Schematics
Radio/Audio System Schematics
Radio/Audio System Schematics
