Clock Replacement (Four Door)

Clock Replacement (Four Door)

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the center molding.
3. Disconnect the electrical connector.

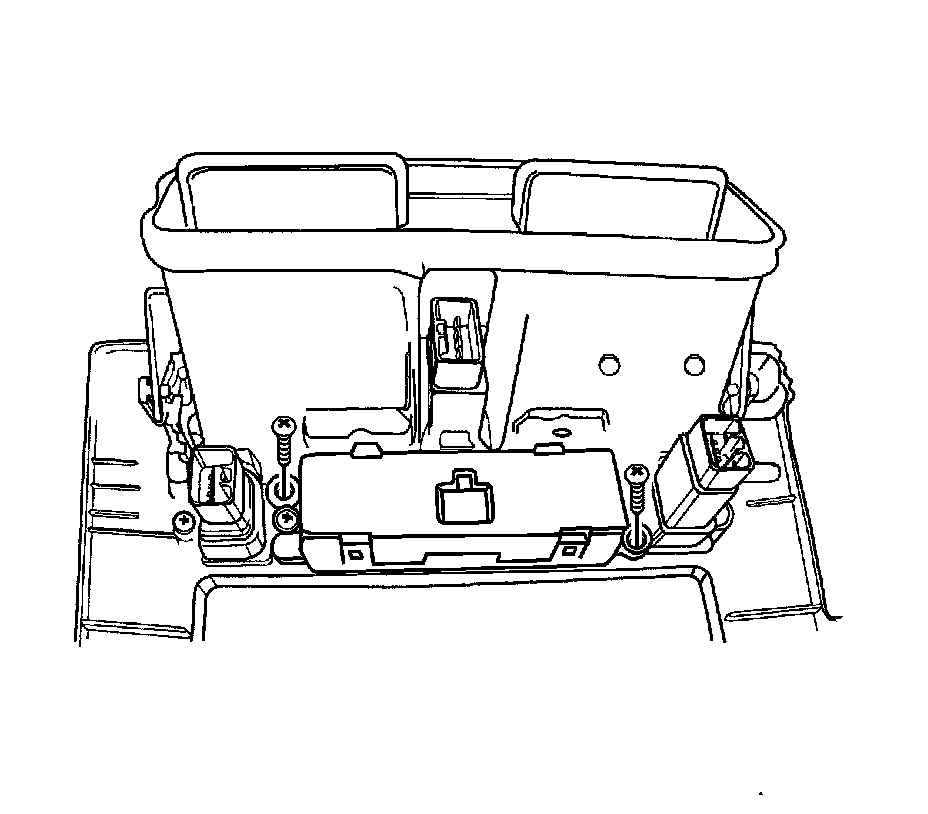

4. Remove the screws and digital clock.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the digital clock with the screws.
2. Connect the electrical connector.
3. Install the center molding.
4. Connect the negative battery cable.
