Seat Belt Tensioner




Component Connector End Views

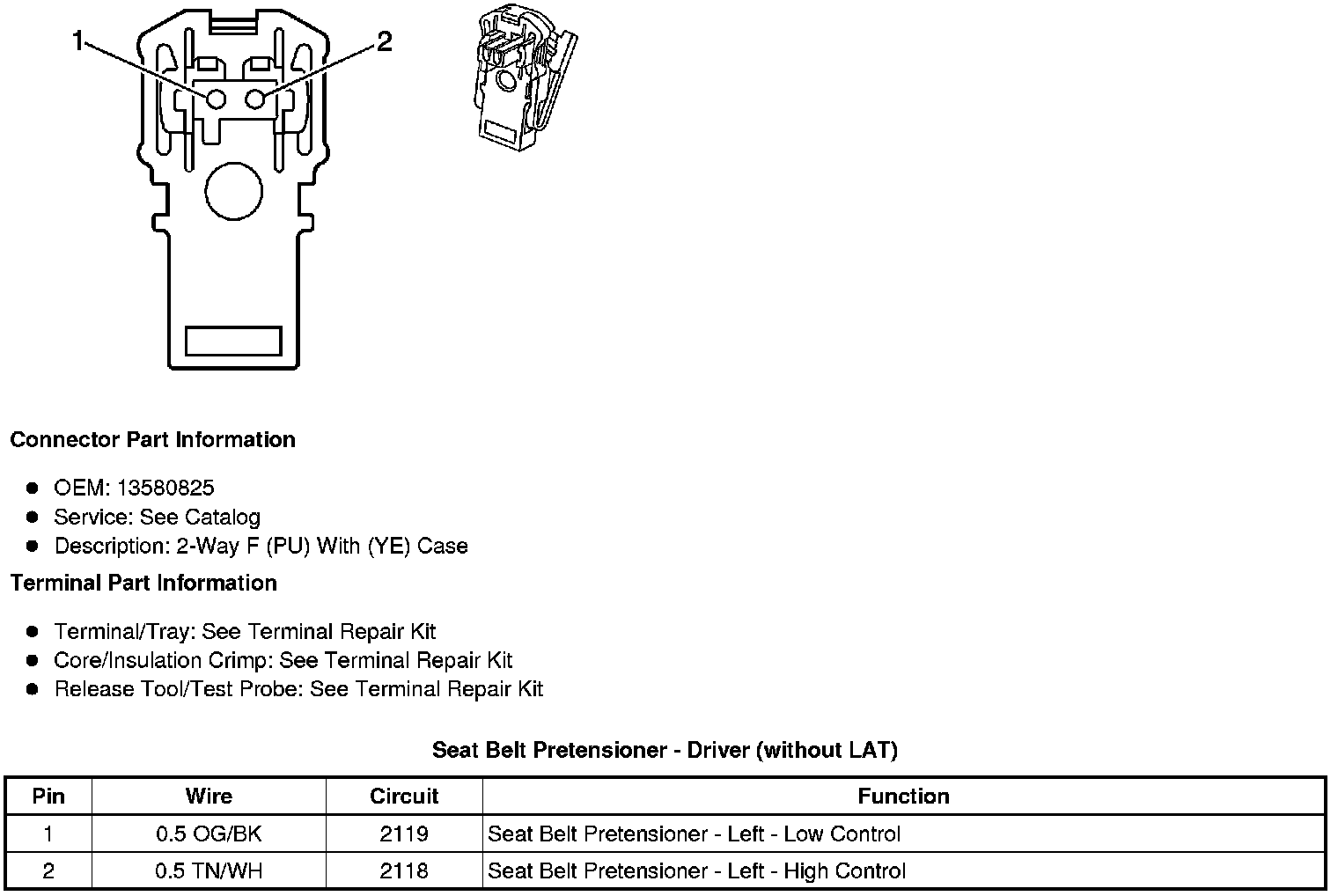

Seat Belt Pretensioner - Driver (without LAT)






Seat Belt Pretensioner - Passenger (without LAT)
