Camshaft Timing Chain and Sprocket Replacement

Camshaft Timing Chain and Sprocket Replacement (LS3)

Special Tools

* EN 46330 - Timing Chain Tensioner Retaining Pin

* J 8433 - Puller Bar

* J 41478 - Crankshaft Front Oil Seal Installer

* J 41558 - Crankshaft Sprocket Remover

* J 41665 - Crankshaft Balancer and Sprocket Installer

* J 41816-2 - Crankshaft End Protector

* J 45059 - Angle Meter

Removal Procedure

1. Remove the oil pump. Refer to Oil Pump, Screen, and Crankshaft Oil Deflector Replacement Service and Repair.




2. Rotate the crankshaft until the timing marks on the crankshaft and the camshaft sprockets are aligned.

Caution:
Do not turn the crankshaft assembly after the timing chain has been removed in order to prevent damage to the piston assemblies or the valves.

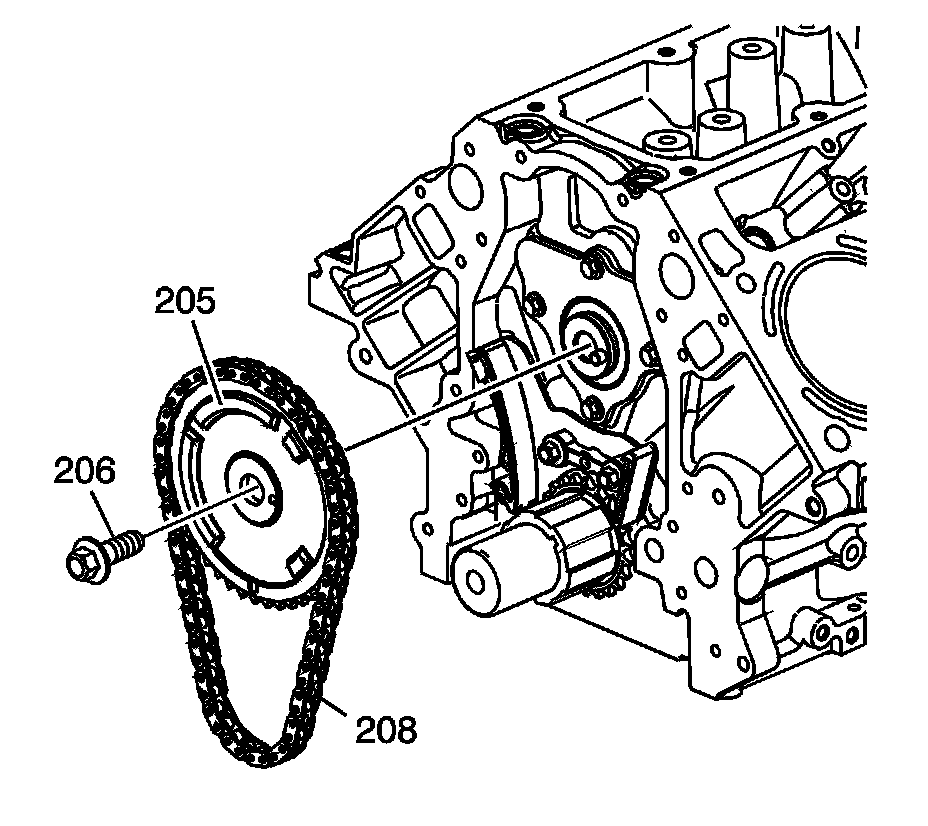

3. Remove the camshaft sprocket bolt (206) and discard sprocket bolt.

4. Remove the camshaft sprocket (205) and timing chain (208).




5. Remove the timing chain tension bolts (231) and tensioner (232).




6. Using the J 41816-2 - crankshaft end protector (1), the J 41558 - crankshaft sprocket remover (2), bolts (3) and the J 8433 - puller bar (4) in order to remove the crankshaft sprocket.




7. Remove the crankshaft sprocket (207).




8. Remove the crankshaft sprocket key, if required.

Installation Procedure




1. Install the key into the crankshaft keyway, if previously removed.




2. Tap the key (122) into the keyway until both ends of the key bottom onto the crankshaft.




3. Install the crankshaft sprocket (207) onto the front of the crankshaft. Align the crankshaft key with the crankshaft sprocket keyway.




4. Use the J 41478 - crankshaft front oil seal installer (1) and the J 41665 - crankshaft balancer and sprocket installer (2) in order to install the crankshaft sprocket. Install the sprocket onto the crankshaft until fully seated against the crankshaft flange.




5. Install the timing chain tensioner (232) and bolts (231).

Tighten the bolts to 30 Nm (22 lb ft).




6. Compress the timing chain tensioner guide and install the EN 46330 - timing belt tensioner retaining pin.





Note:

* The sprocket teeth and timing chain must mesh.

* The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly.

7. Position the camshaft sprocket (205) so the timing mark is in the 6 o'clock position.

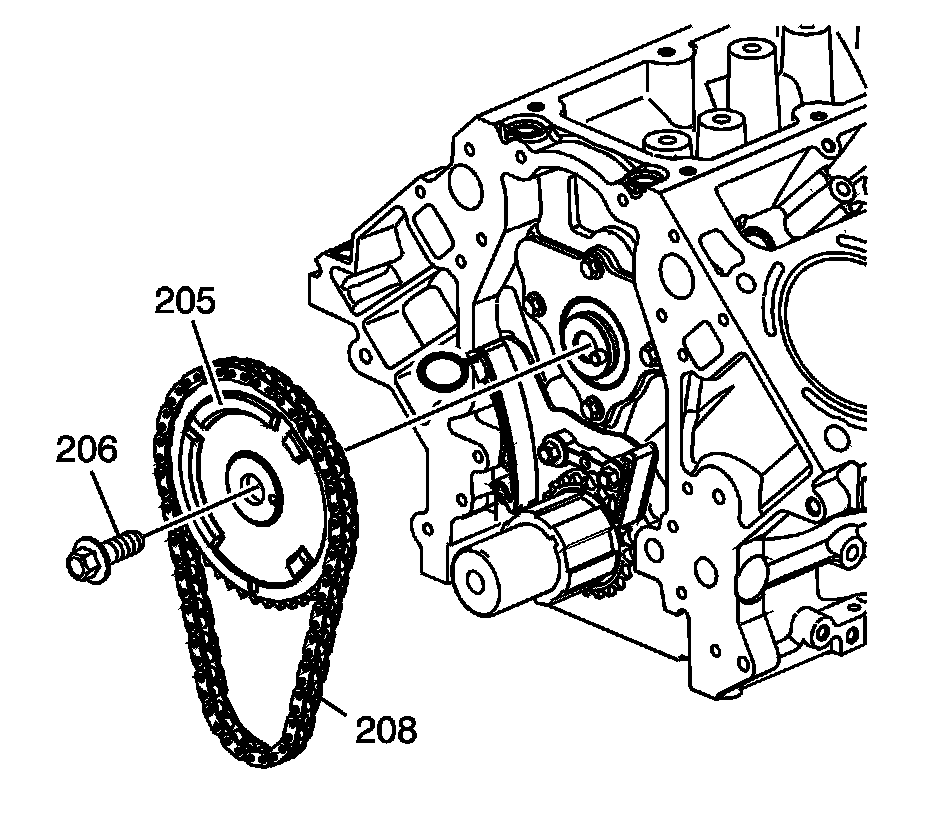

8. Install the camshaft sprocket (205), timing chain (208), and bolt (206).




9. Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the crankshaft sprocket (2) should be located in the 12 o'clock position.




10. Remove the EN 46330 - timing belt tensioner retaining pin.




11. Tighten the camshaft sprocket bolt

Note: Do Not re-use camshaft sprocket bolt. New sprocket bolt must be used.

1. Tighten the bolt a first pass to 75 Nm (55 lb ft).

2. Tighten the bolt a final pass an additional 50 degrees using J 45059 - angle meter.

12. Remove the J 42386-A - flywheel holding tool (1) and bolts.

13. Install the oil pump. Refer to Oil Pump, Screen, and Crankshaft Oil Deflector Replacement Service and Repair.
