Front Wheelhouse Liner Replacement

Front Wheelhouse Liner Replacement


Removal Procedure

Warning:Refer to Safety Glasses Warning .
Danger:To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
1.Remove the front wheel. Refer to Tire and Wheel Removal and Installation .

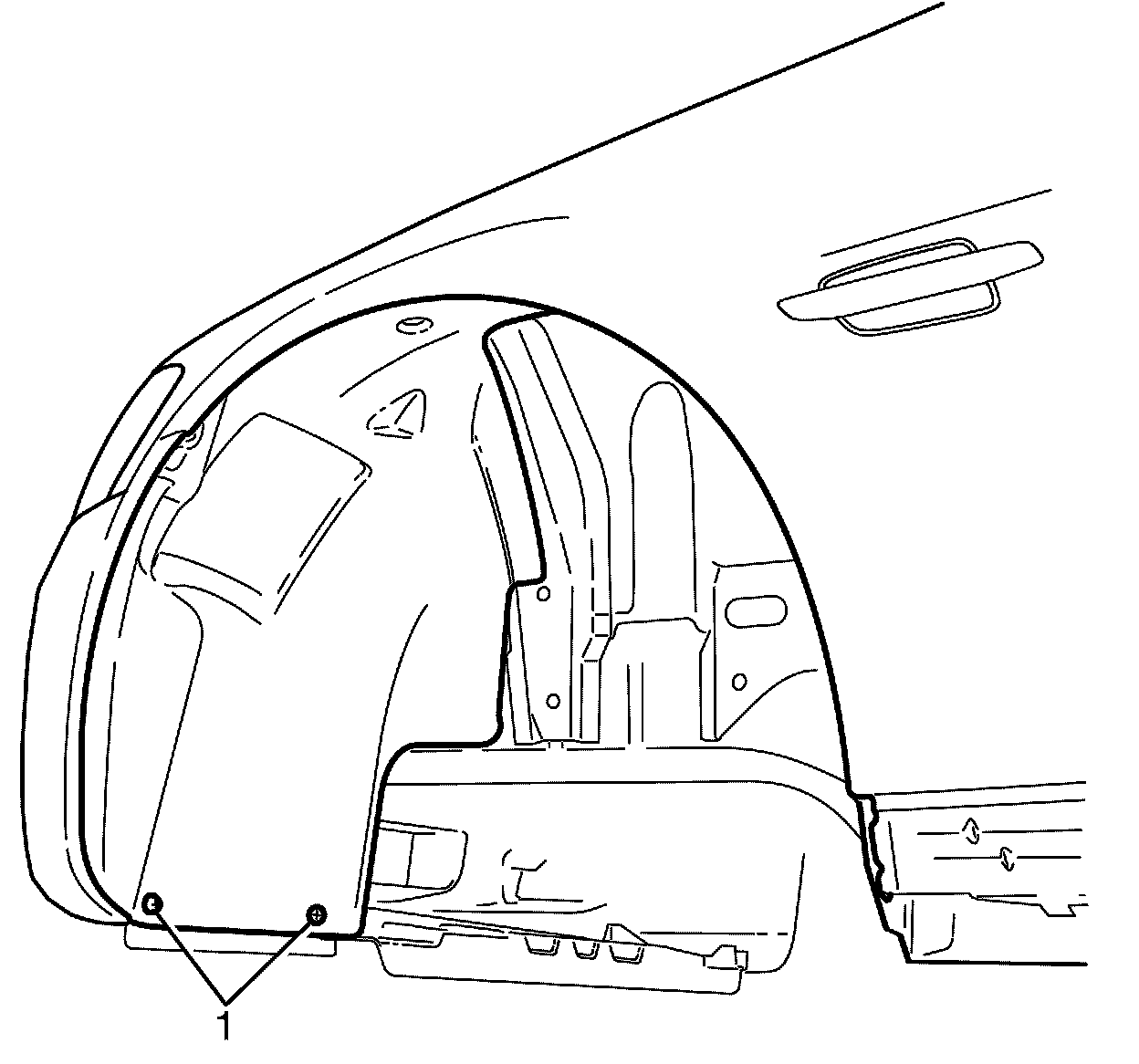

2.Remove the front wheelhouse liner to the front air deflector screws (1).

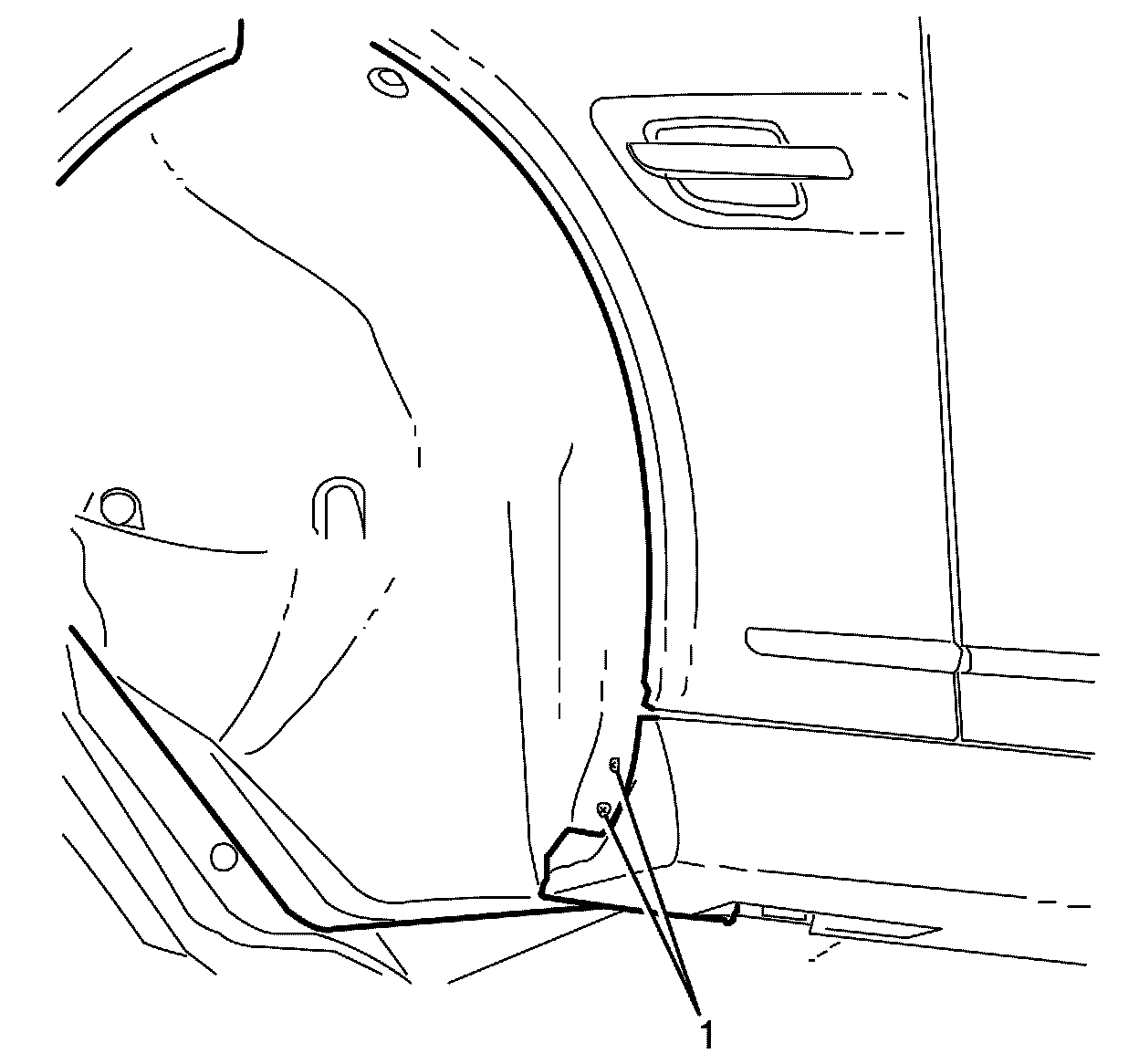

3.Remove the front wheelhouse liner to rocker panel screws (1).





4.Remove the front wheelhouse liner to wheelhouse retainers (1).

5.Remove the front wheelhouse liner from the vehicle.

Installation Procedure

1.Position the front wheelhouse liner to the vehicle.





2.Install the front wheelhouse liner to wheelhouse retainers (1).

Caution:Refer to Fastener Caution .





3.Install the front wheelhouse liner to rocker panel screws (1) and tighten to2 N �m (18 lb in).





4.Install the front wheelhouse liner to the front air deflector screws (1).
