Oil Cooler: Service and Repair

Engine Oil Cooler Replacement

Removal Procedure

1. Remove the engine oil filter. Refer to Engine Oil and Oil Filter Replacement Service and Repair.

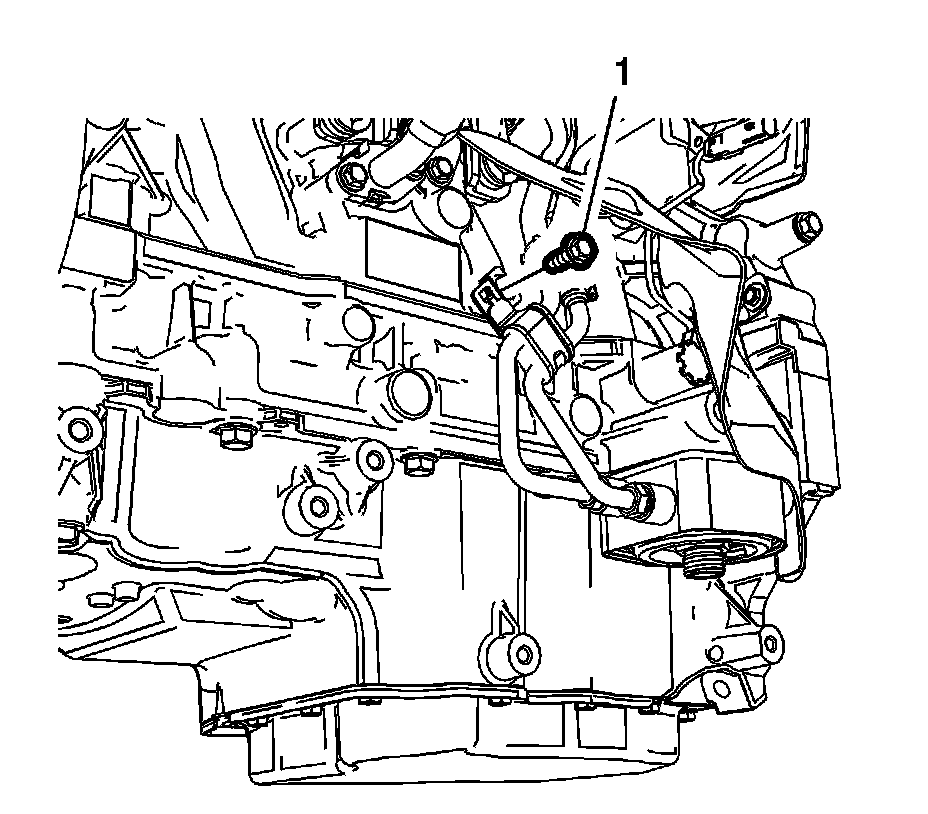

2. Remove the engine oil cooler fastener (1).

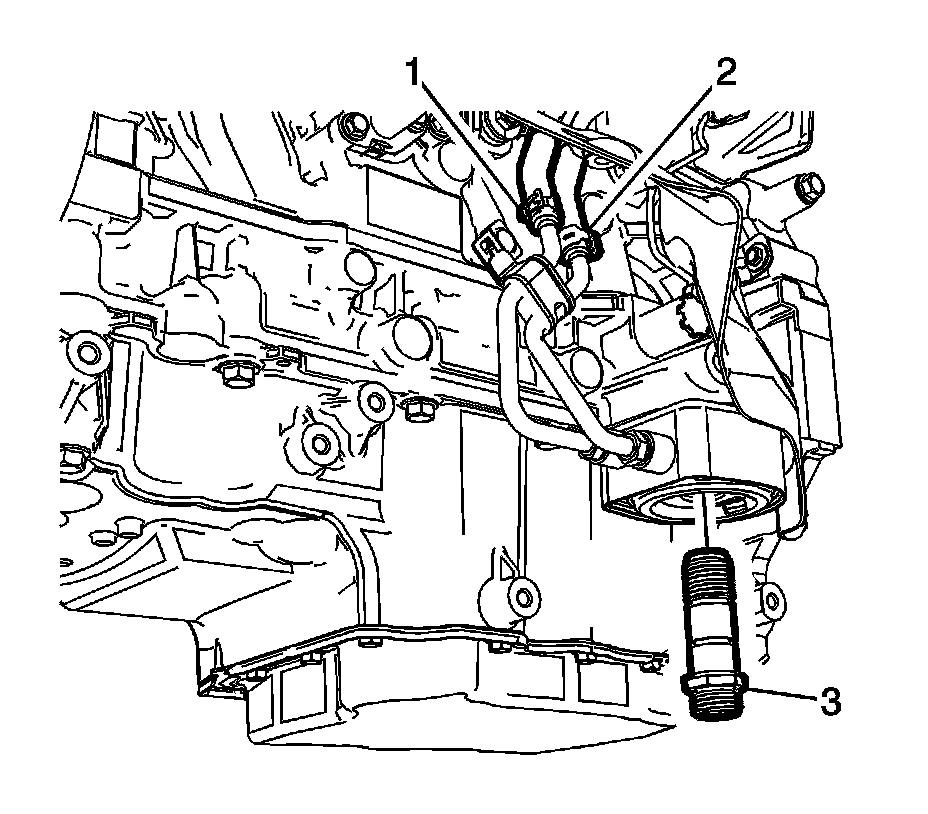

3. Remove the engine oil cooler hose (1) and (2).

4. Remove the engine oil cooler connector (3).





Note: DISCARD the old engine oil cooler seal.

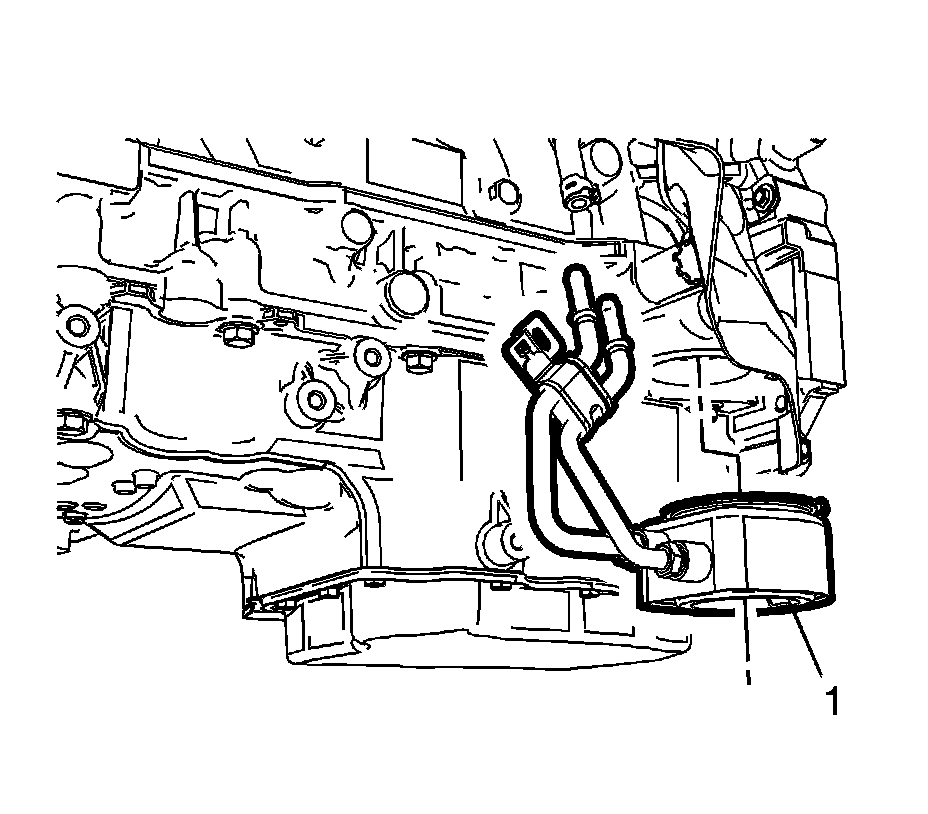

5. Remove the engine oil cooler (1).

Installation Procedure





Note: A NEW engine oil cooler seal must be used whenever reinstalling the engine oil cooler.

1. Install the engine oil cooler (1).





Caution: Refer to Component Fastener Tightening Caution Component Fastener Tightening Caution.

2. Install the engine oil cooler connector (3) and tighten to 50 Nm (37 lb ft).

3. Install the oil cooler hose (1) and (2).

Caution: Refer to Fastener Caution Fastener Caution.

4. Install the oil cooler fastener (1) and tighten to 10 Nm (89 lb in)

5. Install the engine oil filter. Refer to Engine Oil and Oil Filter Replacement Service and Repair.
