Backing Plate: Service and Repair

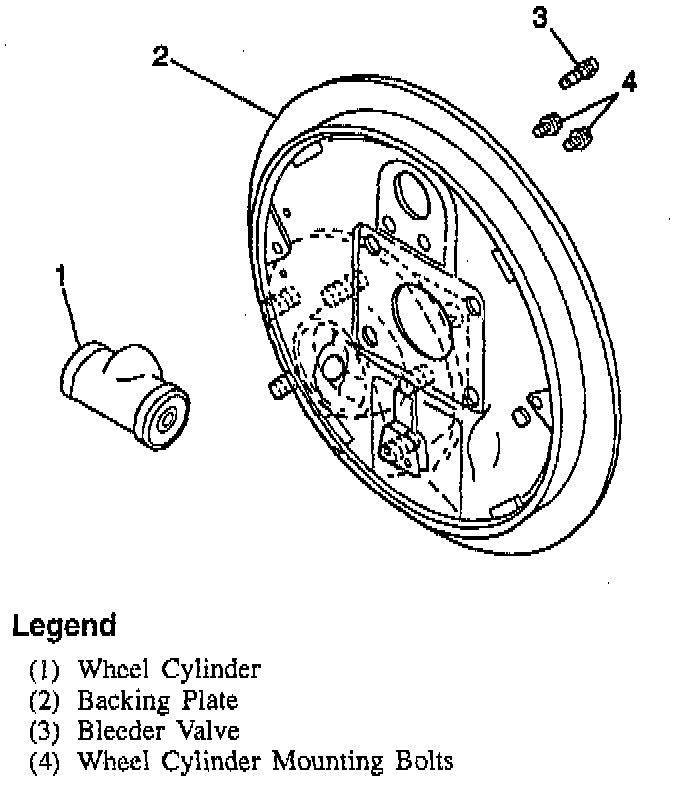

Wheel Cylinder Attachment:

CAUTION: Do not pry against the splash shield or backing plate in attempt to free the drum. This will bend the splash shield or backing plate. A bent backing plate may cause brake chatter and/or pulsation.

Remove or Disconnect
1. Wheel cylinder.
2. Parking brake cable from backing plate.
3. Rear wheel hub. Refer to Steering and Suspension.
4. Backing plate.

Install or Connect
1. Backing plate.
2. Rear wheel hub. Refer to Steering and Suspension.
3. Parking brake cable to backing plate.
4. Wheel cylinder.
5. Bleed the brake hydraulic system. Service and Repair 6. Adjust Brakes. Adjustments
7. Adjust Parking brake.
