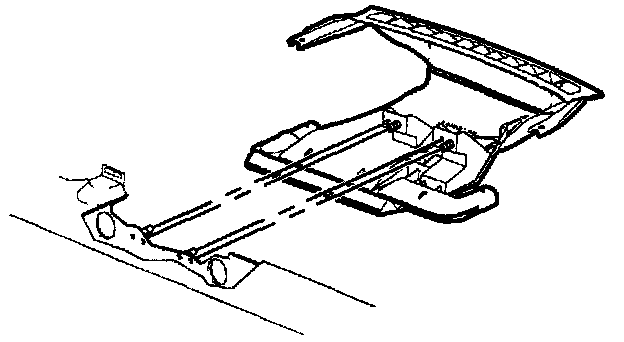

Defroster Duct Replacement

Description:

Remove or Disconnect
1. Instrument panel upper trim.
2. Bolts/screws from defroster duct.
3. Defroster outlet by unsnapping from instrument panel.
4. Defroster duct from instrument panel.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Position defroster duct to instrument panel.
2. Defroster outlets by aligning and snapping in place to secure.
3. Bolts/screws to defroster duct.

Tighten
^ Bolts/screws to 10 N.m (89 lb. in.).

4. Instrument panel upper trim.
