Daytime Running Lamp Control Unit: Service and Repair

Description:

Remove or Disconnect
1. Battery ground (negative) cable.
2. Instrument panel insulator.

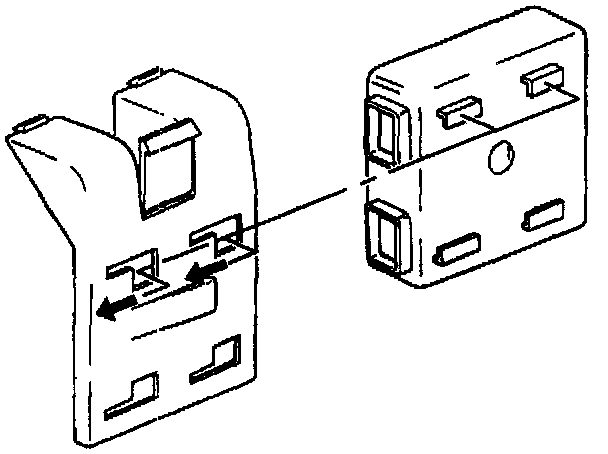

3. Slide daytime running lamp module from bracket.
4. Electrical connectors.

Install or Connect
1. Position daytime running lamp module in bracket and slide to secure.
2. Electrical connectors.
3. Instrument panel insulator.
4. Battery ground (negative) cable.
