Vent Hose Replacement

REMOVAL PROCEDURE

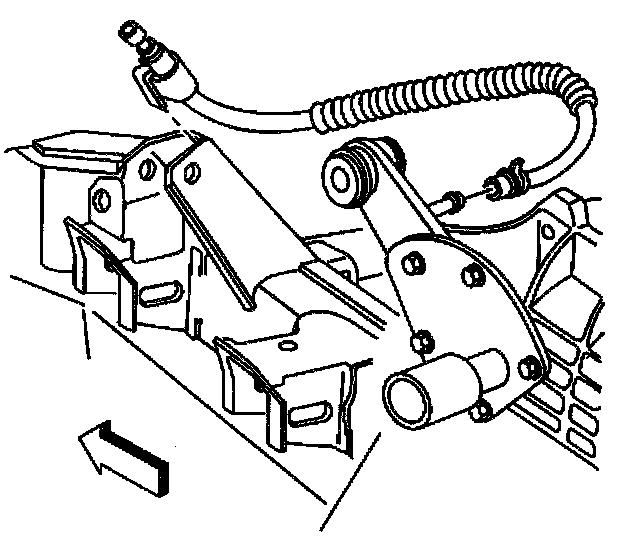

1. Remove the vent hose from the frame.
2. Remove the vent hose from the front axle.

INSTALLATION PROCEDURE





1. Install the vent hose to the front axle.

IMPORTANT: When replacing the hose, do the following:
^ Route the hose the same way as the original
^ Make sure the hose is free of kinks
^ Route the hose away from sharp objects

2. Install the vent hose to the frame.
