Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Vehicle Speed Sensor W/ Cruise Control
Vehicle Speed Sensor W/ Cruise Control

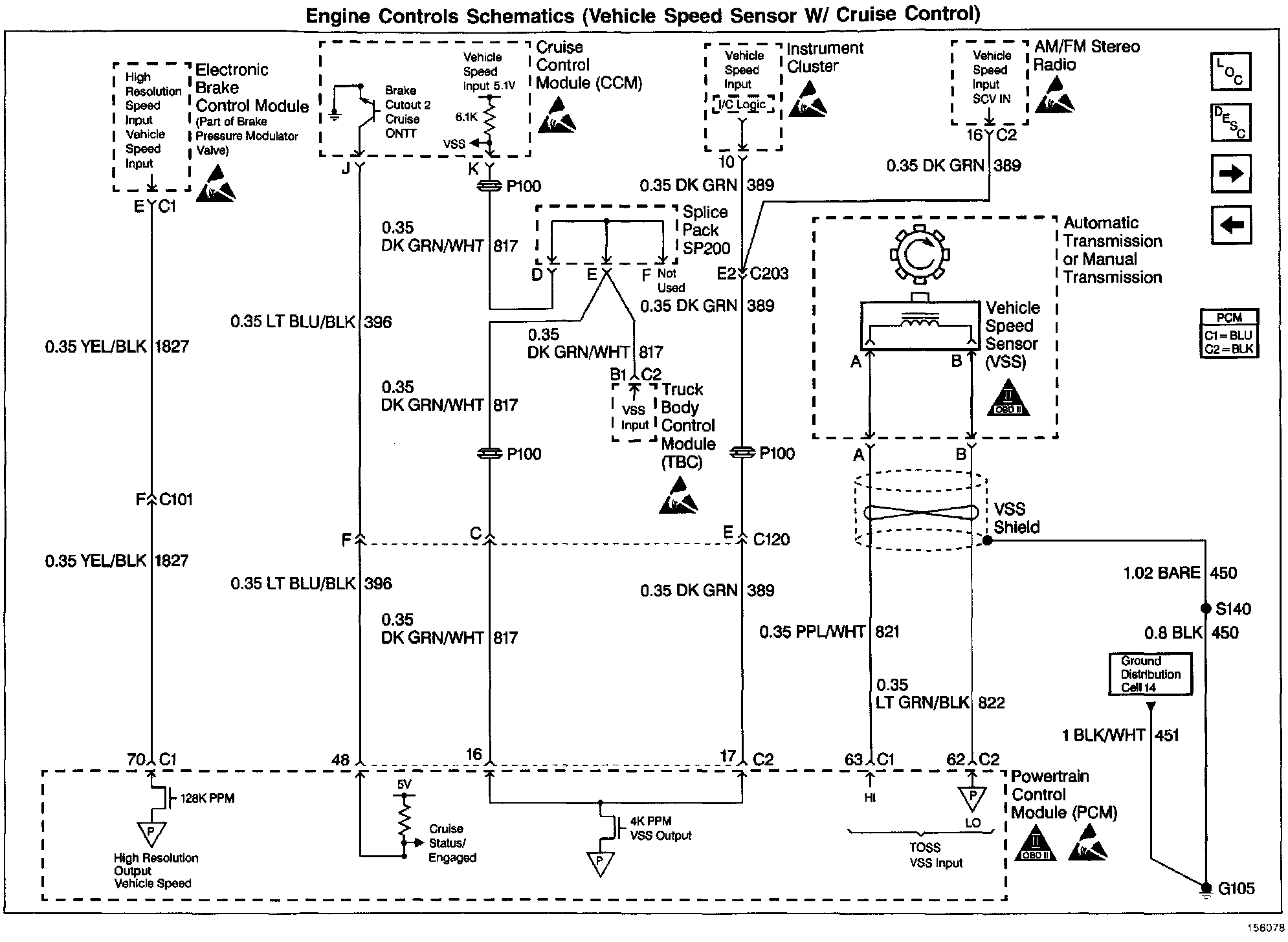

Wiring Diagram:
Wiring Diagram:
