Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1998
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Vehicle Speed Sensor W/O Cruise Control
Vehicle Speed Sensor W/O Cruise Control

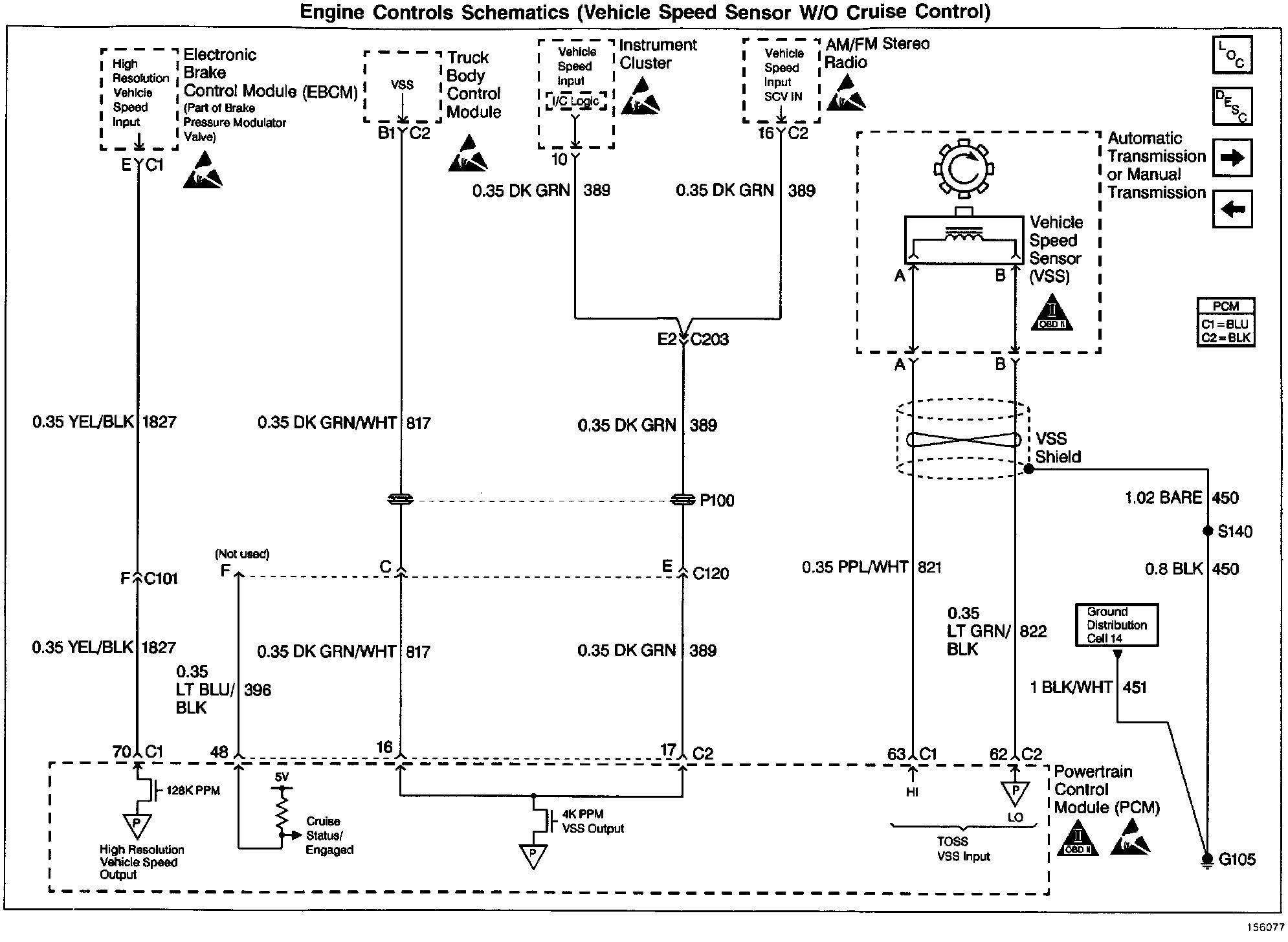

Wiring Diagram:

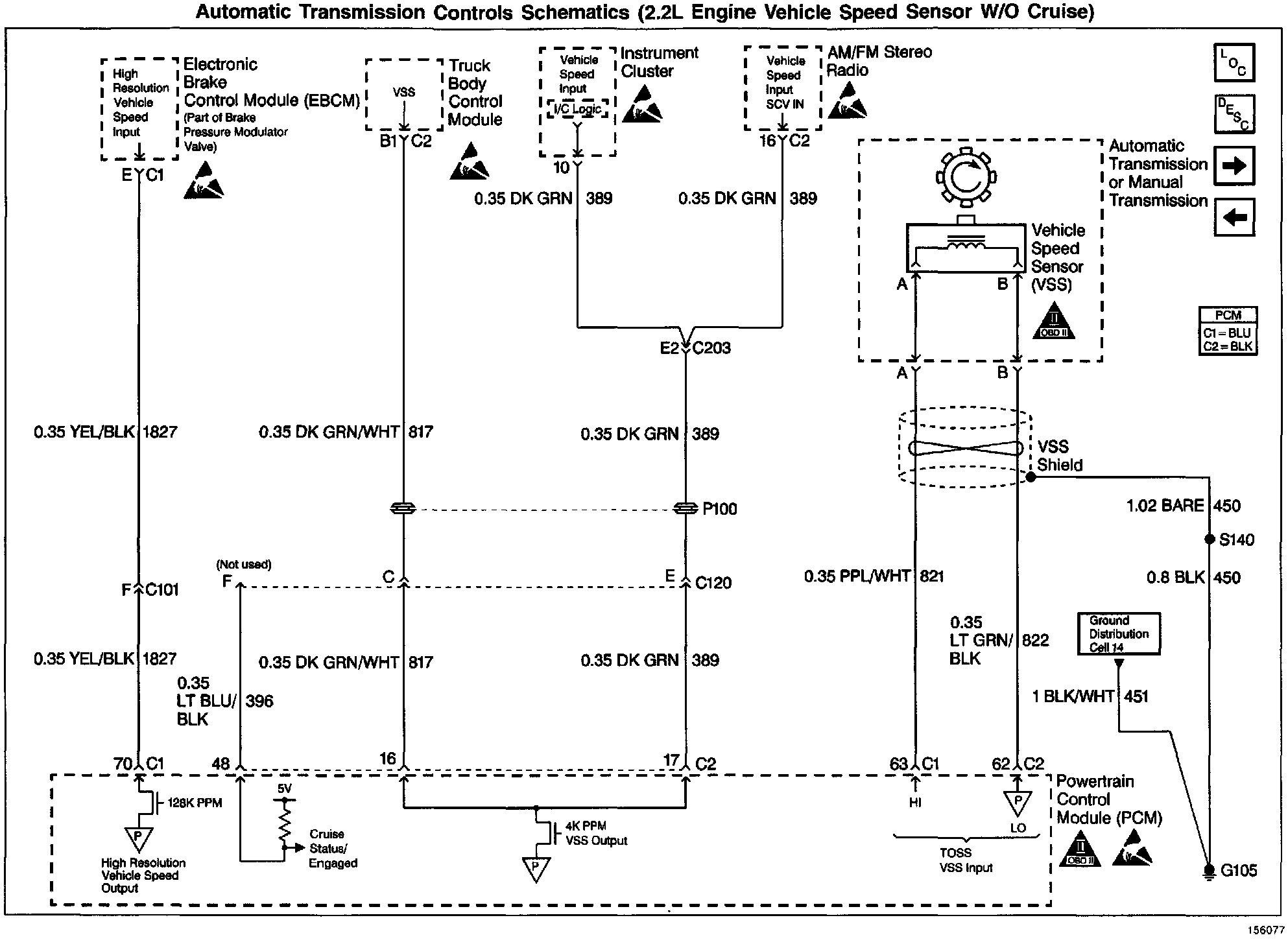

Wiring Diagram:
