Wiper Blade Element Replacement

REMOVAL PROCEDURE

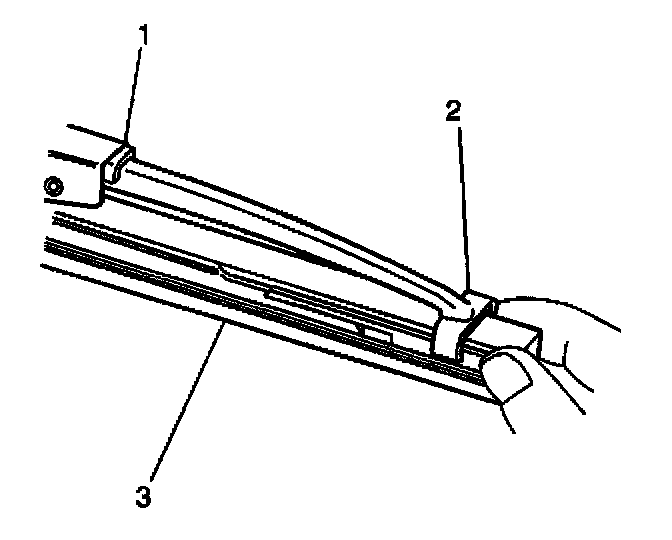

1. Lift the rear wiper blade rubber tip in order to clear the retaining tab (2).
2. While lifting the rubber tip, slide the blade rubber (3) out of the rear wiper blade assembly (1).

INSTALLATION PROCEDURE
Slide the rear wiper blade rubber (3) completely through the rear wiper blade assembly (1) until the blade rubber (3) snaps into place and locks.
