AT Range Selector Cable Bracket Replacement

REMOVAL PROCEDURE

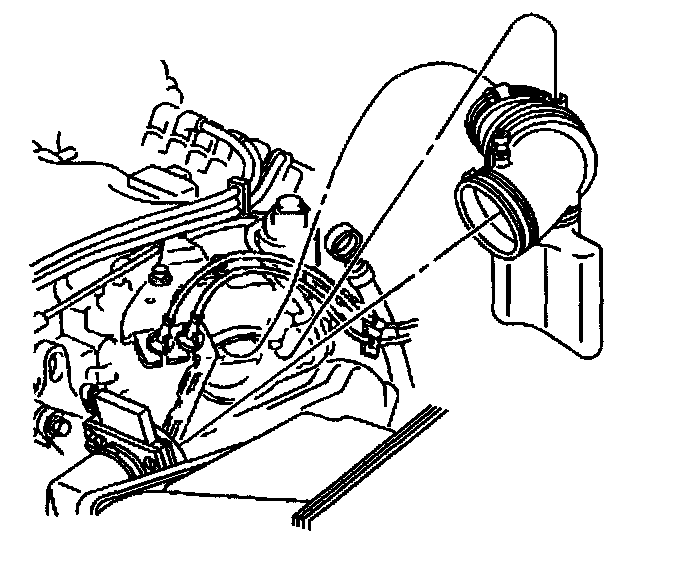

1. Remove the throttle body air inlet duct.
2. Remove the automatic transaxle range selector cable from the automatic transaxle range selector lever.
3. Remove the automatic transaxle range selector cable from the automatic transaxle range selector cable bracket.

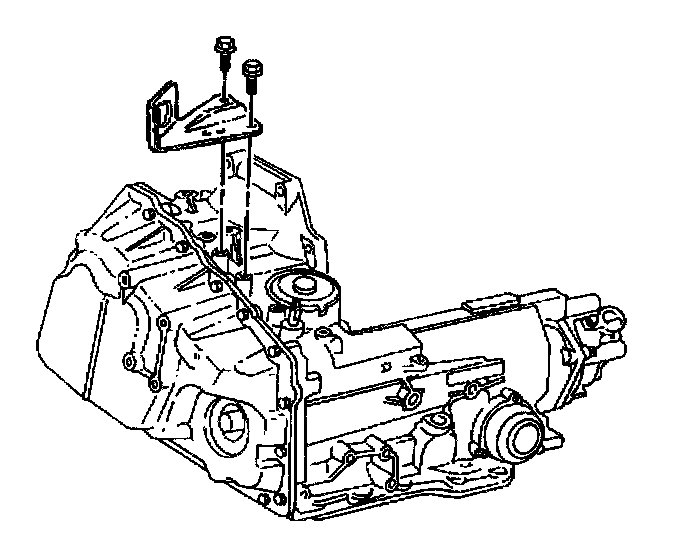

4. Remove the automatic transaxle range selector cable bracket bolts.
5. Remove the automatic transaxle range selector cable bracket.

INSTALLATION PROCEDURE





1. Install the automatic transaxle range selector cable bracket.

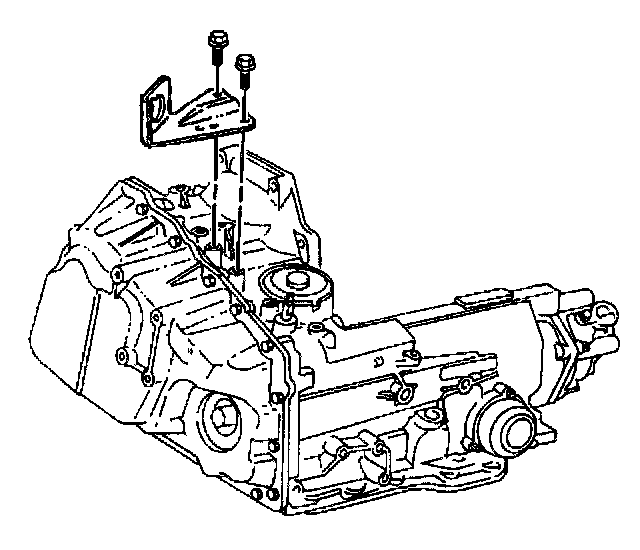

2. Install the automatic transaxle range selector cable bracket bolts.
^ Tighten the automatic transaxle range selector cable bracket bolts to 25 Nm (18 lb ft).

NOTICE: Refer to Service Precautions in Service Precautions.

3. Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
4. Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.
5. Adjust the automatic transaxle range selector cable if necessary.





6. Install the throttle body air inlet duct.
