Wiper Motor Cover Replacement

REMOVAL PROCEDURE
1. Remove the wiper motor from the vehicle.

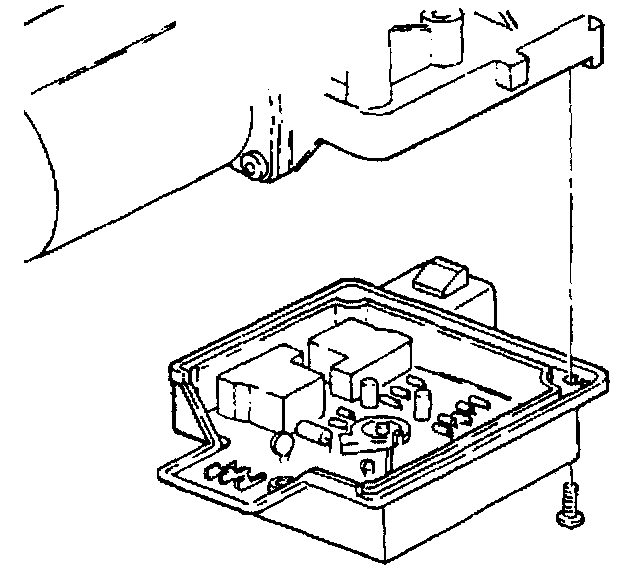

2. Remove three screws and the wiper motor cover from the wiper motor.

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Cautions and Notices.

1. Install the wiper motor cover onto the wiper motor with three screws.

Tighten
Tighten three screws to 2 N.m (18 lb in).

2. Install the wiper motor onto the vehicle.
3. Operate the wipers and check for proper operation.
